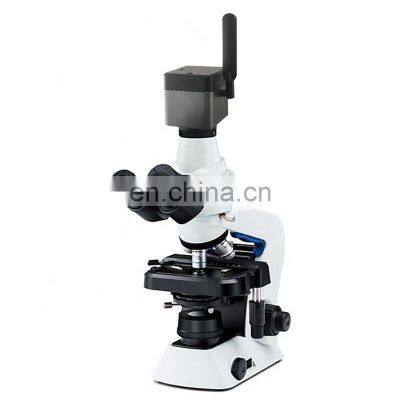

KASON A12.1037-T New LED light Trinocular advanced biological Laboratory Microscope

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

KASON A12.1037-T New LED light Trinocular advanced biological Laboratory Microscope

Product Description

Application:

A13.0215 Differential Interference Contrast Microscope is suitable to observe many different kinds of object. It is equipped with transmitted illuminator and reflected DIC system, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizer device. It provides clear and 3D image, beautiful sculpt, convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy, precision engineering, electronics, etc. Features

--DIC, Bright Field/Dark Field, Polarizing Observation Available
--Excellent UIS optical system can obtain excellent optical performance.
--Compact and steady main frame body is embodiment for the shock resistance.
--The large-mobile range mechanical stage is adapted to observation big size specimen or quick check.
--Modularization function design so that update system expediently
--Ideal ergonomic design is adopted in this unit and have easier operation and wider space

Specifications

A13.0215	A13.0215-BD
Head	Trinocular Head, 30° Inclined, Interpupillary Distance 53~75mm
Eyepiece	WF10x/22mm Plan Eyepiece
Nosepiece	Backward Quintuple Nosepiece, Ball Bearing Inner Locating
Objective	Infinity LWD Plan Achromatic Coverless PL5x/0.12, W.D.26.1mm PL10x/0.25, W.D. 20.2mm PL20x/0.40, W.D.8.8mm PL50x/0.70, W.D. 3.68mm (S) PL80x/0.80, W.D.1.28mm (S,O)	BD Infinity LWD Plan Achromatic Coverless PL5x/0.12, W.D.29.7mm PL10x/0.25, W.D. 9.3mm PL20x/0.40, W.D.7.23mm PL50x/0.70, W.D. 2.50mm (S) PL80x/0.80, W.D.1.25mm (S,O) (Optional)
Working Stage	Large Mechanical Stage 280270mm, Moving Range 204204mm
Focusing	Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper, Minimum Division 0.8um
Polarizing	Polarizer Enable 360° Rotate ANd Switched In/Out Analyzer Can Be Switched In/Out
Light Source	12V50W Halogen Lamp, Brightness Adjustable
DIC	DIC Push/Pull Slids, DIC Objetives 5x,10x,20x

A13.0215 DIC BD Metallurgical Microscope Optional Accessories
Eyepiece	WF10x/22mm Dividing Eyepiece	A51.0205-G10B
Eyepiece	Retical Eyepiece, WF10x/20mm, Micrometer Div 0.1mm	A51.0205-10
Infinity LWD Plan Achromatic Coverless Objective	PL40x/0.6, W.D.3.98mm	A5M.0235-40
	PL60x/0.75, W.D.1.22mm	A5M.0235-60
	PL100x/0.85, W.D.0.4mm, Dry	A5M.0235-100
Working Stage	Large Mechanical Stage 250230mm, Moving Range 154154mm	A54.0205-18
Adapter	CCD Adapter 0.5x	A55.0202-04
	CCD Adapter 1.0x	A55.0202-02
	CCD Adapter 0.5x With Dividing 0.1mm/Divv	A55.0202-03
	Digital SLR Camera Adapter for Canon EF Series	A55.0204-02

Please contact KASON directly for best quotation
