Product Description

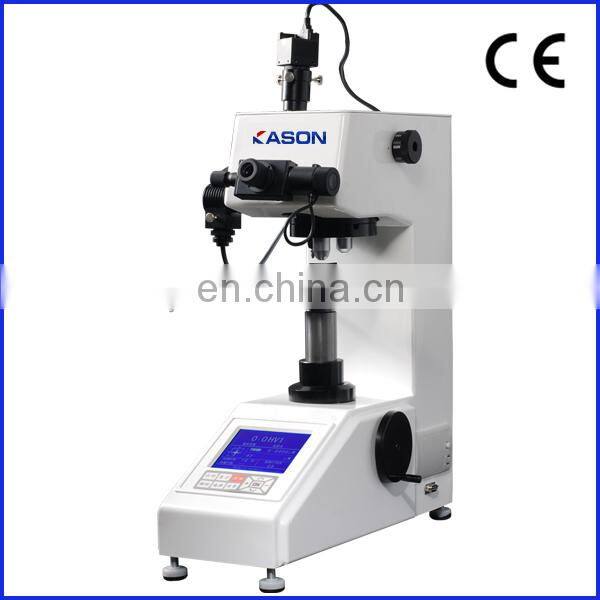

HVS-1000Z LCD Portable Automatic Auto-motorized turret Micro Vickers Hardness Tester and Vickers Hardness Tester for Metal
1. Application :
Fully Automatic Micro Vickers Hardness Test System is mainly used to test the micro Vickers hardness values for various metals and some non-metals materials. It is suitable to test hardness value for various parts such as machining parts, forging parts, cast iron and cast steel; non-ferrous metals and parts after heat treatment, etc. At the same time, it is also fit for testing the depth of effective hardened layers, coating layers and heat affected area of welding parts. Besides, it is used to observe the metallurgical structure inside the various kinds of metal parts and capture its images, display and print output, specially fit to test out the distribution curves of hardness gradient for work-pieces.
2. Main Functions:
Test table moves in Z axis direction automatically and image of indentation will be focused automatically as well.
Motorized turret with 2 different objectives 10X & 40X , it can scan the profile of specimen in larger range with lower amplification or accuracy measure the hardness value with higher amplification according to requirement.
The system can be used in whole or separate, it is very flexible.
With built-in step motor to control the position of automatic test table, press the mouse to control, the system has multiple controlling models; therefore it is with high position precision, good repeatability precision, fast moving speed and high working efficiency.
The software can control the hardware operation of the hardness tester, they may communicate each other.
The automatic position test table may move in double directions and equips up a safe device t o avoid the damage to the tester caused by error operations.
The image capturing device with fast reflecting speed, high automatic measuring accuracy and good repeatability improves the efficiency and precision of hardness test.
The thin test line with 1 pixel, measures fine test precision even when manually test.
3. Technical Specifications :
Test force | 0.3Kgf(2.94N),0.5Kgf(4.9N), 1.0Kgf(9.8N), 3.0Kgf(29.4N), 5.0Kgf(49.0N) , 10Kgf(98.0N) |
Measuring range | 8HV~2900HV |
Test Force Loading method | Automatic loading and unloading |
Objective & indenter conversion | motorized turret (automatically shift among the status of objective, indenter) |
Microscope magnification | 200X(Testing) 100X(Observation) |
Min. test unit | 0.0625µm |
Dwell time | 0~60S(Per second as a unit, any type) |
Max. Test Height | 160MM |
Distance between distance and outer arm |
135mm |
Power | AC220V+5%,50-60Hz |
Size | L*W*H(520*190*650)mm |
Weight | 40Kg |
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
