HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester

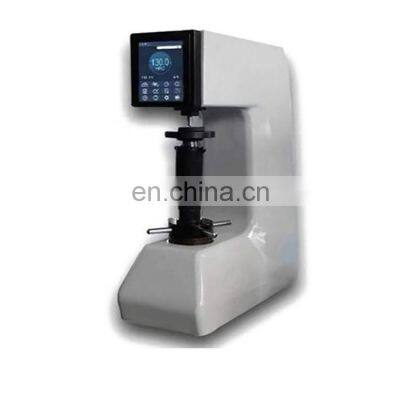

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester photo-1

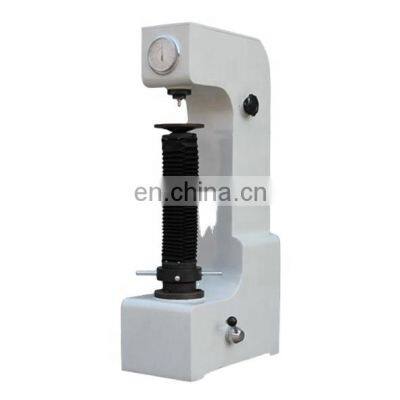

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester photo-2

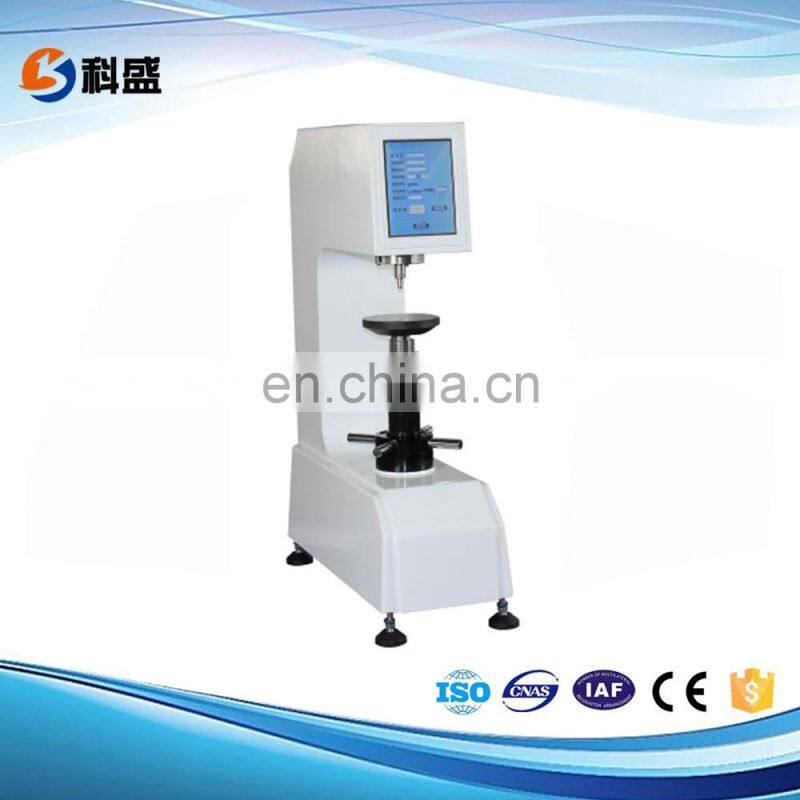

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester photo-3
HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester photo-4
HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2016
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

        HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester /

                             Rockwell Diamond Indenter for Hardness Tester

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester



Product Description

1. Main Features:

  HR-45 150D Digital Rockwell, Superficial Rockwell hardness tester is to use sensors

closed - loop  control  technology,  the  contour  novel,  the  function  is  all  ready,    and

convenient operation, the show clear, stable performance, is a collection of mechanical

and electrical in the integration of high - tech products,  los's,  surface los's, plastic los's

all staffs hardness testing.




2. Technical Specifications:

Product name

HR-45 150D Digital Rockwell and Superficial Rockwell Hardness Tester / Rockwell Diamond Indenter for Hardness Tester

Model

HR-45/150D

Conversion Scale

Rockwell, Brinell, Vickers

Indication of Hardness Value

Large LCD screen display

Max Height of Specimen

175mm

Data output

Inside Printer, RS-232

Duration time

0-60s

Carried Standard

GB/T230.1 GB/T23.2 Chinese Standard,

JJG112 Inspection Rule

Distance of Indenter to outer wall

160mm

Preliminary Rockwell Testing force

10kgf(98N)

Total Rockwell testing force

60kgf(588.4N) 100kgf(980.7N) 150kgf(1471N)

Preliminary Superficial Rockwell

Testing force

3kgf(29.4N)

Total Superficial Rockwell Testing

force

15kgf(147.1N) 30kgf(294.2N) 45kgf(441.3N)

Measuring Scale

HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100  HRK:40-100  HRL:50-115  HRM:50-115 HRR:50-115

Power supply

AC220V+5%,50-60Hz

Overall Dimension (mm)

520*240*720mm

Net weight

About 70kg
