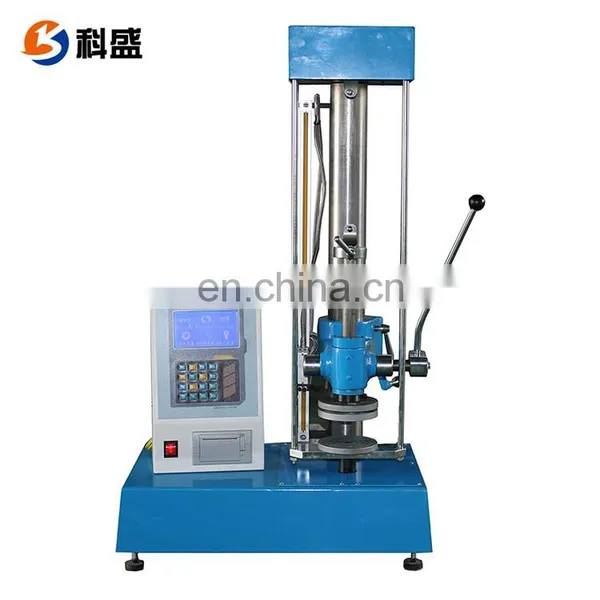

TLS-200 Manual Digital Spring Tensile Tester Testing Machine/Cement Testing Instrument
1. Application:
This machine is based on the country's spring and compressive tester standards of technical requirement is made, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Can the compression spring, dish above precision extension spring, spring, spring, leaf-spring tower, card of spring, spring, spring, composite, gas springs, die spring, and special spring precision tension of the spring, stress, displacement, stiffness and strength test and analysis.
2. Main specification:
Model |
TLS-S |
|||||
Max test froce(N) |
50 |
100 |
200 |
500 |
1000 |
2000 |
Test froce accuracy(N) |
0.005 |
0.01 |
0.02 |
0.05 |
0.1 |
0.2 |
Displacement accuracy (mm) |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
|
Tensile test max distance between two pressure plate(mm) |
220 |
220 |
220 |
220 |
270 |
270 |
|
Compression test max distance between two pressure plate(mm) |
220 |
220 |
220 |
220 |
270 |
270 |
Plate size(mm) |
60 |
60 |
60 |
60 |
110 |
110 |
TLS Series Manual Digital Spring Tester/ Testing Machine
Factory
Cooperative Partners
Contact information:
Skype : kason006
Tel : +86-531-86113769
Fax :+86-531-86113759
Mobile: +86-15069028022
We have manufactured and exported all kinds of testing machines with CE certificate for 10 years. such as:
electric / hydraulic universal testing machine/ compression testing machine/ tension testing machine / Manual Digital Spring Tensile Tester Testing Machine/Cement Testing Instrument etc.
