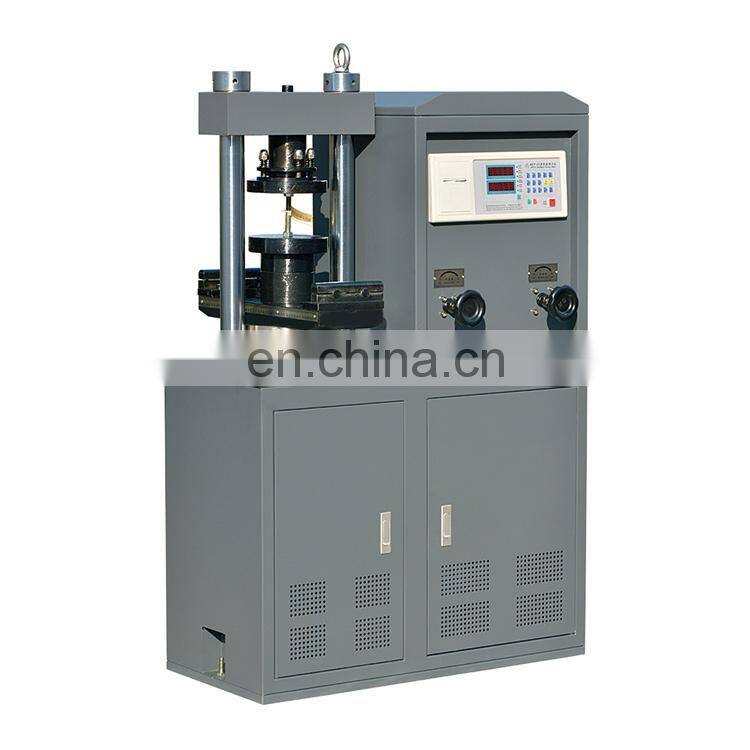

300KN Digital Display Concrete Unconfined Compression Strength Testing Machine Price
Main Application:
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.

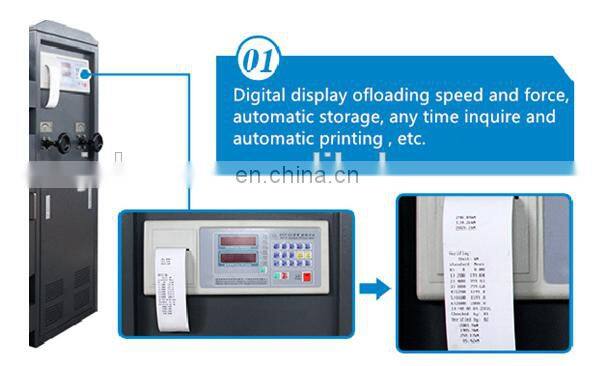

Feature: The test data is not only could displayed on LCD directly, but also could be displayed on computer screen.
Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test force exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
Main Technical Parameters:
| Model | YES-100 | YES-200 | YES-300 |
| Max. Load | 100KN | 200KN | 300KN |
| Range of test force | 4-100kN | 8-200kN | 12-300kN |
| Test space adjusting mode | Block adjustment test space | ||
| Control mode | Manual control loading process | ||
| Value repeatability error | ≤±1% | ||
| Loading speed | 0.3KN/S~10KN/S | ||
| Loading speed error | ±5% | ||
| Power supply | Main unit AC380V±10%,control system 220V±10%, 0.75Kw | ||

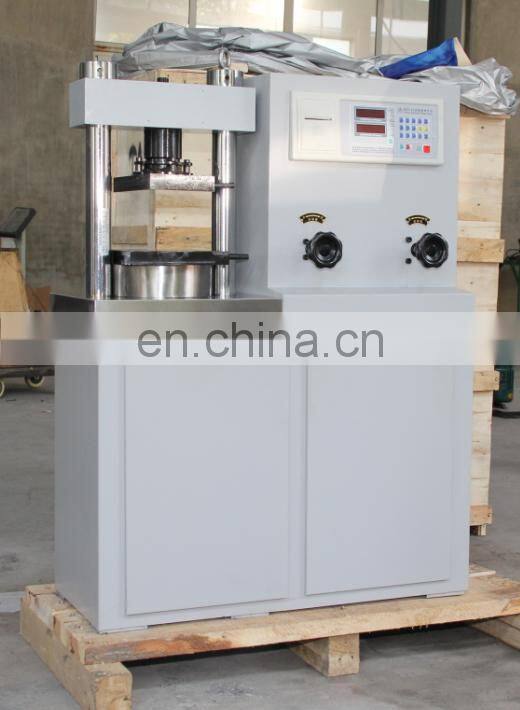

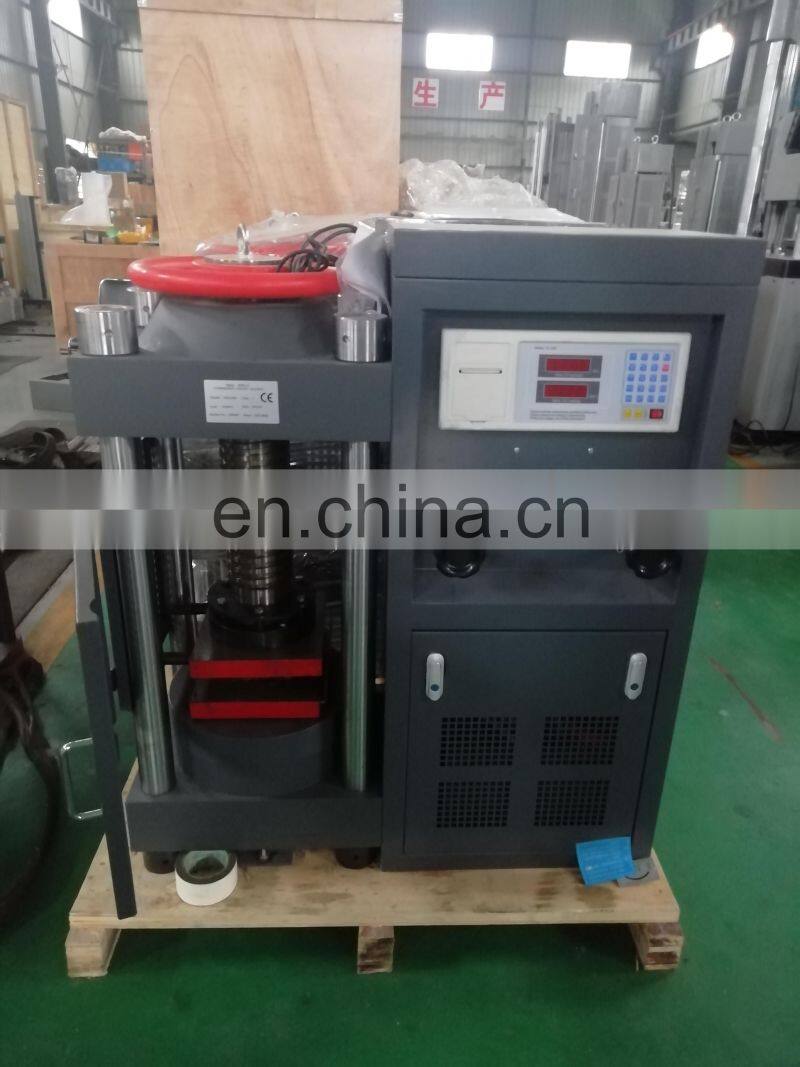

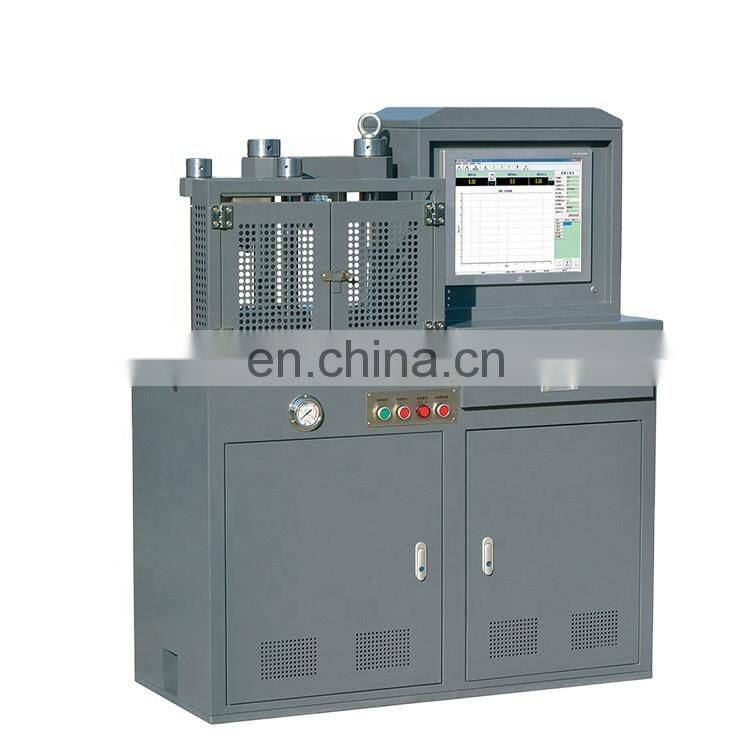

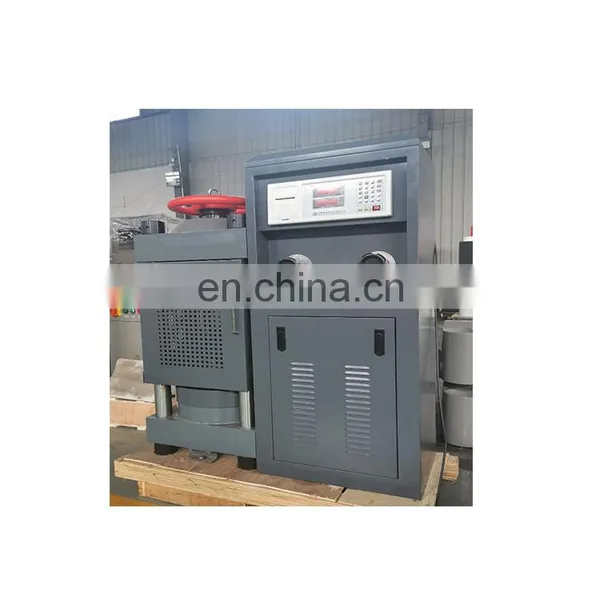

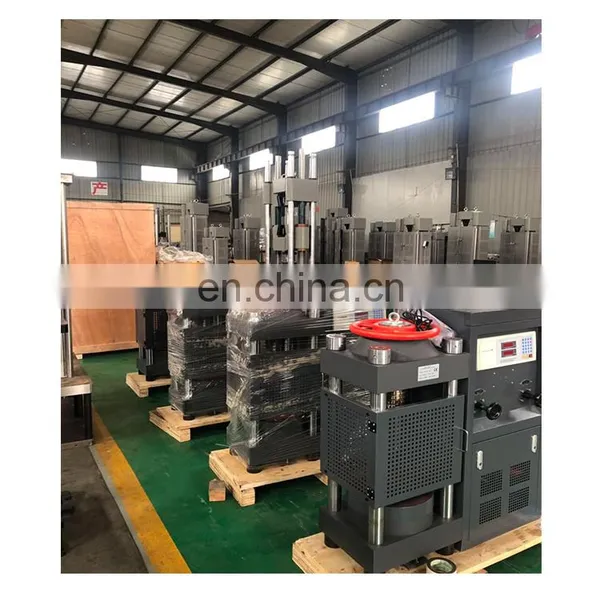

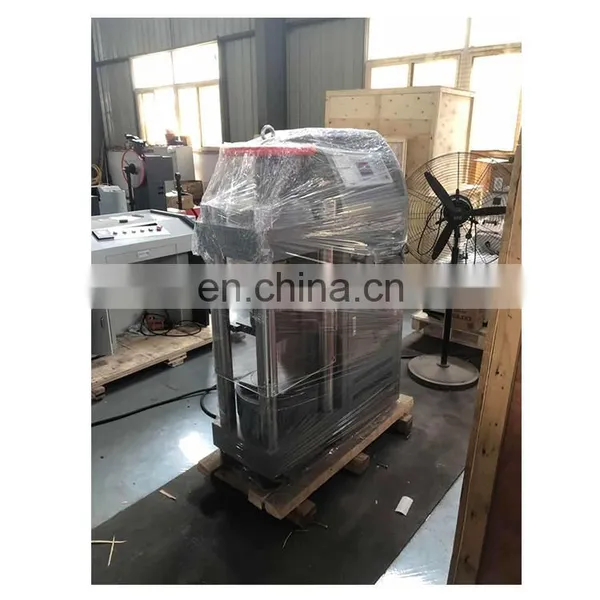

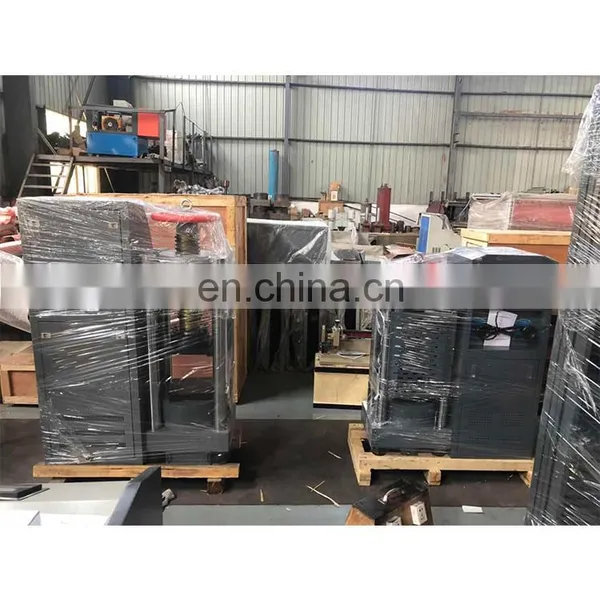

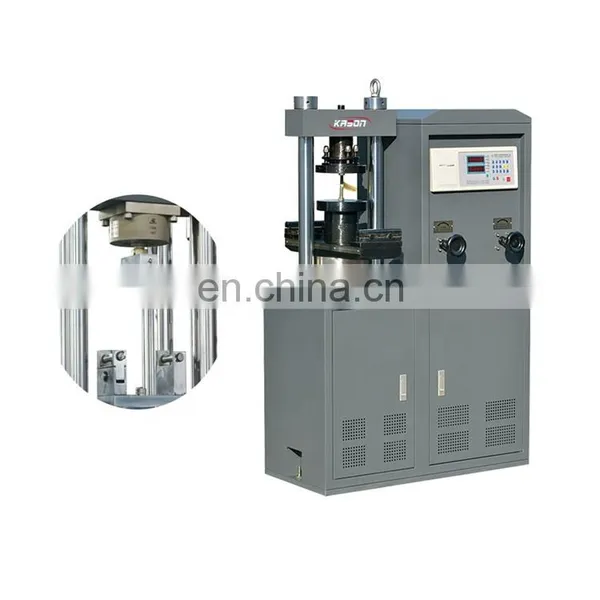

Product pictures:
|
|
|
Related products:
|
|
|
|

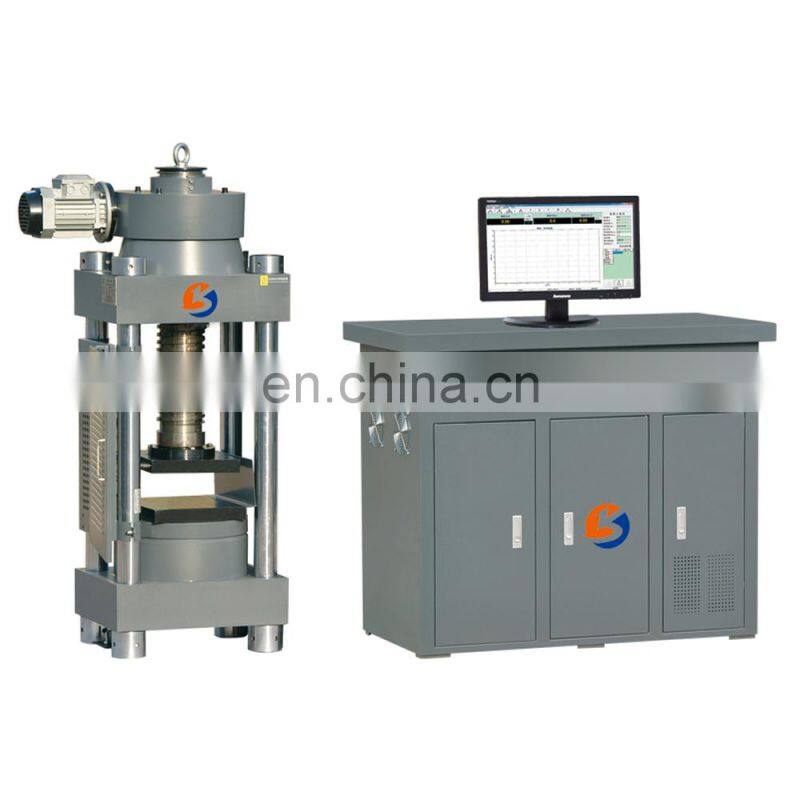

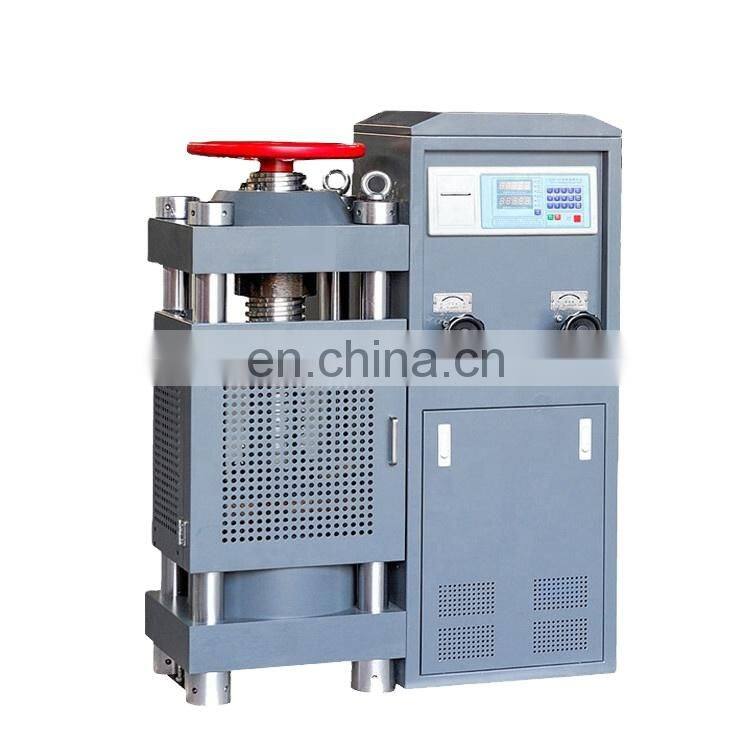

| YES-1000/2000 Digital display compression tester | YAW-300C | YAW-2000D |
Jinan Kason. is specialized in developing and manufacturing testing equipments for metal ,non-metal and composite materials with all kinds of testing standards of GB,ISO,ASTM,BS, EN etc.
Our main products contains the followings with CE and ISO certifications:
Tensile Testing Machine, Electronic Universal Testing Machine, Hydraulic Universal Testing Machine, Impact Testing Machine, Compression Testing Machine, Torsion Testing Machine, Metallographic process equipment, Hardness teaster etc.
We sincerely welcome customers from home and abroad to visit us, let's make progress together and reach win-win cooperation!
