Home > Products > Impact Testing Machine > Kason testing machines specimen notch measuring profile projector izod impact

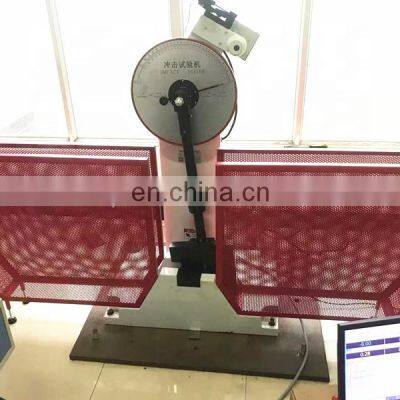

Kason testing machines specimen notch measuring profile projector izod impact
- 1000 per Month
- T/T Credit Card
You May Like
-
Kason iso148 pendulum tester for charpy impact
-
Kason digital charpy u v notch projector pendulum for impact tester
-
Kason digital iso148 tester charpy izod impact test
-
Kason 300j u v notch pendulum impact tester projector for charpy specimen
-
Kason tester manufacturer impact projector for charpy specimen
-
Kason sale pendulum for iso148 charpy impact tester
Product Description
JB-500B Semiautomatic High Precision Charpy Pendulum Impact Tester Equipment Sale Price For Charpy
Technical Specifications:
Model | JB-300B | JB-500B | JB-750B | |
Impact Energy | 300 J , 150 J | 500 J , 250 J | 500 J / 750 J | |
Control Methods | Electric Control | |||
The Distance Between The Pendulum Shaft And Impact Point | 750 mm | 800 mm | ||
Minimum Reading Value | 1 J | 2 J | ||
Impact Speed | 5.2 m/s | 5.4 m/s | 5.9 m/s | |
Pre-rising Angle Of The Pendulum | 150° | |||
Specimen Bearer Span | 40+0.2 mm | |||
Round Angle Of The Jaw | R 1.0~1.5 mm | |||
Round Angle Of Impact Edge | R 2.0~2.5 mm (Special Order: R8±0.05 mm) | R2.0-2.5 mm, R8.0±0.05 mm | ||
Thickness Of Impact Blade | 16 mm | |||
Angle Accuracy | ±0.1° | |||
Pendulum Torque | M=160.7695N.m 80.3848N.m | |||
Impact Pendulum Configuration | 150 J, 1 PC; 300 J, 1 PC | 250 J, 1 PC; 500 J, 1 PC | 500 J, 1 PC; 750 J, 1 PC | |
Standard Specimen Dimension | 10 mm * 10 (7.5 or 5) mm * 55 mm | |||
Power Supply | 3phs, 380V, 50Hz | |||
Dimensions | 2124mm * 600mm * 1340mm | 2450mm*1200mm *2455mm | ||
Net Weight | 450 KG | 580 KG | 2300 KG | |
