KASON Pendulum Hammer Charpy Impact Resistance Testing Machine Cooling Temperature
Product Description

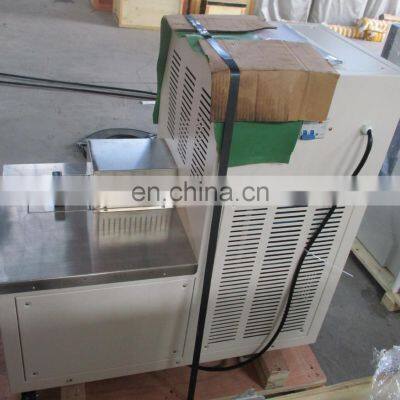

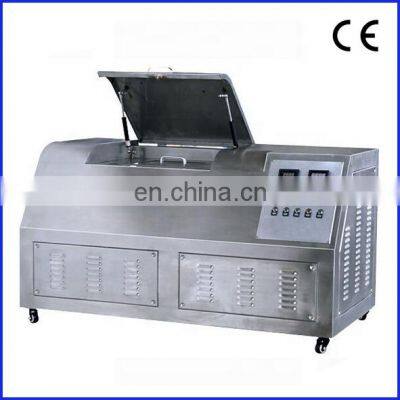

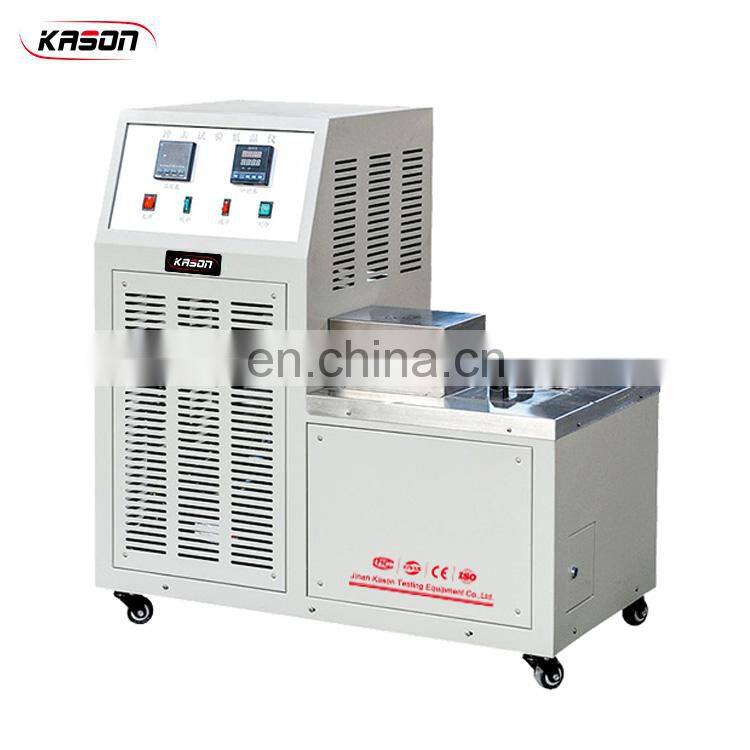

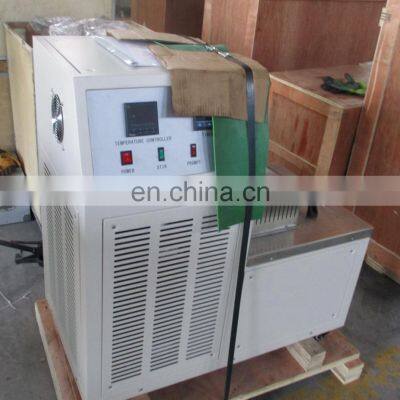

DWC Series Temperature Chamber is designed according to the standard of 'Charpy Notch Impact Test Method for Metal Materials' and adopts compressor cooling technology, which is made up of two sections(Low temperature grade and high temperature grade).
It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance.
Specification
Model | DWC-40 | DWC-60 | DWC-80 | DWC-100 | DWC-196 | ||||
Temperature range | +30~-40° | +30~-60° | +30~-80° | +30~-100° | +30~-196° | ||||
Temperature Control Accuracy | ±0.5° | ±2°C | |||||||
Effective working space (mm) | 120×120×80 | 240×150×150 | |||||||
Specimen dimension | 10×10×55mm | ||||||||
Specimen quantity | More than 60 pcs | ||||||||
Mode of refrigeration | Compressor refrigeration | Liquid nitrogen | |||||||
Please contact KASON directly for best quotation
