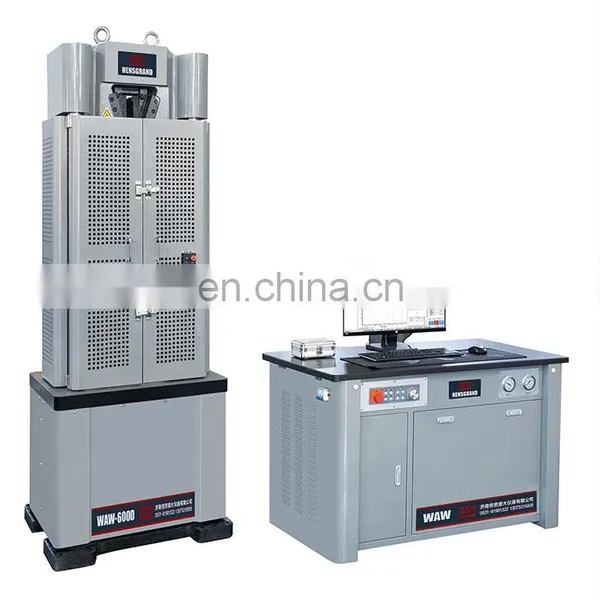

WAW-1000D 1000KN Computer Control Electro- Hydraulic Servo Hydraulic Universal Testing Machine/Pull Test Equipment
Product Description
Application
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.
EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide, etc.
For static and cuasi-static test (low frequency fatigue) for high loads in many types of tests. Specially indicated to switch test mode, thanks to its dual space design.
Standards
EN 10002-2; ASTM E4, ISO 7500-1; DIN 51221 and BS1610 guide, etc.
Specification

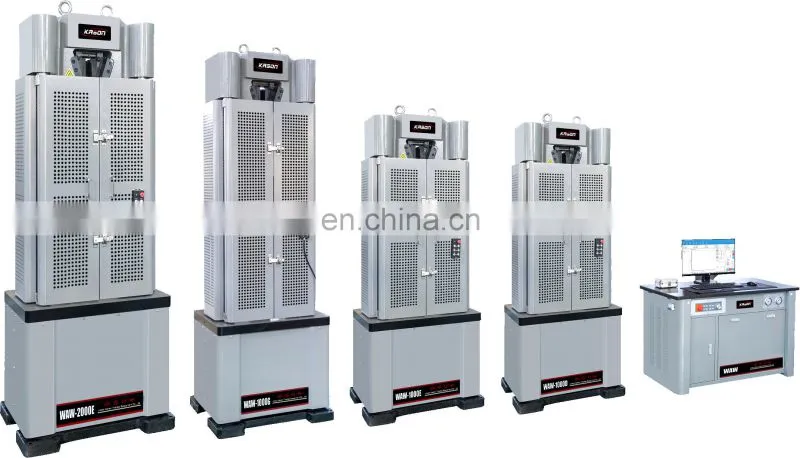

Model | WAW-100D | WAW- 200/300 D | WAW-600D | WAW-1000D/E | WAW-1200D | WAW-2000D | |||||
Control Way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing | ||||||||||
Number of Screw drivers | 4 | ||||||||||
Max. Load(KN) | 100 | 200 /300 | 600 | 1000 | 1200 | 2000 | |||||
Load Accuracy | ≤± 1%/ ≤± 0.5% | ||||||||||
Load Range | 2%~100%FS | ||||||||||
Load Resolution | 1/300000 | ||||||||||
Deformation Accuracy | ≤± 1% | ||||||||||
Testing speeds | 0.1~118 mm/min | 0.1~123 mm/min | 0.1~70 mm/min | ||||||||
Clamping Method | Hydraulic Automatic Clamp | ||||||||||
Power Supply | 3-phase, AC380V, 50Hz (Can Be Customized) | ||||||||||
