Product Description

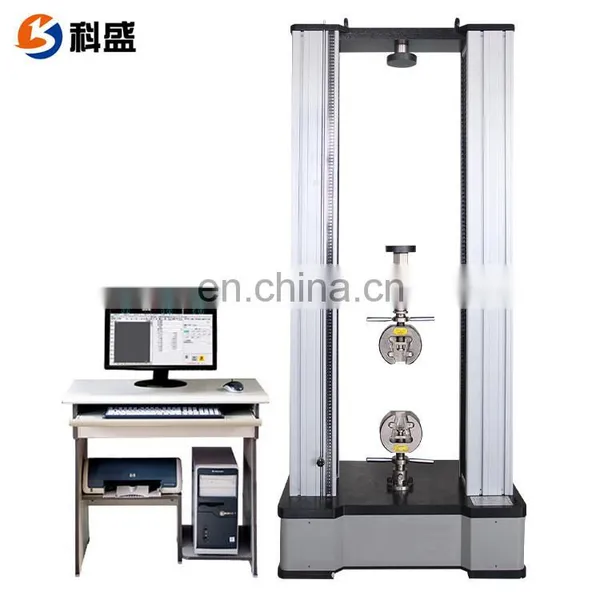

WDW Plastic, Rubber, Fabric, Textile Tensile Shear Testing Machine/ Tensile Test Bench
Product Description
Introduction
WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension,
compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D882, ASTM D3039,ASTM, D3479, ASTM D7791, ASTM D412, ISO6892
Specification
Model | WDW-10E | WDW-20E | WDW-30E | WDW-50E | WDW-100E | ||||
Structure | column and 2 Ball Screw | ||||||||
Max. Load(kN) | 10 | 20 | 30 | 50 | 100 | ||||
Tensile space(mm) | 670 | 770 | 650 | ||||||
Compression space(mm) | 900 | 1000 | 1000 | ||||||
Power Supply | 220V/50-60Hz | ||||||||
Measuring range | 0.2％～100％ | ||||||||
strong electric drive system | 24V voltage control, with over current overloading protection function | ||||||||
Position limit switch | Upper and lower lights | ||||||||
Power | Power light,leak current protection device | ||||||||
Automatic protection | Overload 10%, automatic protection | ||||||||
Please contact KASON directly for best quotation
Application
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
