Product Description

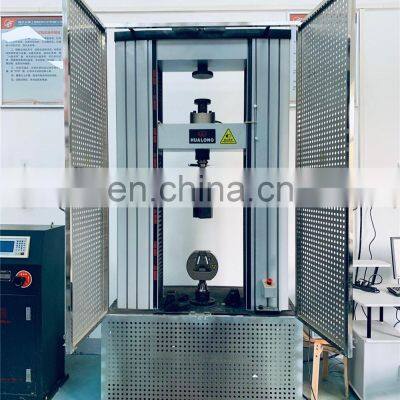

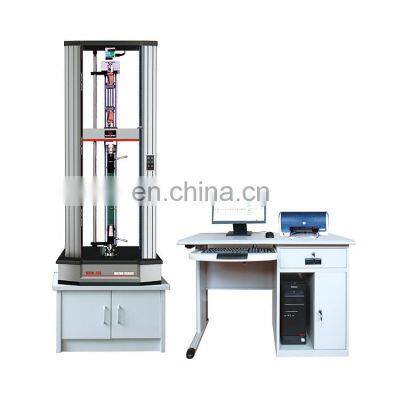

Kason20 kn tensile computerized testing machine electronic universal tester
Product Description
Introduction
WDW series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.
The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are rigid constructed, providing superior axial and lateral stiffness.
100kn tension testing mahcine 100kn universal testing machine 100kn universal testing machine price 100kn utm 100KN Wire TensileTesting Equipment 100KN wire tensile testing machine
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, etc
Model | WDW-10E | WDW-20E | WDW-30E | WDW-50E | WDW-100E |
Structure | column and 2 Ball Screw | ||||
Max. Load(kN) | 10 | 20 | 30 | 50 | 100 |
Tensile space(mm) | 670 | 770 | 650 | ||
Power Supply | 220V/50-60Hz | ||||
Hand control box | 320x240 Display Sscreen,8 key control | ||||
Speed(mm/min) | 0.01-1000 | 0.01-500 | |||
Load accuracy | Class 0.5, EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 | ||||
strong electric drive system | 24V voltage control, with over current overloading protection function | ||||
Position limit switch | Upper and lower lights | ||||
Power | Power light,leak current protection device | ||||
Automatic protection | Overload 10%, automatic protection | ||||
Application
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software. Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Please contact KASON directly for best quotation
