Home > Products > Fiber Optic Test Instruments > OTDR Launch Cable Box

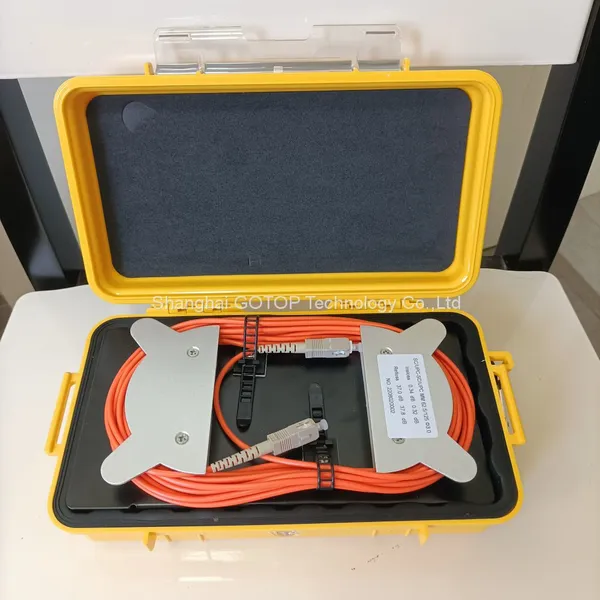

OTDR Launch Cable Box
- 100 Piece / Pieces per Month
- Shanghai
- T/T
- 5 days
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | GOTOP | Place of Origin: | China |
Product Description
Brief Introduction:
Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths
Features:
w Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
w Compound Latch for positive seal and easy opening with locking feature.
w Nonmetal construction will not dent, corrode, or conduce electricity
w Water and dust prove allowing the unit to be taken into almost any environment
w Case can house up to 2,000 meters of fiber
w Auto Purge Valve for changes in altitude and temperature
Specifications:
Mechanical Environmental Characteristics | |
Dimension | 9.37" x 5.56" x 2.62" |
Material | SR Polypropylene |
Color | Yellow |
Weight | 0.75 kg (without fiber) |
Packaging | Rugged,hard-shell transit case |
Storage Temperature | -40 ~ +85°C |
Operating temperature | -40 ~ +85°C |
Humidity | 0~95% (no condensing) |
Fiber & Connector Characteristics | |
Fiber Types | G652D |
Lead Length | 2 Meters,3mm buffer |
Typical Loss | <1dB@1310 for 1000 meters |
Connector Type | SC/LC/FC/ST |
Polish | UPC,APC |
Return Loss | UPC>=50dB,APC>=60dB |
Repeatability(dB) | <=0.2(1000 times) |
Exchangeability(dB) | <=0.2 |
Ordering Information
OTDR-A-B-C-D | |
A for Input connector | B for Output connector |
C for Fiber Mode | D for Length |
For Example: OTDR-SC-FCA-SM-1KM;1KM SM ,SC on I/P lead, FC/APC on O/P lead |
