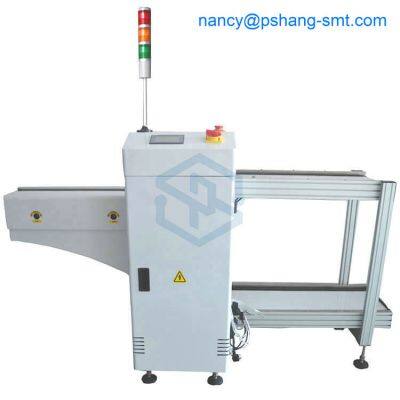

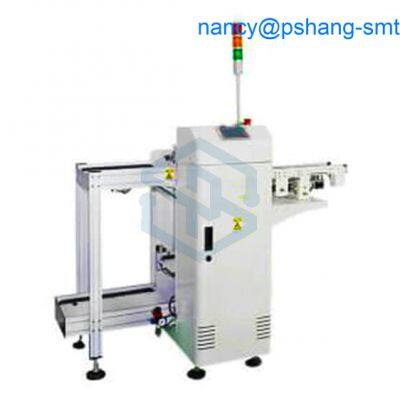

SMT Automatic PCB Unloader for Pick and Place Machine

SMT PCB magazine Unloader

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

12)Operation Control system: Touch Panel controlled interface

13)Power: 220V 50HZ

14)Air pressure: 0.4-0.6MPa

15)the max store PCB Quantity:50pcs

16)One set Electronic control box

Shenzhen Peishang Trading Co., Ltd operates the following SMT products:

1. SMT equipment and accessories: suction nozzle, feeder, feeder parts, scraper, filter, guide rails, tapes, air cylinder, belt, smt grease/lubricants, sensor, etc.

2. Nozzle and feeder for Fuji, Juki, Yamaha, Samsung, Siemens, PanasonicCM602, CM402... have a large stock.

3. Nozzle cleaning machine, solder paste mixer, SMD component counter

Provide complete SMT assembly line solutions, including SMT reflow oven, wave soldering machine, placement machine, SMT stencil printer, SMT AOI SPI machine, SMT reflow oven, SMT peripheral equipment, SMT assembly line, SMT spare parts, etc. Any type of SMT machines you may need,

Our advantage

A. Has a team of engineers with more than 10 years of SMT service experience.

B. Various brands to choose from

C. Provide customized services

D. Large inventory - more than 10000 models of smt parts

If there is no matching model, more information,Please contact us !WeChat whatsapp: +8613662569408,Email: layla@pshang-smt.com
