HC-H003 Best choice 6 Channel 12 lead ECG machine with 7 inch touch screen display
Features for HC-H003 6 Channel 12 lead price of ECG machine with 7 inch touch screen display:
Features:
1. 480*800 7inch touchscreen display
2. Six channel ECG machine with interpretation
3. 12-lead ECG simultaneous acquisition
4. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
5. 6-channel recording with a rhythm lead
6. Digital filters eliminate EMG, AC, Baseline Drift interference
7. Built in rechargeable Li-ion battery, 3 hours continuous working
8. Adapt 110-240V, 50/60Hz AC power supply
9. 250 patients save/replay
10. Built in USB/RS232 interface.
Detailed parameters for HC-H003 6 Channel 12 lead price of ECG machine with 7 inch touch screen display:
|
Lead |
12 leads, Standard or Cabrera, 12 leads simultaneously acquisition |
|
Input circuit |
Floating |
|
LCD display |
480*800 touchscreen display ECG waveform, operation conditions, Time, Heart-rate |
|
Safety |
IEC class I, type CF |
|
Sampling rate |
1000 samples/Sec/Channel |
|
A/D converter |
12 bits |
|
Recording Mode |
automatic, manual, Long Term(60Sec) |
|
Filter |
AC(50Hz or 60Hz, -20dB) |
|
EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB) |
|
|
Drift (0.5Hz,-3dB) |
|
|
CMRR |
> 80dB and 100dB(AC filter in use) |
|
Input circuit current |
<0.1uA |
|
Input Impedance |
> 50Mohms |
|
Time constant |
> 3.2S |
|
Frequency Response |
0.05--150Hz,-3dB |
|
Noise Level |
<15µV |
|
Sensitivity |
1.25; 2.5; 5; 10;20; 40mm/mV±3% |
|
Calibration Voltage |
1mV±3% |
|
Patient Current Leakage |
<10uA |
|
Protection |
Protect from defibrillation and pace-making |
|
Recording mode |
Thermal printer; 8dot/mm(Vertical), 40 dot/mm (Horizontal, at 25mm/s) |
|
Print Speed |
5; 6.25; 10; 12.5; 25' 50mm/s±2% |
|
Paper size |
roll type or Z-folded |
|
Patient Cable |
standard 10 leads |
|
Power requirements |
AV220V/50Hz |
|
Built-in battery |
Li-ion rechargeable battery pack, 11.1V |
|
Fuse Specification |
2φ5x20mm |

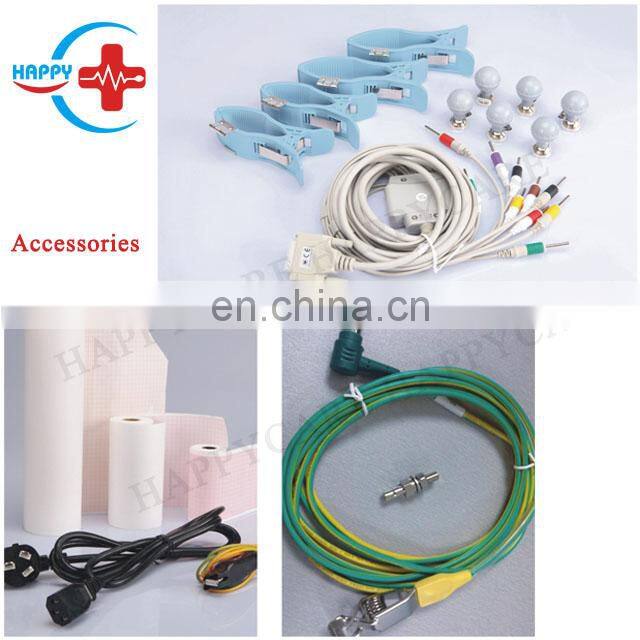

Pictures for HC-H003 6 Channel 12 lead ECG machine with 7 inch touch screen display:
1. How to place order of HC-H003 6 Channel 12 lead price of ECG machine with 7 inch touch screen display ?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-H003 6 Channel 12 lead price of ECG machine with 7 inch touch screen display product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-H003 6 Channel 12 lead price of ECG machine with 7 inch touch screen display , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-H003 6 Channel 12 lead price of ECG machine with 7 inch touch screen display , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For HC-H003 6 Channel 12 lead price of ECG machine with 7 inch touch screen display , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
