HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary
Features for HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary

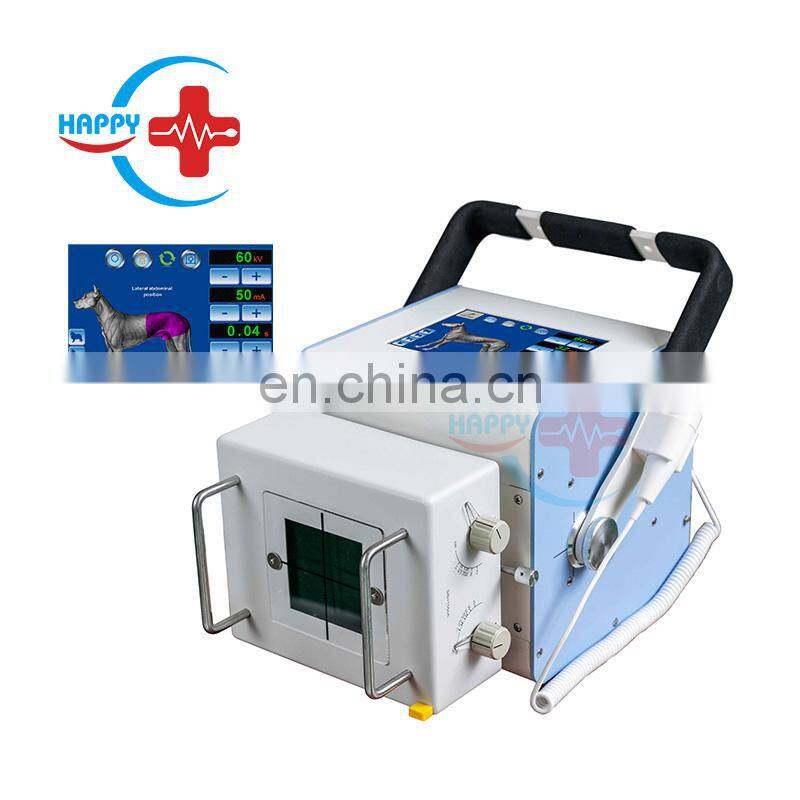

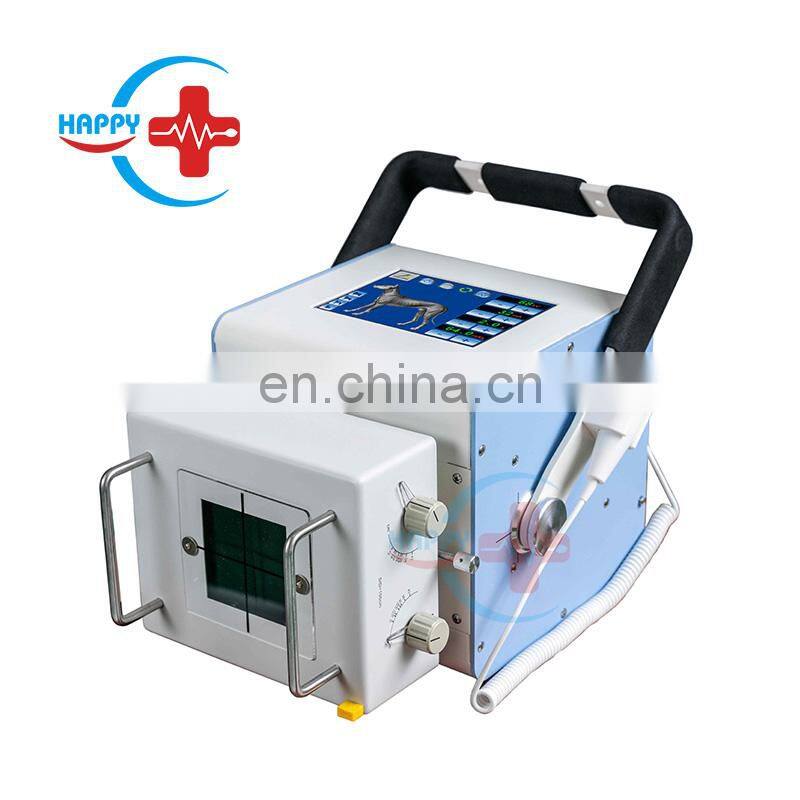

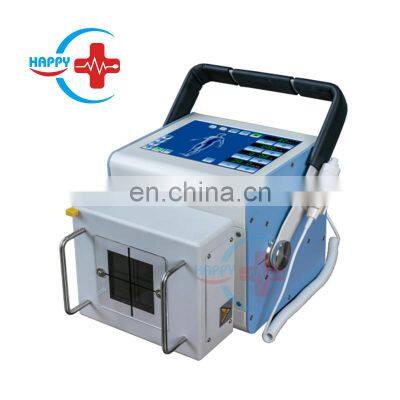

HC-D003 Portable high frequency x-ray machine
Typical Application:
Suitable for portable imaging system, such as mobile DR, vehicle DR, veterinary DR
Feature:
1. Using high frequency inverter technology to produce, high voltage output stability, can obtain good image quality
2. The compact design makes it easy to carry in different areas and locations.
3.With three exposure control methods: Wireless/Hand brake/Operation panel
4. Fault self-diagnosis, self-protection
5. With flexible digital interface and SDK protocol, users can go deep into the core programming control and adapt to different DR detectors.
Parameter Sheet:
|
Model |
HC-D003 |
HC-D003-1 |
|||||||
|
Max Output Power |
5.0kW |
3.5kW |
|||||||
|
Power Capacity |
100kV@50mA |
70kV @ 50mA |
|||||||
|
Radiographic kV Range |
40-50 kV |
40-60 kV |
40-80 kV |
40-100 kV |
40-100 kV |
40-110 kV |
40-70 kV |
40-90 kV |
40-100 kV |
|
Radiographic mA Range |
100 mA |
80 mA |
63mA |
50mA |
40mA |
32mA |
50 mA |
40 mA |
32 mA |
|
mAs mAs Range |
0.32-315mAs |
0.32-200mAs |
|||||||
|
Exposure Time Range |
0.01-6.3s |
0.01-4s |
|||||||
|
Operating Frequency |
≥ 30kHz |
||||||||
|
Input Power Type |
220V ±10%, 50Hz/60Hz |
||||||||
|
Dimensions |
370mm ×300mm×240mm 370mm ×300mm×240mm(including collimator) |
||||||||
|
Weight |
21KG |
||||||||
|
Inverter Method |
PWM PWM(pulse width modulation) |
||||||||
Pictures for HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary:
1. How to place order of HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary ?
|
A: Firstly we confirm product details and then send the Proforma Invoice, You make payment to us through Trade Assurance or T/T, Western Union or MoneyGram, after we confirm your payment then ship the product to you once finished production. |
2. For HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary product,What’s the minimum order quantity (MOQ)?
| A: For disposable material,We have our own MOQ,For our HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary our MOQ:1pc, |
3. What is your warranty?
|
A: For most products the warranty is for 12 months, some products we provide 18 months warranty. For HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary , we provide 12 months warranty. |
4. What’s your delivery time?
|
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For HC-D003 Newest Medical X-ray Diagnostic Equipments Portable Digital X-ray Machine For Veterinary, the delivery time is 10 working days. |
5. How to ship the product?
|
A: The shipping way normally depand on your quantity,total CBM and weight. We have our own shipping company to provide best shipping cost and efficient way. |
