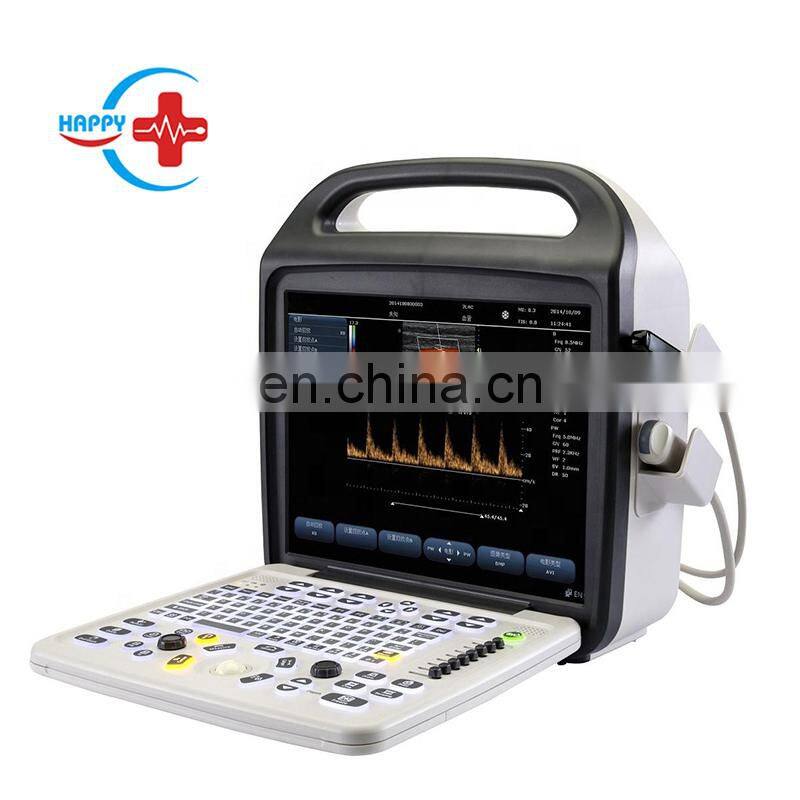

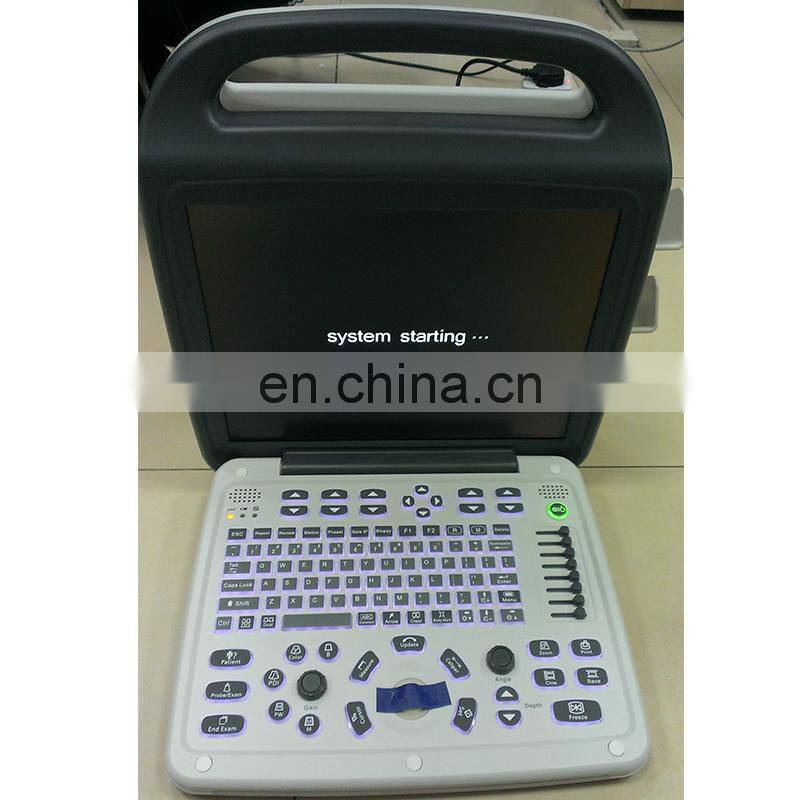

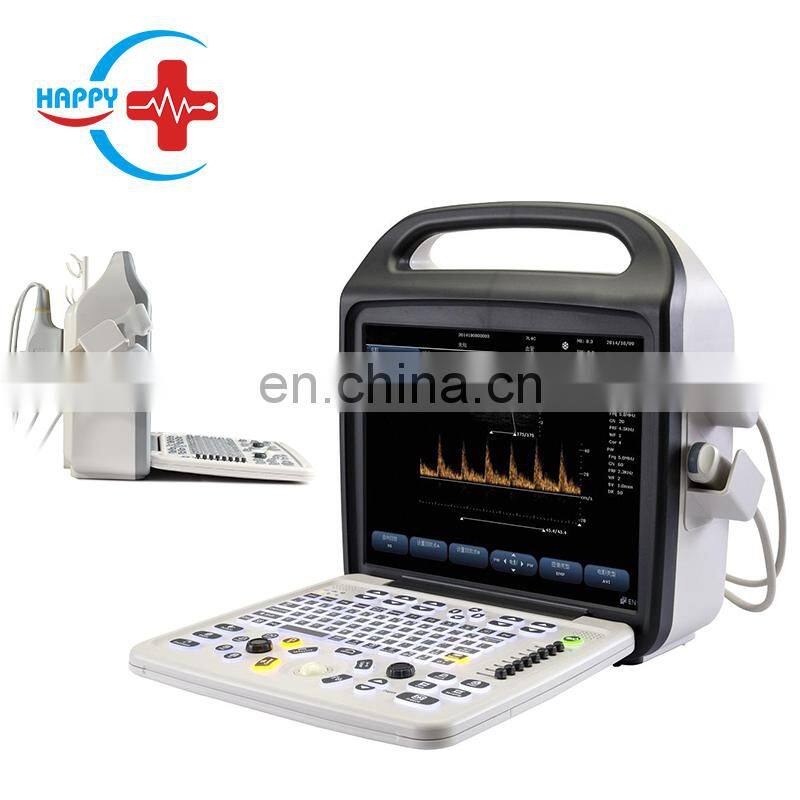

HC-A021V Veterinary 15 Inch LCD Laptop Color Doppler Ultrasound System Portable Animal Vet Ultrasound Scanner

Name: HC-A021V Veterinary 15 Inch LCD Laptop Color Doppler Ultrasound System Portable Animal Vet Ultrasound Scanner
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

HC-A021V Veterinary 15 Inch LCD Laptop Color Doppler Ultrasound System Portable Animal Vet Ultrasound Scanner

Product Description

Features:

1.Compact body design:Streamlined body design;Light-weight(8.5kg net weight);Dimensions(400mm×394mm×172mm);Cylinder handle brings comfortable grip feeling. 2.15"LCD high resolution LCD monitor:1024*768 pixels;Digital on-screen display brightness and contrast controls with factory default presets;High performance audio speakers integrated. 3.Dual probe connectors:Quick switch between different probe needs. 4.Two side USB ports:For data transportation and more convenient for use. 5.High quality silicone keyboard design:Waterproof;dustproof;soft touch;Three-color status indicator system(orange-red,green and white);Simplified layout design is suitable for single-hand operation. 6.Back-lit control panel:Easy for operation under low light/dark environment. 7.Rechargeable lithium battery:Removable;support over 1.5 continuous use;auto switch when the electricity is turned off. 8.Integrated 500GB Hard disk:Large capacity for storage of patient studies that include images,clips,reports and measurements. 9.Complete mobile solutions:Mobile trolley;Wheeled transport case. 10.64 physical channels:Quicker and better real-time image processing. 11.Advanced imaging technology:Pulse-inverted Tissue Harmonic Imaging;High precision dynamic focus imaging;Spatial compound imaging;Frequency compound imaging;Mullti-beam parallel processing technology;Real time speckle reduction Technology;newest image enhancement technology. 12.Advanced needle visualization techologhy:Advanced needle visualization techologhy helps to assure the accuracy of ultrasound-guided injections, SENP uses a dedicated signal path with highly steered ultrasound beams and patent-pending algorithms that automatically identify and extract the needle information from that of surrounding tissue. 13.Real time needle guidance technology:Real time needle guidance technology combines ultrasound with advanced magnetics to provide real-time information about the needle-tip location during placement of central lines. 14.Biopsy function:Comprehensive biopsy function helps increase efficiency, patient satisfaction, and decrease complications during procedures requiring needle placements. 15.Beam steering function:Beam steering for better needle visualization. 16.All-round ultrasound exams:Can be applicable but not limited to abdomen, OB/G, ardiology(fetal), small parts, pediatrics and vascular clinical exams. 17.Measurement packages:Measurement packages of all parts meet different clinical applications. 18.Built-in workstation:Comprehensive on board workstation for patient information management and connectivity. 19.Image optimization function:Imaging parameters will be automatically optimized when you choose a tissue in probe user interface. 20.DICOM storage SCU:Fully compatible with DICOM3.0. 21.Annotation library:For quick comment. 22.Real time dual-display 2D images and color flow images:For better view and comparison. 23.One key saving and restoring image:One key saving and restoring image parameters to eectively shorten the operating time. 24.Quick cold start:Under 5 seconds from cold start to scanning. 25.Auto standby:User defined time for auto standby; protect and prolong the lifespan of main unit and probes. 26.Colorize:Multi optional color maps for user defined image color.

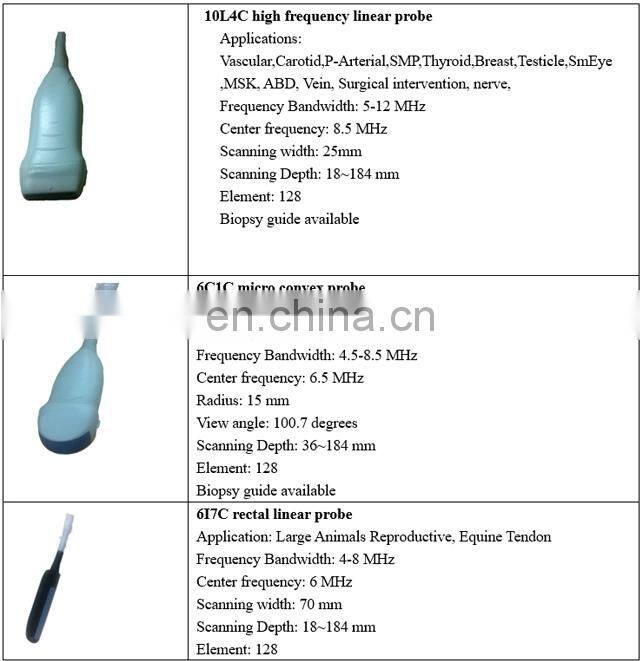

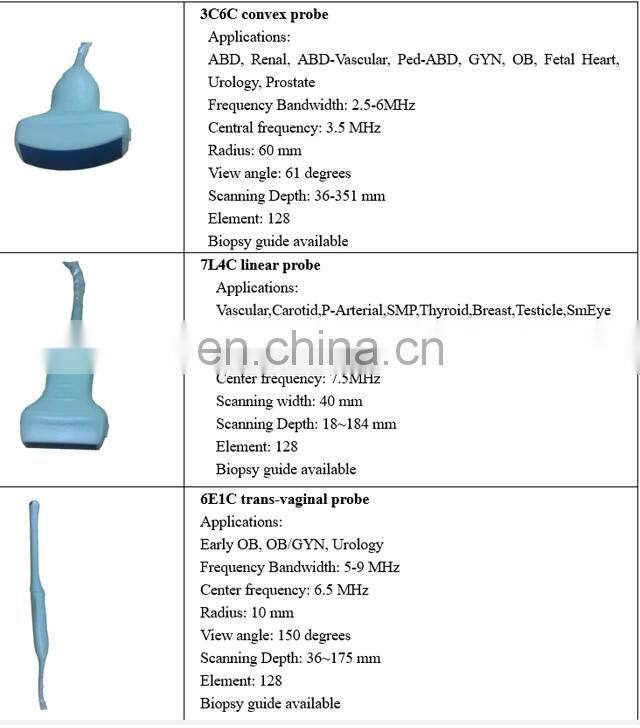

Monitor 15-inch, high resolution, progressive scan Resolution:1024*768 pixels Image display area is 640*480 Digital on-screen display brightness and contrast controls with factory default presets High performance audio speakers integrated with the monitor Hard Drive Internal 500GB hard drive for patient database management Allow storage of patient studies that include images,clips,reports and measurements Transducer Ports Two active universal transducer ports that support standard(curved array, linear array), high-density transducers 156-pin connection Unique industrial design provides easy access to all transducer ports Scan Formats Sector: selectable field of view (FOV) from 34 to 151degrees Steerable Linear: variable steering angles for CFM and PW Doppler

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Happycare
Model Number	HC-A021V
Power Source	Electric
Warranty	1 Year
After-sale Service	Online technical support
Material	Steel
Shelf Life	1years
Quality Certification	CCC
Instrument classification	Class I
Safety standard	None
Name	HC-A021V Vet ultrasound scanner

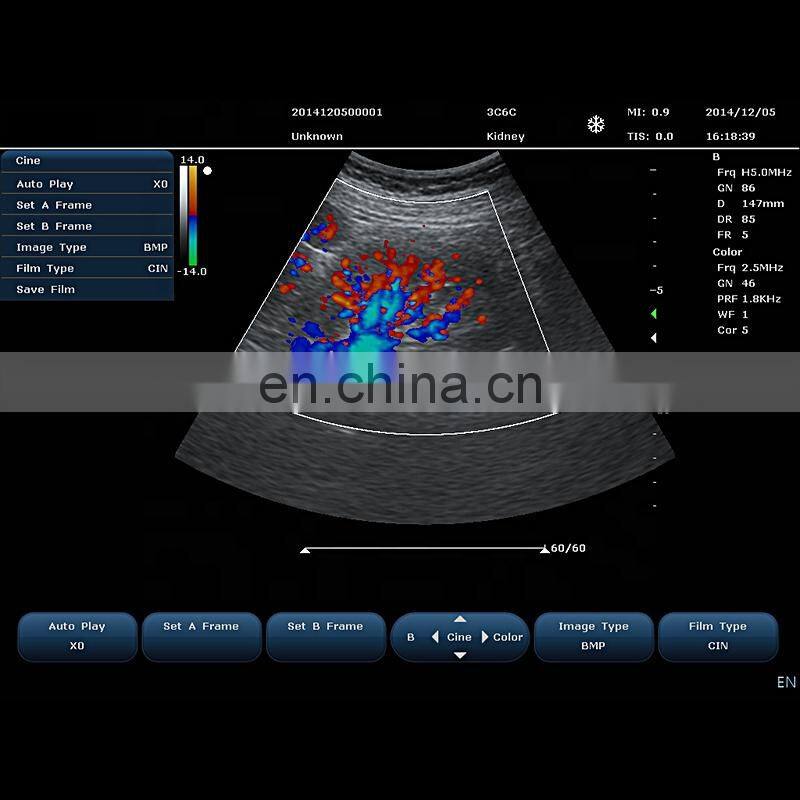

Display mode	B,2B,4B ,B/M,M
Display	15"LCD high resolution LCD monitor
Transrectal probe	transrectal probe
Rechargeable lithium battery	about 2 hours
