HC-A012A Cheapest Portable Veterinary Pet Ultrasound Machine Full Digital Colour Doppler Ultrasound Scanner for Vet

I.Features:

1. General Description
HC-A012A is a portable color doppler, designed and produced by Happycare professional team. Leading image process technical and advanced and practial clinic solution method, It’s highly cost effective and reliability. It’s the ideal option for primary hospitals, clinics, etc.

HC-A012A  adopts advanced image processing techniques and advanced practical clinical solution, which is applicable to diagnosis of abdomen, GYN, OB, superficial organ, cardiac, peripheral vascular, urology department and orthopedic surgery. With scalable design, upgrade continuously, fully satisfy the clinical application extension.

2. Powerful Data Management
 Intelligent user defined, one-key review and storage function;

 Optimize checking image function, realize 1-2 second response;
Neoteric internal workstation multi-plan module, quickly finish data, report, realize process multi medical histories function.

3.The main system Performance Overview

 Built-in embedded A8 platform, totally against virus invasion, with high reliability.
Operating System: Linux operating system, Chinese / English menu switch arbitrarily;

 Gray-scale imaging unit;
 M-mode imaging unit;
 Visual and adjustable dynamic range
Full digital multi-beam forming technology, precision delay-by-point dynamic receiving focus, ultra-wideband imaging, adaptive image optimization, adaptive angiography, adaptive Doppler imaging;
 Ultra-wideband fully digital beamformer: Dynamic Focus;
 Gray-scale imaging unit, gray scale ≥256 level, with excellent contrast resolution and overall uniformity

4. Reasonable Humanization Design
 Multi-functional knob design, realise one-key quick adjustment in multi-mode.

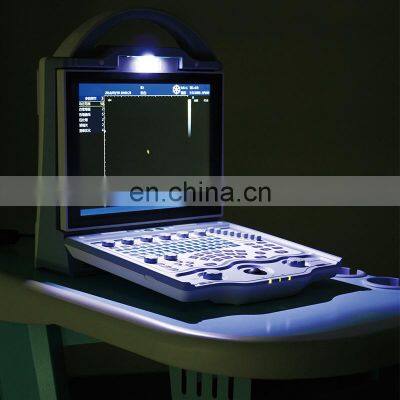

One-key-light keyboard function for black room use;
 One button operation including one-key storage image, one-key review, one-key print, etc;

 10.4’ color LED full screen display, angle adjustable

Quick look up stored image function,raise working efficiency

5. Technical parameters
5.1 Specification parameters
 Gray scale: 256;

 Power: ≤100VA
 Color bands: 256;

 Display: 10.4 " high resolution, medical dedicated LCD color display;
 Network Power: 100-240V ~ 1.2-0.6A frequency: 50-60Hz;
 Adapter output: DC12.8V 3.0A;
 Main unit Size: about 256 × 150 × 326 (mm, length × width × height);
 Net weight: 4.5Kg (no attachments);
 Operation mode
B,B/B,4B mode
M,B/M mode
Color flow mode(CFM)
Power Doppler mode(PDI)
Pulsed-wave Doppler(PW)
Tissue harmonic imaging(THI)

5.2. Language

 Manu operation:
The interface language: Chinese / English switchable

5.3. Probe Interface

 Probe Interface: 2 activation probe interface, with automatic identification technology, support for multiple probe matching.

5.4. Multimedia and peripheral equipment
 Video recorder;
 I-Station integrated work stations, support store images, report generation and cloud printing;
 U disk (support file management, software upgrades, and one-key storage), DICOM interface, convenient for doctor's data management, remote transmission;
 Dual-mode TV output: PAL/NTSC

6.Optional Configuration

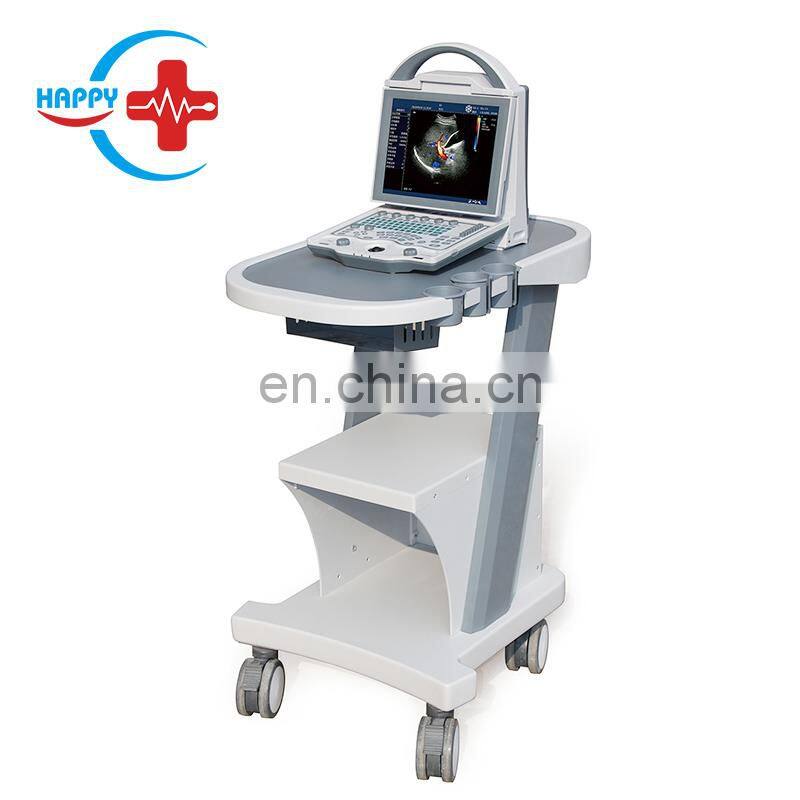

 Trolley
 Foot switch

Ethernet switch
 Thermal printer (sony UP-897MD)


7. Standard Configuration
 Main unit: 1 PC
 work station
 Reticle

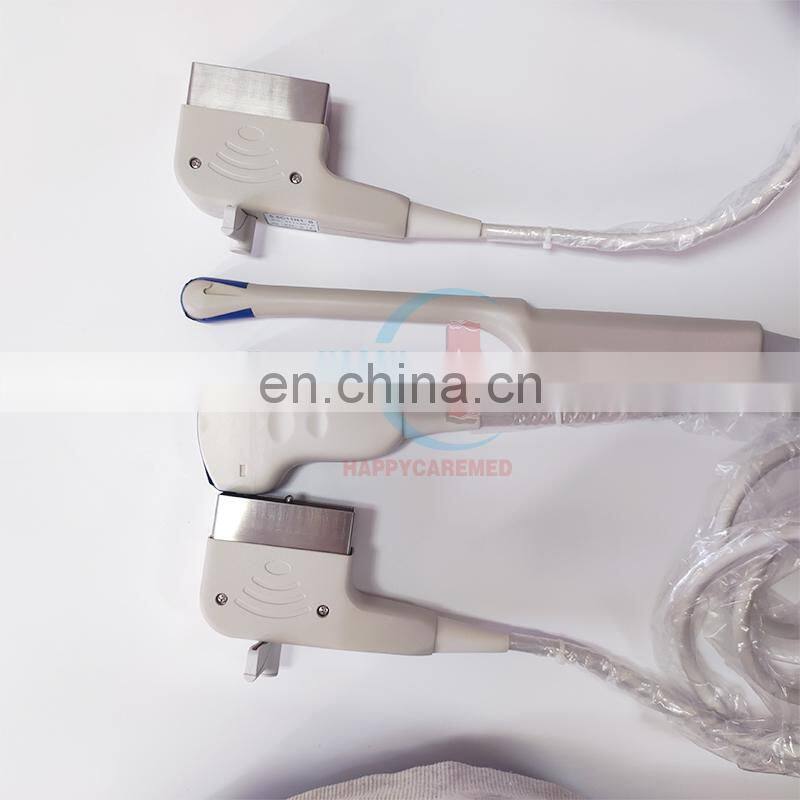

 6.5MHz multi-frequency trans-vaginal probe.
 7.5MHz multi-frequency linear probe
 3.5MHz multi-frequency abdomen convex probe.
Choose between

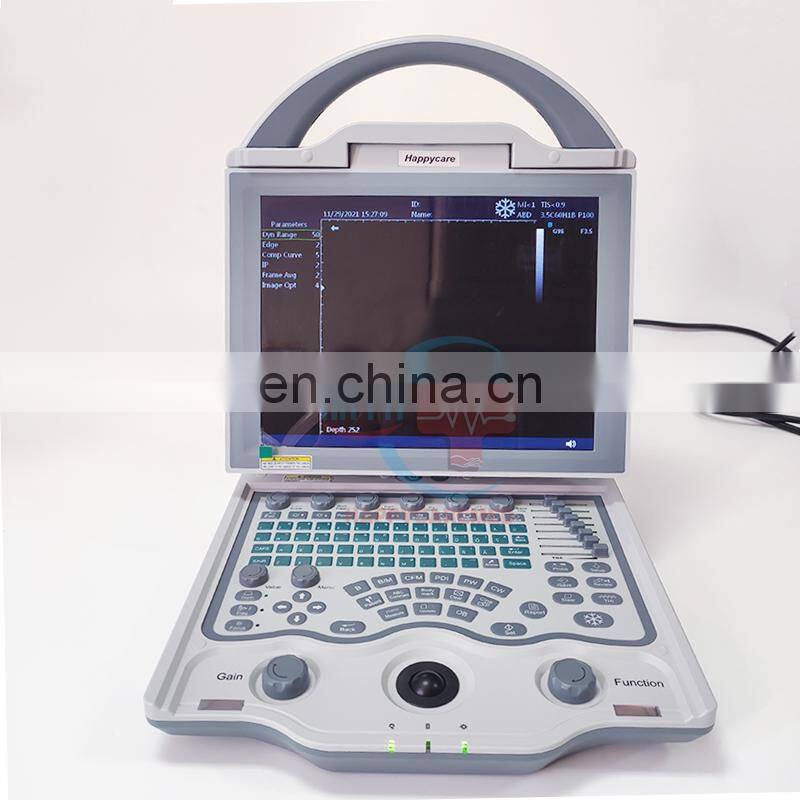

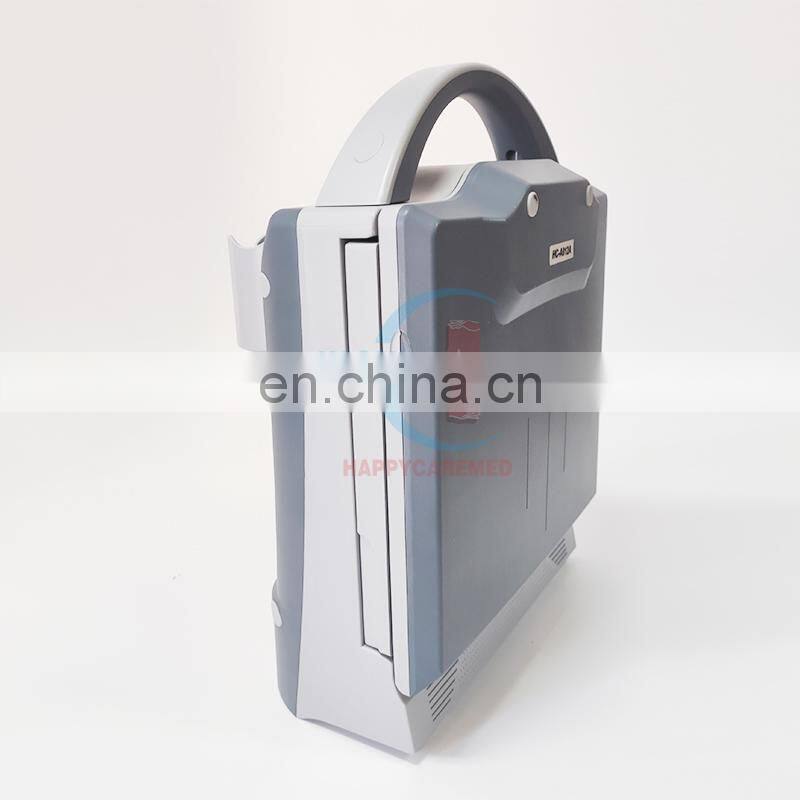

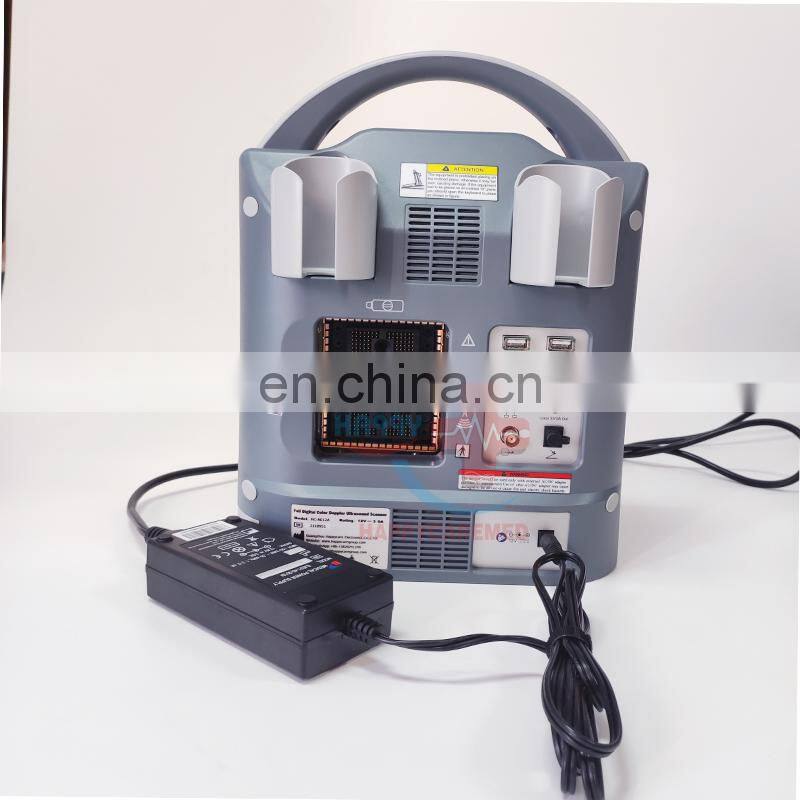

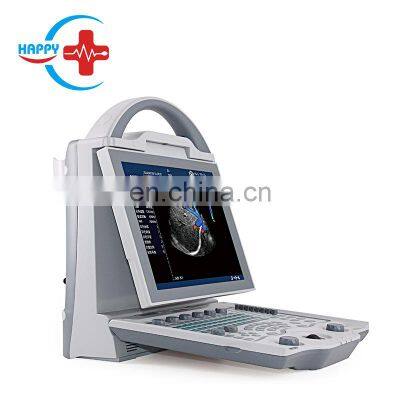

II.Pictures for portable ultrasound:
