Building Electric Privacy Window Dimmable Glass Tint Smart Glass Film Switchable PDLC Decorative Film
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Blue Adhesive Privacy Dimmable Tint Smart Glass Film Car Switchable PDLC Film SPD Window Glass FilmNegotiableMOQ: 1 -
Switchable Car Stained Sticker Tempered Decorative Smart Glass Window FilmNegotiableMOQ: 1
-
Car Decorative Stained Sticker Tempered Smart Eva for Glass Lamination Window Glass FilmNegotiableMOQ: 1
-
Tint Glass Smart Eva Frosted Adhesive Car Electric Decorative Heat Protection Window FilmNegotiableMOQ: 1
-
Pdlc Noir Dark Privacy for Glass Invisishade Switchable Wi Switch Black Frosted Car Smart FilmNegotiableMOQ: 1
Products Description
Power ON | Power OFF | ||||||||
2.1 Light transmittance: | Parellel light: | >=66% | <=1.5% | ||||||
Visible light: | Common Film | >=83% | >=55% | ||||||
High Transmittance Film | >=88% | >=57% | |||||||
2.2 Haze: | <=3% | >=90% | |||||||
2.3 Response time: | <10ms | <200ms | |||||||
2.4 Viewing angle: | >=150° | ||||||||
2.5 Voltage: | Input: | AC220V, AC110V, DC24V, DC12V | |||||||
Operating voltage: | AC48V | ||||||||
Threshold voltage: | <=20V | ||||||||
2.6 Frequency: | Operating frequency: | 30~400Hz | |||||||
Optimum operating frequency: | 50Hz | ||||||||
2.7 Power consumption: | <=5W/m2 | ||||||||
2.8 Continued opening time: | >80,000h | ||||||||
2.9 Continued ON and OFF times: | >80,000,000 | ||||||||
2.10 Insulation Resistance: | >2M Ω | ||||||||
2.11 Operating temperature: | Between -10℃ and 65 ℃. | ||||||||
2.12 Storage temperature: | Between -20℃ and 80 ℃. | ||||||||
2.13 Thickness: | 0.65mm | ||||||||
2.14 Max dimension: | Individual piece | <=1.5 * 3.2 meters | |||||||
Roll | 0.93/1.2/1.5(W) x 20/30/50M(L) | ||||||||
2.16 Adhesion for silicon glue & glass: | 20g/mm | ||||||||
2.17 Adhesion for PDLC film: | 50g/mm | ||||||||

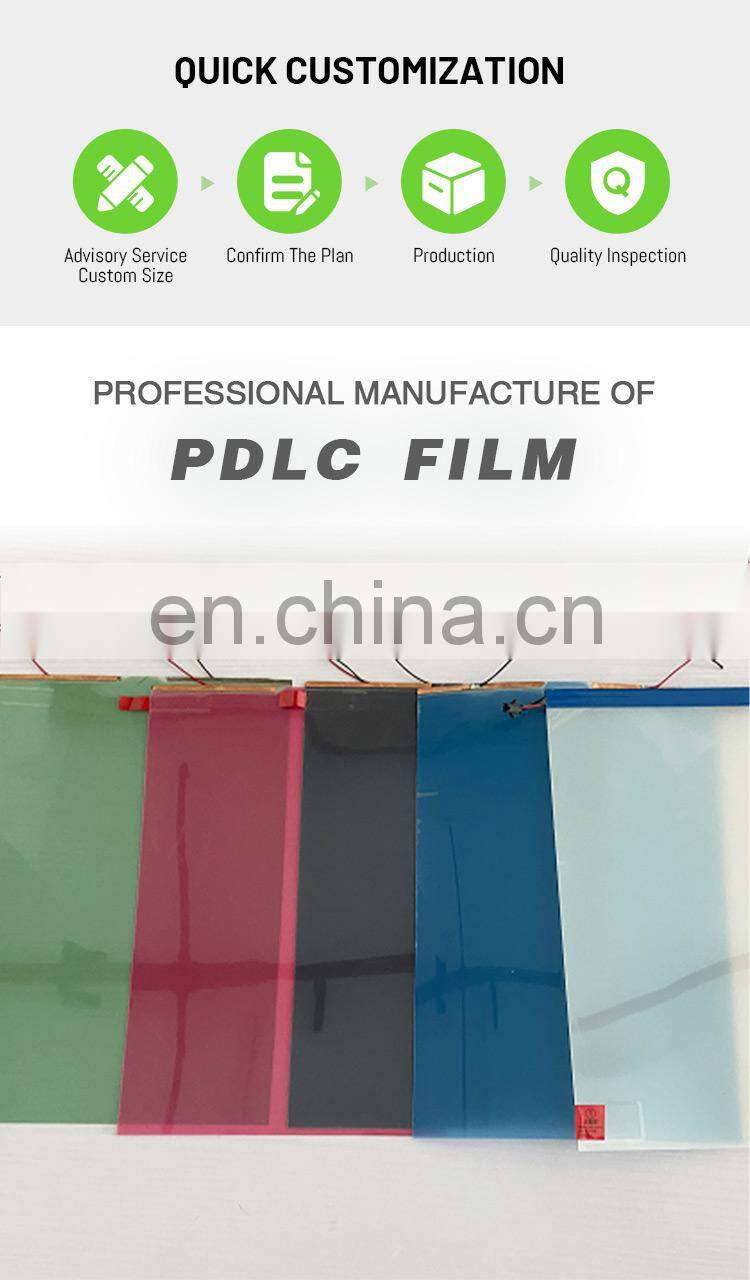

Product Details

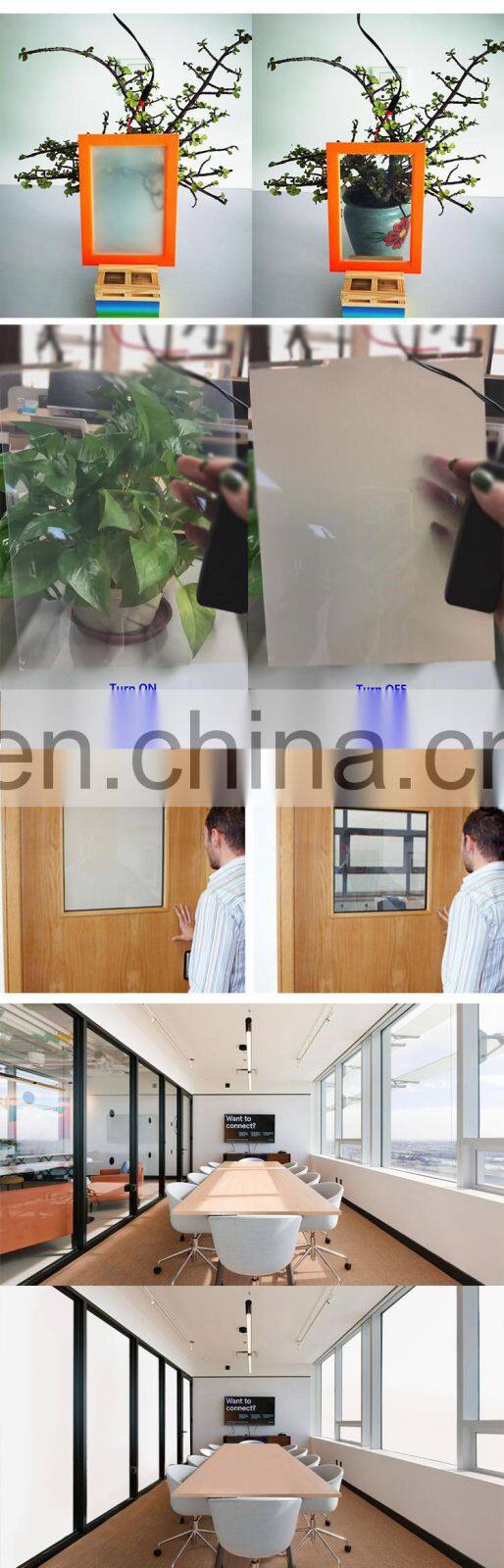

Picture Display

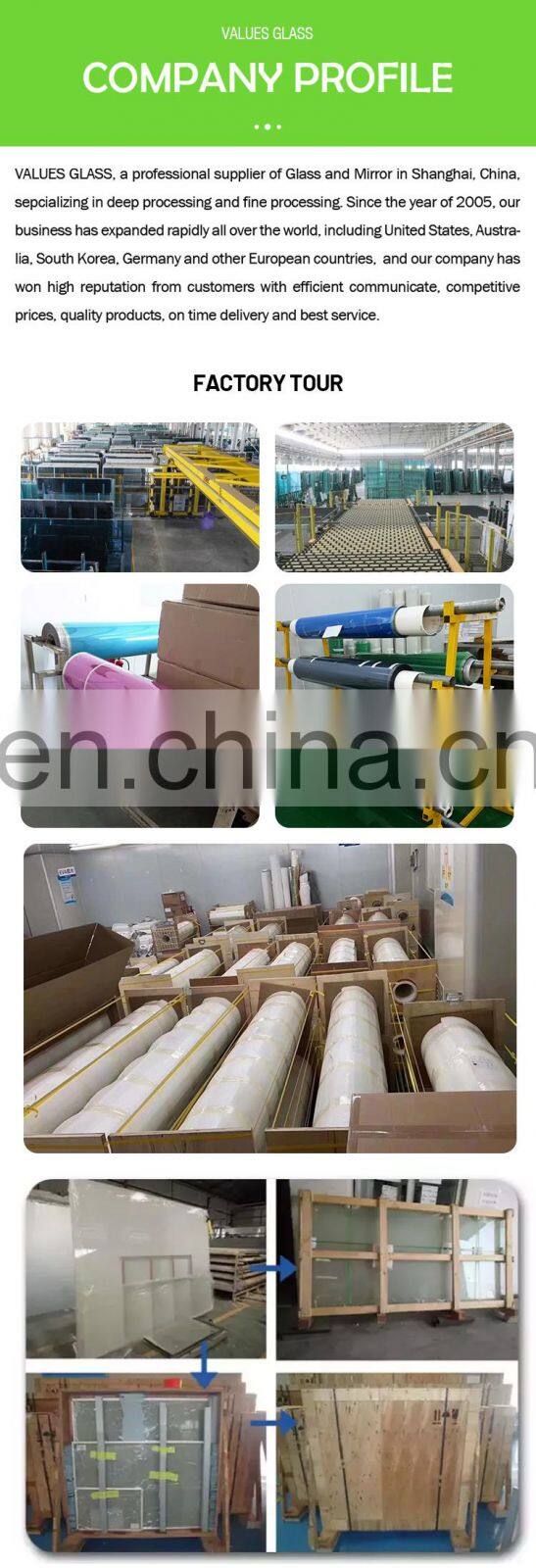

Company Profile
FAQ
Q:Does this need to be installed by an electrician?
A: NO, We can provide you a complete closed system that is ready to install with a plug, it can be DIY by yourself. If you would like to hire an electrician to achieve your goal that is your own decision.
Q:Can I purchase a sample of Switchable Glass ?
A:Yes, we offer samples as your wish.
Q:How does a user control the tint of Smart Glass Film?
A:It can be Switch, Remote, we can offer the suitable transformer & controller for your choice.
Q:Can you cut the film on site....or do you need an absolute measurement from me before the panels are custom made?
A: The material is custom manufactured with special laser equipment to ensure straight cuts however you can cut the material if needed to add a logo, trim etc.
Q:Can we install this film on the top half of the glass only? We were thinking we wanted to keep the existing decals in place and install film from the decal up to the top of the panel.
A:YES - You can install on top half or bottom half only, just be careful for the wiring
Q:Does it block the UV harmful rays?
A: It blocks over 98% of the harmful UV rays in both its energized and non-energized state.
Q:Can we install this product ourselves?
A:YES, we offer complete do it your self kits with practice pieces.
Q:How long will it take for production and delivery？
A: This depends on Material size, total qty order and geographic delivery place.For expedited sample orders, we can ship as fast as 3-7 working days from payment confirmation. If for mass production, it will only last for 7-10 working days approximately.
