Factory Directly Price Electronic Colour Self-adhesive Dimming Switchable Smart PDLC Film Smart Glass
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2015
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Supplier of Self-Adhesive PDLC Smart Film For Smart GlassNegotiableMOQ: 1 -
Blue Clear Cobalt Electric Self-adhesive Light-adjustable Privacy Glass PDLC FilmNegotiableMOQ: 1
-
Self Adhesive Smart Window Film Tint Sticker Privacy Toughened Switchable Pdlc Smart Glass FilmNegotiableMOQ: 1
-
Frosted Eva Laminated Anti Glare Glass Switchable Blue Window Pdlc Smart FilmNegotiableMOQ: 1
-
Car Front Tint Frosted Glass Door Anti Blue Light Tempered Screen PDLC Window Glass FilmNegotiableMOQ: 1
Advantages
a) Environmential protection, saving-energy,safety,heat presevation,anti-condensation
b)High UV resistance function, It can block more than 99 % of ultraviolet light. While it does not lose visible light into the
room, it isolates a large amount of ultraviolet light to prevent the fading and aging of interior decorations and furniture. It
can also protect people from diseases caused by excessive ultraviolet radiation
c) The suitable visible light penetration rate has a certain degree of concealment for outdoor bright light
d) Low solar coverage effectively prevents solar thermal radiation from entering the room
e)High infrared reflectivity, limiting outdoor secondary thermal radiation into the room
f) The extremely high absorption of more solar radiation heat and ultraviolet rays to reduce the transmission of infrared and ultraviolet light, reduce the energy consumption of indoor air-conditioning, heat insulation and energy saving
g) A high degree of safety, when damaged by external forces, will only cause cracks, but will not break down, there is no dangerof splashing glass fragments.
h) Control diversity: hand control, remote control, optical control, audio control, infrared, remote network control
b)High UV resistance function, It can block more than 99 % of ultraviolet light. While it does not lose visible light into the
room, it isolates a large amount of ultraviolet light to prevent the fading and aging of interior decorations and furniture. It
can also protect people from diseases caused by excessive ultraviolet radiation
c) The suitable visible light penetration rate has a certain degree of concealment for outdoor bright light
d) Low solar coverage effectively prevents solar thermal radiation from entering the room
e)High infrared reflectivity, limiting outdoor secondary thermal radiation into the room
f) The extremely high absorption of more solar radiation heat and ultraviolet rays to reduce the transmission of infrared and ultraviolet light, reduce the energy consumption of indoor air-conditioning, heat insulation and energy saving
g) A high degree of safety, when damaged by external forces, will only cause cracks, but will not break down, there is no dangerof splashing glass fragments.
h) Control diversity: hand control, remote control, optical control, audio control, infrared, remote network control
Products Description

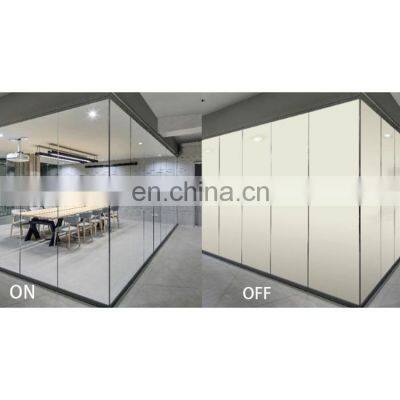

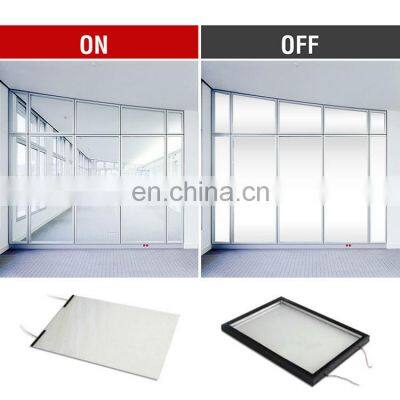

Power ON | Power OFF | ||||||||
2.1 Light transmittance: | Parellel light: | >=66% | <=1.5% | ||||||
Visible light: | Common Film | >=83% | >=55% | ||||||
High Transmittance Film | >=88% | >=57% | |||||||
2.2 Haze: | <=3% | >=90% | |||||||
2.3 Response time: | <10ms | <200ms | |||||||
2.4 Viewing angle: | >=150° | ||||||||
2.5 Voltage: | Input: | AC220V, AC110V, DC24V, DC12V | |||||||
Operating voltage: | AC48V | ||||||||
Threshold voltage: | <=20V | ||||||||
2.6 Frequency: | Operating frequency: | 30~400Hz | |||||||
Optimum operating frequency: | 50Hz | ||||||||
2.7 Power consumption: | <=5W/m2 | ||||||||
2.8 Continued opening time: | >80,000h | ||||||||
2.9 Continued ON and OFF times: | >80,000,000 | ||||||||
2.10 Insulation Resistance: | >2M Ω | ||||||||
2.11 Operating temperature: | Between -10℃ and 65 ℃. | ||||||||
2.12 Storage temperature: | Between -20℃ and 80 ℃. | ||||||||
2.13 Thickness: | 0.65mm | ||||||||
2.14 Max dimension: | Individual piece | <=1.5 * 3.2 meters | |||||||
Roll | 0.93/1.2/1.5(W) x 20/30/50M(L) | ||||||||
2.16 Adhesion for silicon glue & glass: | 20g/mm | ||||||||
2.17 Adhesion for PDLC film: | 50g/mm | ||||||||
Product Details
Picture Display
Company Profile
FAQ
Q:Does this need to be installed by an electrician?
A: NO, We can provide you a complete closed system that is ready to install with a plug, it can be DIY by yourself. If you would like to hire an electrician to achieve your goal that is your own decision.
Q:Can I purchase a sample of Switchable Glass ?
A:Yes, we offer samples as your wish.
Q:How does a user control the tint of Smart Glass Film?
A:It can be Switch, Remote, we can offer the suitable transformer & controller for your choice.
Q:Can you cut the film on site....or do you need an absolute measurement from me before the panels are custom made?
A: The material is custom manufactured with special laser equipment to ensure straight cuts however you can cut the material if needed to add a logo, trim etc.
Q:Can we install this film on the top half of the glass only? We were thinking we wanted to keep the existing decals in place and install film from the decal up to the top of the panel.
A:YES - You can install on top half or bottom half only, just be careful for the wiring
Q:Does it block the UV harmful rays?
A: It blocks over 98% of the harmful UV rays in both its energized and non-energized state.
Q:Can we install this product ourselves?
A:YES, we offer complete do it your self kits with practice pieces.
Q:How long will it take for production and delivery？
A: This depends on Material size, total qty order and geographic delivery place.For expedited sample orders, we can ship as fast as 3-7 working days from payment confirmation. If for mass production, it will only last for 7-10 working days approximately.
