Meat Grinder
1. Equipment introduction
The meat grinder is to smash raw meat into different specifications of granular meat filling according to different requirements, mainly used in meat processing enterprises.
The meat grinder is mainly composed of a feeder, a cutting machine and a driving machine.

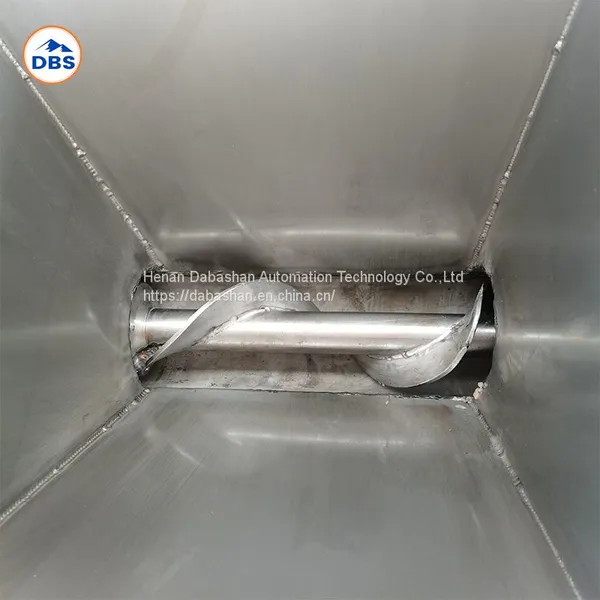

The meat grinder mainly uses the rotating screw to push the raw meat in the hopper box to the pre-cut orifice plate, uses the shearing action formed by the rotating reamer and the holes on the orifice plate to chop the raw material, and squeezes it under the extrusion force of the screw, then the raw materials are continuously discharged out, so the raw meat is cut into granular blocks to ensure the uniformity of the meat filling.
According to different material properties and processing requirements, the machine can be equipped with corresponding tools and orifice plates, and can process different sizes of meat, to meet the requirements of the next process.
Made of high-quality stainless steel, it is non-polluting to processed materials and meets food hygiene standards.
The knife tool is specially heat-treated, with excellent wear resistance and long service life.
The machine is simple to operate, easy to disassemble and assemble, easy to clean, and has a wide range of processed products, after the material is processed, it can well maintain its original various nutrients, and the preservation effect is good.
The knife tool can be adjusted or replaced according to the actual requirements.
2. Performance benefits
1. Good versatility, wide application range, high production efficiency.
2. The forward and reverse function makes the meat grinder impossible to blockage.
3. A variety of orifice plate combinations, suitable for the requirements of different meat products.
4. With the function of freezing and smashing meat, saving time and effort, keeping freshness and quality.
5. The twisting process takes a short time, the rising temperature is low, easy to keep fresh and extend shelf life.
3. Instructions
1. Before using the electric meat grinder, clean all parts that can be cleaned.
2. After assembling, turn on the power, wait for the machine to run normally, and then add the meat
3. Before grinding the meat, please deboned the meat and cut it into small pieces (thin strips) so as not to damage the machine
4. Charge and turn on the machine, when runs normally, add meat pieces.
5. The meat pieces must be added evenly and not too much, so as not to affect the damage to the motor. If the machine is running abnormally, the power should be cut off immediately, and check the reason after the machine is off.
6. If you notice leakage, ignition and others, you should immediately cut off the power supply and ask an electrician to repair it, don’t turn it on and repair it without permission.
7. Turn off the machine if you don’t use it, then clean the components, drain the water, and put them in a dry place for later use.
8. Before using, refer to the instruction. If you do not use it strictly according to the operating procedures, you will be responsible for the consequences.
4. Scope of application
Widely used in various sausages, ham sausages, pork luncheon meat, meatballs, salty ingredients, pet food and other meat processing industries.
5. Product Parameter
Model No. |
DBS-100 |
DBS-120 |
DBS-130 |
DBS-160 |
DBS-200 |
DBS-250 |
DBS-300 |
DBS-300B |
|
Equipment Size (mm) |
900*550*1000 |
1050*600*1050 |
1450*700*1050 |
1500*800*1200 |
1600*900*1440 |
1900*950*1600 |
2350*1000*1600 |
2600*1200*2000 |
Cage shaft length |
600 |
720 |
800 |
890 |
960 |
1420 |
1600 |
1480-1600 |
|
Cage speed (r/min) |
268-220 |
180 |
162 |
160 |
148 |
68 |
68 |
four-speed |
Voltage |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
|
Power (kw) |
4 |
7.5 |
15 |
22 |
30 |
45 |
55 |
93.5 |
|
Capacity (kg) |
500 |
1000 |
2000 |
3000 |
4000 |
6000 |
8000 |
12000 |
