Home > Electrical & Electronics > Electric Motor > DC Motor > Long Bo 12V 1.2kw Hydraulic DC Motor

Long Bo 12V 1.2kw Hydraulic DC Motor

Name: Long Bo 12V 1.2kw Hydraulic DC Motor
Brand: Long Bo
SKU: 171240145
Availability: InStock

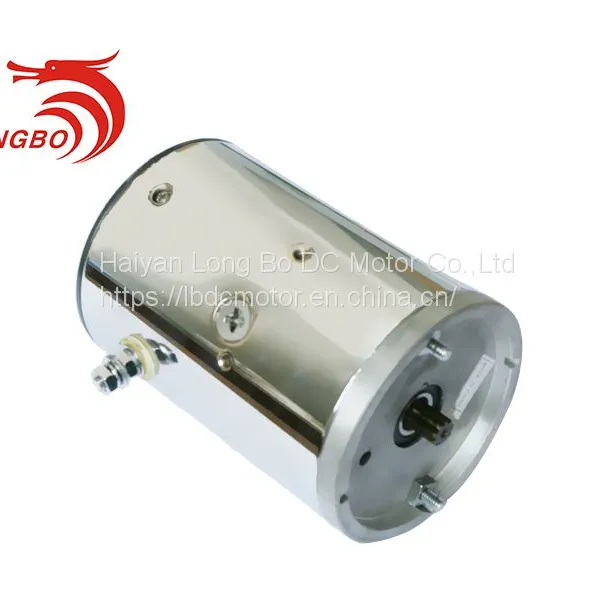

Long Bo 12V 1.2kw Hydraulic DC Motor thumbnail-1

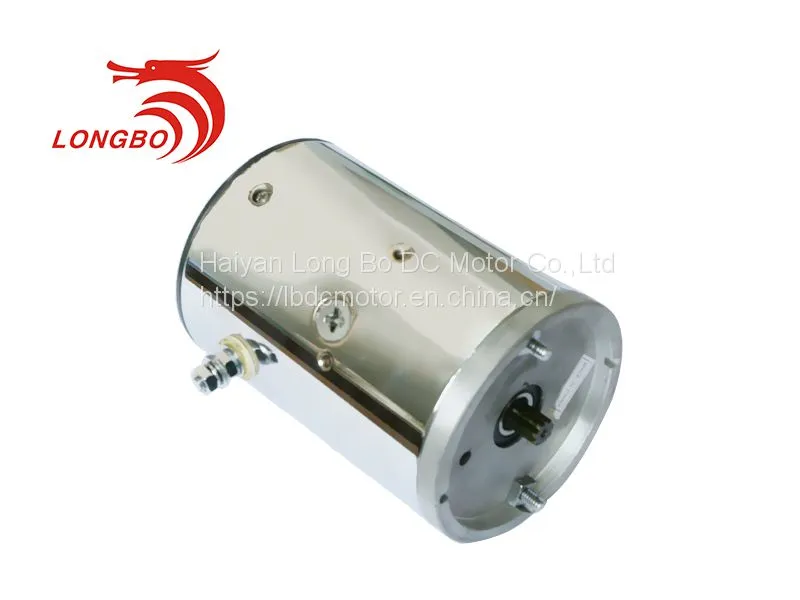

Long Bo 12V 1.2kw Hydraulic DC Motor photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Long Bo

Place of Origin:

China

Model Number:

HY61020

Contact Supplier Request Quote Chat Now

Haiyan Long Bo DC Motor Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

40 days

Product Details
Company Profile
Contact Us

Brand Name Long Bo

Place of Origin China

Model Number HY61020

Type Other

Certification CE

Usage Other

Construction Series Wound

Efficiency Other

Voltage(V) 12V

Output Power 1.2KW

Speed(RPM) 2550

Commutation Brush

Product Description

Features:
100% copper wire
stable running, high efficiency, low noise
good service after sale
12V, 24V, 48V etc. on your request
Customized production is available!
Supply for OEM Production!
nearly 15 years' manufacturing experience

Specification:
1) Type:HY61020
2) Voltage: 12V
3) Power: 1.2KW
4) Speed: ≥ 2500rpm
5) Rotation: CW
6) O.D. : 114mm or 4.5 inch
7)Operating mode: S2-2.5min
8) Insulation Class: F
9) Protection Degree: IP 54

Technical parameters of the motor HY61018

Type	Size	Rated voltage	Nominal power	Rotation speed	Rotation direction	Torque	Surface color
HY61020	4.5''	12v	1.2kw	≥ 2550rpm	CW	≥ 4.5N.m	Customized

Packaging
All motors are packaged by pallet to protect them during delivery!

FAQ
(Maybe you will have questions like followings)
Q1: Are you a manufacturer or trading company?
We are a professional manufacturer of dc motor since 1994.
Q2: What's payment terms you accept?
We accept T/T, L/C.

Q3: Can you supply sample for me? Are samples free?
Of course,we can supply sample for test. But you need pay for the relevant fee.

Q4: What's your MOQ?
MOQ is 50pcs.
Q5: Packing and delivery time?
1. Each motor are packaged by carton, then by wooden pallet to protect during shipment.We can pack with your advice.
2. About delivery, 3-7 days for samples; 20-50 days for order.

Q6: Do you offer guarantee for the products?
Yes, we offer 1 year warranty to our products.

Q7: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q8: How about shipping?
FOB shanghai.

Where is the DC motor used?

Hydraulic power unit
Oil pump
Lifting jack
Table lift
Car lift
Electric material handing
Fork lift truck/Stacker
Tail gate/Tailboard/ Tail lift
Vehicle tailgate
Van tailboard
Van door system
Winch
Lifting equipment
Oil pressure
Sanitation truck covering
Mechanical equipment
Snow plow
Tipper trailer
Garbage truck
Farm machinery
Waste collection vehicle
Other automation machinery

Information

Material	100%
Warranty	One year
Color	Can be customized
Logo	Your logo can be print
OEM	Accepted
Certification	Accepted
Product capacity	100000pcs per month

Company Information

Haiyan LONG BO DC motor company is a high-tech enterprise specialized in producing most kinds of DC motors. Its locates at industrial zone of Haiyan city, which is about 100 KM away from Shanghai&Hangzhou. The company occupies 10 acres, with the main plant of 5,000 squares meters and four production lines.

Long Bo company providing research and development, production and sales at the same time, offers a variety of DC motors and related motor accessories at home and abroad.

Motors can be customized according to customer's needs. We currently produce 100,000PCS motors per year and offer more than 100 models to customers in USA and most of European countries.

The company has obtained ISO9001 certification, and we are open to obtain more certificates according to customers' needs. Haiyan Long Bo company has excellent management skills, strong technical force, advanced equipment, complete testing methods and excellent quality.
