Home > Products > manual adjustable iris > 1.5~23mm Manual focus iris for vari-focal mechanical vision lens SLR camera lens follow spotlight

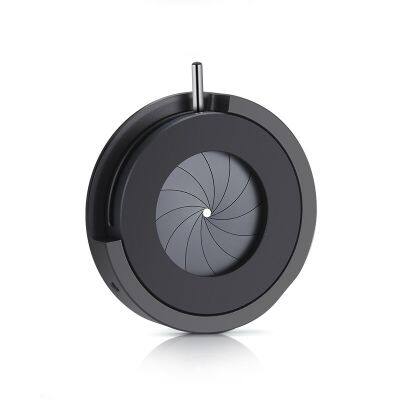

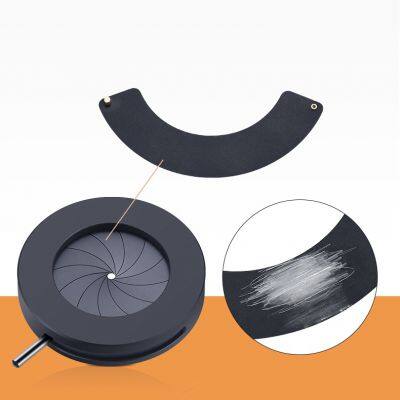

1.5~23mm Manual focus iris for vari-focal mechanical vision lens SLR camera lens follow spotlight

Name: 1.5~23mm Manual focus iris for vari-focal mechanical vision lens SLR camera lens follow spotlight
Brand: CCHT
Availability: InStock

FOB Price

USD $16.2 - $20.2 / Piece

100 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Chengdu
Payment TermsT/T Credit Card PayPal
Delivery Detail14 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CCHT		Place of Origin	China
Model Number	09-004-045

Product Description

Technical parameters of manual iris
No.	Model No.	Aperture Hole Diameter(mm)		Diameter (mm)	Thickness (mm)	Blade Q'ty (pcs)	Lever Length (mm)
No.	Model No.	Min.	Max.	Diameter (mm)	Thickness (mm)	Blade Q'ty (pcs)	Lever Length (mm)
1	01-004-004	0.35	8.2	23	3.5	8
2	01-004-007	0	7.2	32	3.5	5	5
3	01-004-010	1.3	20	32	3.8	10	5.6
4	09-004-001	0.8	6	13	6	8
5	09-004-002	0.5	7.5	14	5.5	8	4.5
6	09-004-003	0.8	8	14.8	4.5	8	6.5
7	09-004-004	0.8	9.5	16.4	4.1	8	5.5
8	09-004-005	1	10.4	22	7.1	9	4.5
9	09-004-006	0.5	10.6	20.5	6.7	9
10	09-004-007	0	11.8	23.2	3.5	6	9
11	09-004-008	1	12	19.8	5	10	4.5
12	09-004-009	1	14	26.3/23.8	2.2-4	10	8
13	09-004-010	0.5	15	28	9	12	8
14	09-004-011	1	16	26	4.8	10	8
15	09-004-012	1.5	17	32.5	6	10	5.5
16	09-004-013	1	18	30	4.9	10	6
17	09-004-014	1	18	28	5	12	6.5
18	09-004-015	4.5	18	34	3.1	10	10
19	09-004-016	1.5	18.7	31	4	10
20	09-004-017	1.5	18.7	32.5	6	7	5.5
21	09-004-018	1	18.9	31.3	4	10	7
22	09-004-019	1	20	30	5.5	12	15
23	09-004-020	1.8	22	41	3.3	11	12
24	09-004-021	1.5	23	37	7	12	10
25	09-004-022	1.5	25	37	7	14	6.5
26	09-004-023	1.5	26	38	6	14	5
27	09-004-024	2	28	50	16.8	12
28	09-004-025	1	29	44	6	10	5
29	09-004-026	2	29	51.8	4.8	11	12
30	09-004-027	1.5	33	53	6	12	5.5
31	09-004-028	1.5	34	49	5.6	14	15
32	09-004-029	1.5	36	50	6	18	7.5
33	09-004-030	2.5	36	56	6	14	15
34	09-004-031	1.5	37	53	6	16	15.5
35	09-004-032	2.5	42	58	6.5	18	24
36	09-004-033	2	44	60	6	16	6.5
37	09-004-034	2	50	76.5	7.1	11	7.5
38	09-004-035	2	50	92	12.2	11
39	09-004-036	2	50	70	7.8	16
40	09-004-037	3	52	73	8	14	18
41	09-004-038	4	60	82	8	18	22
42	09-004-039	0.3	6	13	6	8	6.5
43	09-004-040	1	11	20.5	6.7	10	8.5
44	09-004-041	0.5	7.5	Holder 23	Holder 6.5	8	4.5
45	09-004-042	1	12	Holder 27	Holder 8	8	4.5
46	09-004-043	1	18	Holder 36	Holder 7	10	6
47	09-004-044	1	20	Holder 36	Holder 7	12	15
48	09-004-045	1.5	23	Holder 44	Holder 8	12	10
49	09-004-046	1.5	25	Holder 44	Holder 8	14	6.5
50	09-004-047	1.5	34	Holder 55	Holder 7	14	15
51	09-004-048	2.5	42	Holder 66	Holder 8	18	24
52	09-004-049	3	52	Holder 84	Holder 9.4	14	18
53	09-004-050	4	60	Holder 90	Holder 9	18	22
