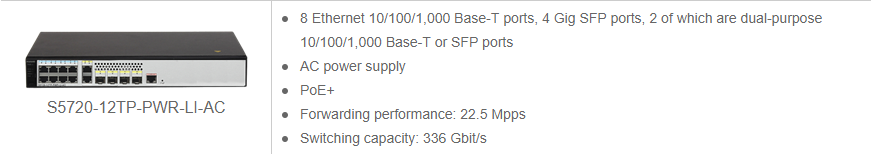

Product Overview for S5720-12TP-PWR-LI-AC
| Product | S5720-12TP-PWR-LI-AC |
| Product Description | S5720-12TP-PWR-LI-AC(8 Ethernet 10/100/1000 PoE+ ports.2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP.124W PoE AC 110/220V) |
| Dimensions (W x D x H) | 320 mm x 220 mm x 43.6 mm |
| Input Voltage | AC:
|
| Maximum Power Consumption |
|
| Typical Power Consumption (without PoE) | 14.57W |
| Operating Environment |
Operating temperature: 0m to 1,800m altitude: -5°C to +45°C 1,800m to 5,000m altitude: The operating temperature reduces by 1°C for each 220m increase in altitude. Relative humidity: 5% to 95% (non-condensing) |
| Heat Dissipation | Natural heat dissipation without fans |
Service features
| Item | Description |
|---|---|
| MAC Address Table | 16K MAC address entries |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| Interface-based MAC learning limiting | |
| VLAN Features | 4094 VLANs |
| Guest VLAN and voice VLAN | |
| GVRP | |
| MUX VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces | |
| 1: 1 and N: 1 VLAN mapping | |
| Jumbo Frame | 10K |
| Ethernet Loop Protection | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover | |
| SEP | |
| ERPS (G.8032) | |
| STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| BPDU protection, root protection, and loop protection | |
| BPDU tunnel | |
| Multicast | PIM DM, PIM SM, PIM SSM |
| IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping | |
| MLD v1/v2 and MLDv1/v2 snooping | |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Interface-based multicast traffic statistics | |
| IP Routing | Static route, RIP, RIPng, OSPF, and OSPFv3 |
| IPv6 Features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| Reliability | EFM OAM (802.3ah) |
| CFM OAM (802.1ag) | |
| ITU-Y.1731 | |
| DLDP | |
| LACP | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Interface-based traffic policing and two-rate and three-color CAR | |
| Eight queues on each interface | |
| WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on interfaces | |
| Security | Hierarchical user management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface number, and VLAN ID | |
| Port isolation, port security, and sticky MAC | |
| MFF | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| IEEE 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC | |
| SSH V2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| DHCP relay, DHCP server, and DHCP snooping | |
| DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping Supports separation between user authentication and policy enforcement points | |
| Lightning Protection | Service interface: 7 kV |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration |
| Automatically loading the system software package and patches of clients One-click | |
| and automatic delivery of service configurations | |
| Supports independent running client | |
| Management and Maintenance | iStack |
| Virtual Cable Test (VCT) | |
| Remote configuration and maintenance using Telnet | |
| SNMPv1/v2c/v3 | |
| RMON | |
| eSight and web-based NMS | |
| HTTPS | |
| LLDP/LLDP-MED | |
| System logs and multi-level alarms | |
| 802.3az EEE | |
| Dying Gasp (S5720-X-LI series) | |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP) | |
| Supports VCMP (Similar to VTP) |
