Help CenterAnti-Wear Curve Internally Basalted
Related Products

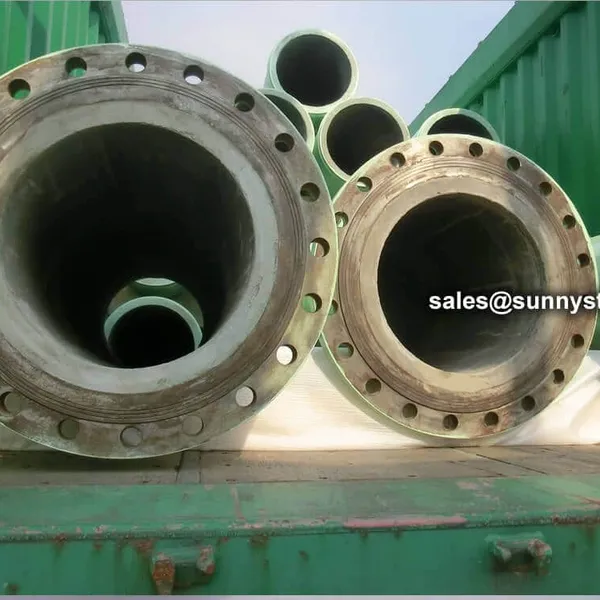

Anti-wear curve internally basalted is composed by lined with cast basalt pipe, outside steel pipe and cement mortar filling between the two layers. Anti-wear curve internally basalted combines the advantages of cast basalt and steel pipe, wear resistance, corrosion resistance, anti-high-pressure, transportation and easy installation.
This greatly improves the products adaptive capacity of complicated operation conditions. At the same time cement mortar is selected as the filling material and this can make the inside surface of steel pipe in alkali mediums. So the surface of steel pipe generates purifying films These films can prevent being rusted.
As hydraulic or pneumatic conveying worn or corrosive wear resistance, corrosion resistant lining material pipe can effectively protect the pipe prolong the service life of pipelines.
The whole production process of cast basalt wear resistant materials are completely finished under the monitoring of internal control procedures for the safe and orderly.
Main specification of cast basalt lined steel pipe
| Cast Basalt Pipe DN | Standard Steel Pipe OD | Cast Basalt Thickness | Length |
|---|---|---|---|
| （mm） | （mm） | （mm） | （mm） |
| 80 | 159 | 25 | 4000 |
| 100 | 168 | 17.5 20 |
4000 6000 8000 |
| 125 | 195 | ||
| 150 | 219 | ||
| 175 | 245 | 6000 8000 10000 12000 |
|
| 200 | 273 | ||
| 225 | 300 | ||
| 250 | 325 | ||
| 275 | 345 | ||
| 300 | 377 | ||
| 350 | 426 | ||
| 400 | 478 | 20 25 |
|
| 450 | 529 | ||
| 500 | 600 | 25 | |
| 550 | 650 | ||
| 600 | 720 | 30 | 6000 |
| 650 | 770 | ||
| 700 | 820 | ||
| 750 | 870 | ||
| 800 | 920 |
Other specifications of cast steel pipe lined with basalt can be manufactured according to customer technical requirements. Suitable for large-diameter basalt lining steel pipes with a nominal diameter greater than 800mm. Generally, according to the running status of the pipeline, different cement is used to fix the basalt brick inside the finished steel pipe to complete the basalt lining steel pipe. Its advantages are good wear resistance, wide range of use, basically not limited by the size of the pipeline and low cost of pipeline installation.
Cast basalt pipe can be divided into straight pipe, elbow, three-way (four-way) pipe and variable diameter pipe, etc.
Comparision Chart
Comparison of Ceramic lines with few other materials under standard conditions
| Material | Thickness(mm) | Approx life ( Months ) |
|---|---|---|
| Mild Steel | 10 | |
| Cast Iron | 20 | |
| Ni-Hard | 20 | |
| Cast Basalt | 30 | 20-25 |
| Ceramic | 10 | 35-40 |
The excellent performance of cast basalt lined steel pipe is that it sets tenacity of steel pipe, abrasive resistance of cast basalt pipe, concreteness of cement mortar in one.
Chemical substance ( weight %) of cast basalt
| SiO2 | Al2O2 | Fe2O3 | TiO2 | CaO | MgO | K2O | Na2O | FeO | P2O5 |
|---|---|---|---|---|---|---|---|---|---|
| 43.13-41.12 | 12.5-13.52 | 8.64-9.5 | 2.02-2.62 | 9.05-10.22 | 8.65-10.47 | 1.4-1.75 | 4.62-5.28 | 4.82-6.25 | 1.1-1.38 |
This greatly improves the products adaptive capacity in complicated operation conditions. At the same time. Cement mortar is selected as the filling material and this can make the inside surface of steel pipe in alkali mediums. So the surface of steel pipe generates purifying films. These films can prevent being rusted.
Physical performance of cast basalt products
| Category | Attribute |
|---|---|
| Density | 3g/cm3 |
| Compressive Strength | ≥ 450MPa |
| Bending strength | ≥ 60MPa |
| Impact strength | 1.76KJ/M2 |
| Abrasive strength | 0.07g/cm2 |
| Vickers scale | ≥ 720kg/mm |
| Elasticity modulus | 1.67x105MPa |
| Dilatation coefficient (60℃) | 8.92x10-6 |
| Chemical Attack Resistance | |
| 95%-98% H2SO4 | ≥ 98% |
| 20%H2S4 | ≥ 94% |
| 20 %NaOH | ≥ 98% |
