Home > Products > CCTV lens/Security monitoring lens > 12-50mm 4X 5MP CS Mount DC Iris Zoom Security Monitoring CCTV Lens

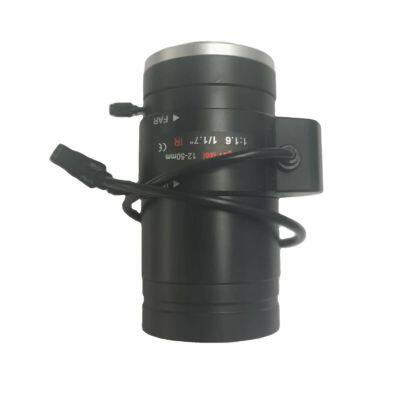

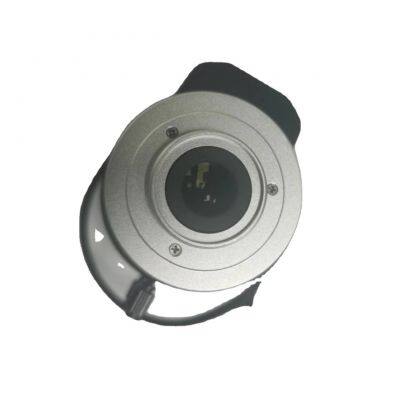

12-50mm 4X 5MP CS Mount DC Iris Zoom Security Monitoring CCTV Lens

Name: 12-50mm 4X 5MP CS Mount DC Iris Zoom Security Monitoring CCTV Lens
Brand: CCHT
Availability: InStock

FOB Price

USD $59 - $68 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Chengdu
Payment TermsT/T Credit Card PayPal
Delivery Detail14 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CCHT		Place of Origin	China
Model Number	10-009-031

Product Description

Technical Parameters of Security Monitoring Lens

No.	Model No.	Pixel	Sensor size	FL (mm)	Interface	Iris	FNO	BFL(mm)	Working temperature
1	10-009-001	8MP	1"	12-36	C	Manual	F1.6	11.6	-20ºC~+60ºC
2	10-009-002	5MP	1/2.7"	2.8-12	CS	Manual	F1.8	7.15~13.05	-20ºC~+60ºC
3	10-009-003	8MP	1/1.8"	3.8-16	CS	Manual	F1.5	12.53	-20ºC~+60ºC
4	10-009-004	5MP	1/1.7"	12-50	CS	Manual	F1.6	>8.26	-30ºC~+70ºC
5	10-009-005	6MP	1/2.7"	5-50	CS	Manual	F1.4	7.3	-20ºC~+60ºC
6	10-009-021	5MP	1/2.5"	2.8-9.0	CS	DC-Iris	F1.4		-20ºC~+60ºC
7	10-009-022	4MP	1/2.7"	2.8-12	CS	DC-Iris	F1.4	12.53	-20ºC~+60ºC
8	10-009-023	5MP	1/2.7"	2.8-12	CS	DC-Iris	F1.4		-20ºC~+60ºC
9	10-009-024	6MP	1/1.8"	3.6-10	CS	DC-Iris	F1.6		-20ºC~+60ºC
10	10-009-025	5MP	1/2.5"	6-22	CS	DC-Iris	F1.6		-20ºC~+60ºC
11	10-009-026	4MP	1/2.7"	5-50	CS	DC-Iris	F1.6		-20ºC~+60ºC
12	10-009-027	6MP	1/2.7"	5-50	CS	DC-Iris	F1.4	7.3	-20ºC~+60ºC
13	10-009-028	2MP	9.2"	50-750	Non-standard	P-Iris	F3.5		-20ºC~+60ºC
14	10-009-029	3MP	1/1.8"	4-18	C	DC-Iris	F1.6		-20ºC~+60ºC
15	10-009-030	8MP	1/1.8"	3.8-16	CS	DC-Iris	F1.5		-20ºC~+60ºC
16	10-009-031	5MP	1/1.7"	12-50	CS	DC-Iris	F1.6	>8.26	-30ºC~+70ºC
17	10-009-032	8MP	1/1.7"	8-25	CS	DC-Iris	F1.4		-20ºC~+60ºC
18	10-009-033	8MP	1/1.7"	11-50	CS	DC-Iris	F1.4		-20ºC~+60ºC
19	10-009-034	8MP	1/1.7"	16-70	C	DC-Iris	F1.4	8.58~11.69	-30ºC~+70ºC
20	10-009-035	8MP	1/1.7"	12-36	C	DC-Iris	F1.6		-20ºC~+60ºC
21	10-009-036	12MP	1/1.8"	12-40	CS	P-Iris	F1.6		-20ºC~+60ºC
22	10-009-037	8MP	1/1.2"	20-70	CS	P-Iris	F1.3-1.5		-20ºC~+60ºC
23	10-009-038	3MP	2/3"	8-20	C	Manual Iris	F1.7		-20ºC~+60ºC
24	10-009-039	8MP	1/1.8"	10-50	Non-standard	DC-Iris	F1.3-1.5		-20ºC~+60ºC
25	10-009-064	8MP	1/1.7"	35	M12	Manual	F2.4	7.569	-30ºC~+70ºC
26	10-009-065	12MP	1/1.7"	50	M12	Manual	F2.8	24.2	-30ºC~+70ºC
