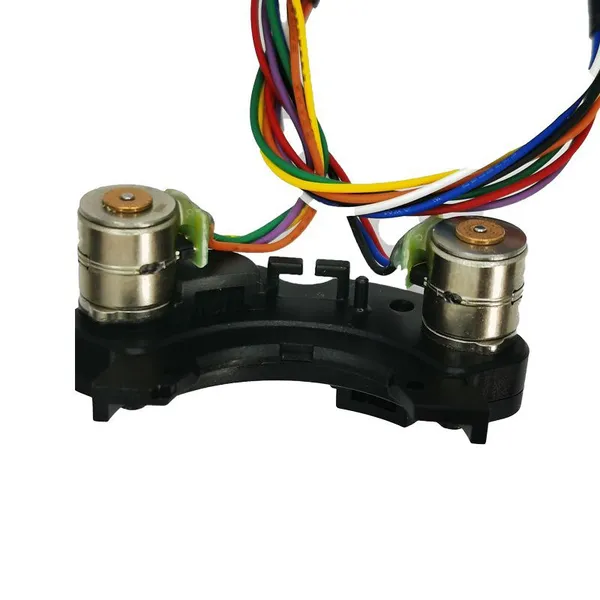

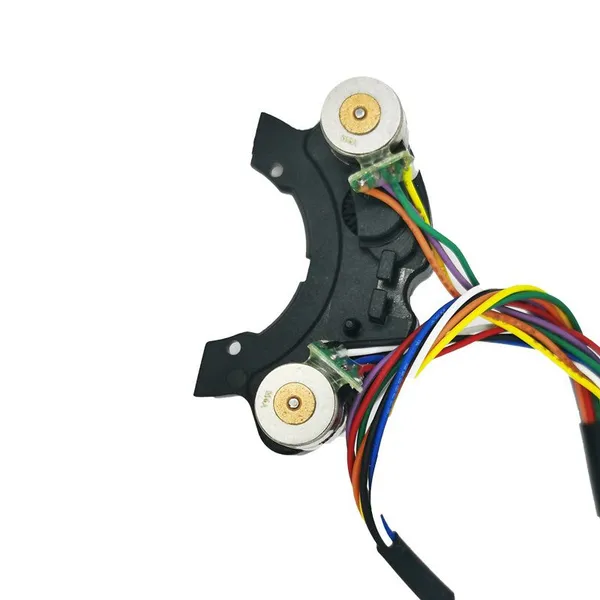

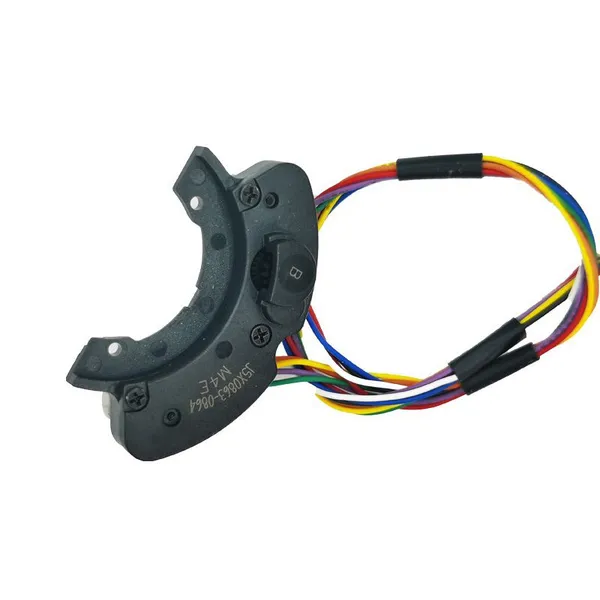

8mm DC Micro Stepper Mini Stepping Motor

Chengdu Century Huasha Trading Co.,Ltd.
8mm DC Micro Stepper Mini Stepping Motor thumbnail-1
8mm DC Micro Stepper Mini Stepping Motor thumbnail-2
8mm DC Micro Stepper Mini Stepping Motor thumbnail-3
8mm DC Micro Stepper Mini Stepping Motor photo-1
8mm DC Micro Stepper Mini Stepping Motor photo-2
8mm DC Micro Stepper Mini Stepping Motor photo-3
US$ 2.7 - 22.2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
CCHT
Place of Origin:
China
Model Number:
07-005-031
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
14 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CCHT
Place of Origin China
Model Number 07-005-031
Technical Parameter of Micro Stepper Motor
No.Model No.OD
(mm)		Step Angle
(°)		Existation
Method		Drive
Mode		Voltage
(V DC)		Current
/Phase
(mA)		Resistance
/Phase
(Ω)		Output Torque
(gf.cm)		Insolution resistance
(Ω)		Noise
(dB)		Working
environment temperature(ºC)
101-005-001Φ8182-2 Phase ExcitingBI-Polar Drive5.0 /30100.00 100V AC, 1S≤50-40~+80
207-005-001Φ6182-2 Phase ExcitingBI-Polar Drive3.3 3004020.00 100V AC, 1S≤50-20~+80
307-005-002Φ6182-2 Phase ExcitingBI-Polar Drive3.3 16520/100V AC, 1S≤50-20~+80
407-005-011Φ6182-2 Phase ExcitingBI-Polar Drive3.3 110300.06 100V AC, 1S≤50-20~+80
507-005-016Φ6182-2 Phase ExcitingBI-Polar Drive3.3 300140.20 100V AC, 1S≤50-20~+80
607-005-027Φ8182-2 Phase ExcitingBI-Polar Drive3.3 1602080.00 100V AC, 1S≤50-20~+80
707-005-031Φ8182-2 Phase ExcitingBI-Polar Drive3.3 250200.15 300V AC, 1S≤50-20~+80
807-005-032Φ8182-2 Phase ExcitingBI-Polar Drive3.3 165201.50 100V AC, 1S≤50-20~+80
907-005-033Φ8182-2 Phase ExcitingBI-Polar Drive3.3 160200.25 100V AC, 1S≤50-20~+80
1007-005-034Φ8182-2 Phase ExcitingBI-Polar Drive5.0 100500.23 100V AC, 1S≤50-20~+80
1107-005-036Φ8182-2 Phase ExcitingBI-Polar Drive5.0 450140.60 300V AC, 1S≤50-20~+80
1207-005-041Φ10182-2 Phase ExcitingBI-Polar Drive5.0 90550.30 300V AC, 1S≤50-20~+80
1307-005-042Φ10182-2 Phase ExcitingBI-Polar Drive5.0 90550.30 300V AC, 1S≤50-20~+80
1407-005-043Φ10182-2 Phase ExcitingBI-Polar Drive5.0 160315.00 100V AC, 1S≤50-20~+80
1507-005-044Φ100.362-2 Phase ExcitingBI-Polar Drive5.0 160317.00 100V AC, 1S≤50-20~+80
1607-005-060Φ15182-2 Phase ExcitingBI-Polar Drive12.0 40031180.00 100V AC, 1S≤50-20~+80
1707-005-061Φ15182-2 Phase ExcitingBI-Polar Drive6.0 30015200.00 100V AC, 1S≤50-20~+80
1807-005-062Φ15182-2 Phase ExcitingBI-Polar Drive6.0 30015200.00 100V AC, 1S≤50-20~+80
1907-005-079Φ15182-2 Phase ExcitingBI-Polar Drive12.0 76031720.00 100V AC, 1S≤50-20~+80
2007-005-081Φ20182-2 Phase ExcitingBI-Polar Drive12.0 3004030.00 100V AC, 1S≤50-20~+80
