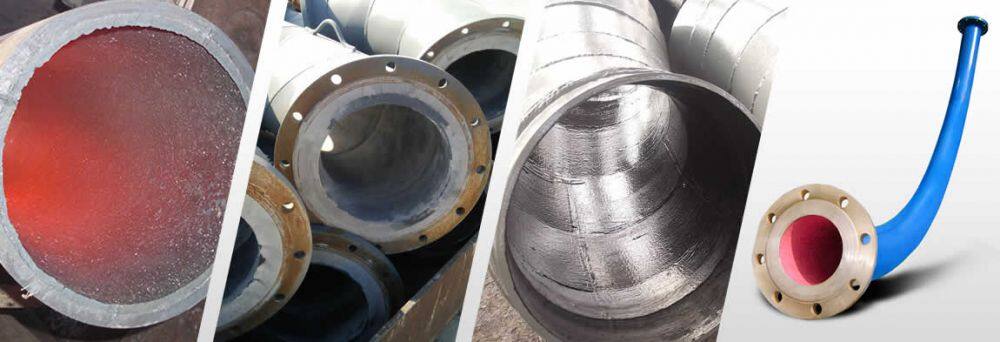

Cast Basalt Pipes And Cylinder

Cast Basalt Pipes and Cylinder have excellent resistance to abrasion and corrosion, and can be used as gas, hydraulic power or and corrosive materials transmission wear lined slurry pipeline systems in electric power, chemical industry, metallurgy, mining and coal.

Our factory can produce cast basalt pipe of nominal diameter φ40mm ~ φ800mm, which φ600mm above the large-diameter, 1000mm length tube is the exclusive production of cast basalt pipes.

Adopt centrifugal casting manufacturing cast basalt pipe reducer. Molten lava in the vacuum state is poured into the high-speed rotation the centrifuge. In fixed standard time to exit the centrifuge into the annealing furnace. Cast basalt pipes have an excellent performance of high abrasive and high corrosion resistance. Often in the form of cast basalt pipe reducer appeared in various operating conditions the pump outlet location.

As hydraulic or pneumatic conveying worn or corrosive wear resistance, corrosion resistant lining material pipe can effectively protect the pipe prolong the service life of pipelines.

The whole production process of cast basalt wear resistant materials are completely finished under the monitoring of internal control procedures for the safe and orderly.

Main specification of cast basalt lined steel pipe

Other specifications of cast steel pipe lined with basalt can be manufactured according to customer technical requirements. Suitable for large-diameter basalt lining steel pipes with a nominal diameter greater than 800mm. Generally, according to the running status of the pipeline, different cement is used to fix the basalt brick inside the finished steel pipe to complete the basalt lining steel pipe. Its advantages are good wear resistance, wide range of use, basically not limited by the size of the pipeline and low cost of pipeline installation.

Cast basalt pipe can be divided into straight pipe, elbow, three-way (four-way) pipe and variable diameter pipe, etc.

Comparision Chart

Comparison of Ceramic lines with few other materials under standard conditions

The excellent performance of cast basalt lined steel pipe is that it sets tenacity of steel pipe, abrasive resistance of cast basalt pipe, concreteness of cement mortar in one.

Chemical substance ( weight %) of cast basalt

This greatly improves the products adaptive capacity in complicated operation conditions. At the same time. Cement mortar is selected as the filling material and this can make the inside surface of steel pipe in alkali mediums. So the surface of steel pipe generates purifying films. These films can prevent being rusted.

Physical performance of cast basalt products
