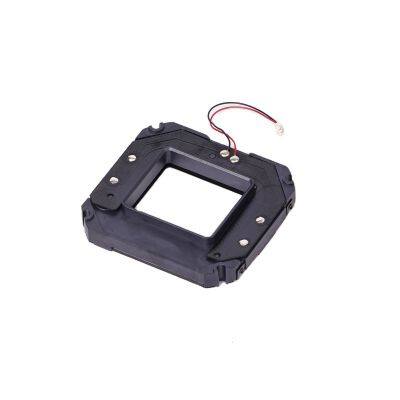

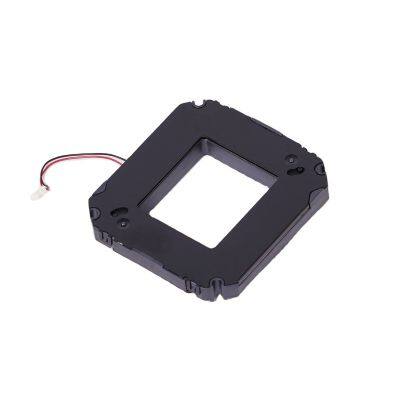

IR infrared thermal imaging shutter for night vision thermal camera face recognition camera

FOB Price

USD $10 - $22 / Piece

100 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Chengdu
Payment TermsT/T Credit Card PayPal
Delivery Detail14 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CCHT		Place of Origin	China
Model Number	01-002-222

Product Description

Technical Parameter of Thermal Imaging Shutter
NO.	Model No.	Dimensions (mm)	Opening/ Blade size (mm)	Blade				Resistance	Driving Voltage	Life (CS Min)
NO.	Model No.	Dimensions (mm)	Opening/ Blade size (mm)	Q'ty (pcs)	Action Mode	Material	Surface Treatment	Resistance	Driving Voltage	Life (CS Min)
1	01-002-001	42.26x20x15.2	14x16	1	Swing type	Aluminium	Andic oxidation treated	25Ω±20%	2.5V DC	100,000
2	01-002-008	21.6x13.3x13.9	Φ8	1	Swing type	Aluminium	Andic oxidation treated	25Ω±10%	3.3V DC	1,000,000
3	01-002-037	27.6x29.35x11.6	14x16	1	Swing type	Aluminium	Andic oxidation treated	/	3.3V DC	100,000
4	01-002-041	10.8x4.3x5..25	5.6x4.4	1	Swing type	LCP	Matte	35Ω±10%	3.3V DC	200,000
5	01-002-043	11x6.85x5.2	6.4x5.18	1	Swing type	LCP	Matte	15Ω±10%	3.3V DC	1,000,000
6	01-002-044	10x5x5.4	5.6x4.4	1	Swing type	LCP	Matte	35Ω±10%	3.3V DC	200,000
7	01-002-045	9.5x4.5x5.5	5x6.57	1	Swing type	Aluminium	Andic oxidation treated	15Ω±10%	3.3V DC	500,000
8	01-002-062	34.85x14x6.65	7x8	1	Drawer type	Aluminium	Andic oxidation treated	20Ω±10%	3.3V DC	1,000,000
9	01-002-082	40.5x22x4.7	12x14	1	Drawer type	PET	Carbon coated	/	3.3V DC	1,000,000
10	01-002-083	32.5x24.5x13.7	8x8	1	Drawer type	Aluminium	Andic oxidation treated	/	4.0V DC	100,000
11	01-002-084	45x23x8	14.4x12.9	1	Drawer type	Aluminium	Andic oxidation treated	13Ω±10%	3.3V DC	1,000,000
12	01-002-085	13.65x5x3.85	Φ3	1	Drawer type	Aluminium	Andic oxidation treated	10Ω±11%	4.2V DC	25,000
13	01-002-086	19.2x19.2x6.35	Φ6.4	1	Drawer type	Aluminium	Andic oxidation treated	12Ω±10%	4.0V DC	500,000
14	01-002-087	28.4x28x14.1	Φ12.6	1	Drawer type	Aluminium	Andic oxidation treated	20Ω±10%	3.3V DC	1,000,000
15	01-002-114	34.5x35x8.2	13.5x15.5	2	Split type	PET	Carbon coated	35Ω±10%	3.3V DC	200,000
16	01-002-115	38.2x36x7.1	15.8x18	2	Split type	PET	Carbon coated	15Ω±10%	3.3V DC	500,000
17	01-002-116	21x21x4.65	7.5x9	2	Split type	PET	Carbon coated	15Ω±10%	4.0V DC	500,000
18	01-002-118	50x50x6.8	20.5x21.5	2	Split type	PET	Carbon coated	15Ω±10%	4.0V DC	500,000
19	01-002-119	36x18.65x13.7	Φ11	2	Split type	PET	Carbon coated	90Ω±10%	3.3V DC	300,000
20	01-002-120	38.2x36x7.1	15.8x18	2	Split type	PET	Carbon coated	19Ω	5.0V DC	500,000
21	01-002-122	Φ38	12x12	2	Split type	PET	Carbon coated	10Ω±10%	3.3V DC	500,000
22	01-002-123	/	Φ7.2	2	Split type	PET	Carbon coated	8Ω±10%	3.3V DC	500,000
23	01-002-127	31.84x24x4	13x11.5	2	Split type	PET	Carbon coated	11Ω±10%	3.3V DC	1,000,000
24	01-002-128	40x30x3.3	16.5x14.5	2	Split type	PET	Carbon coated	17Ω±10%	5.0V DC	1,000,000
25	01-002-130	36x18.65x13.7	Φ11	2	Split type	PET	Carbon coated	90Ω±10%	4.5V DC	300,000
26	01-002-211	Φ55	Φ28	4	Split type	PET	Carbon coated	6.5Ω/8Ω±10%	2.5V DC	500,000
27	01-002-213	26x26x4.2	15.5x13.5	4	Split type	PET	Carbon coated	16Ω±10%	3.3V DC	500,000
28	01-002-215	26x26x4.2	15.5x13.5	4	Split type	PET	Carbon coated	16Ω±10%	3.3V DC	500,000
29	01-002-216	21x21x3.45	11.1x10.1	4	Split type	PET	Carbon coated	16Ω±10%	3.3V DC	500,000
30	01-002-217	42x42x5	24x21	4	Split type	PET	Carbon coated	≥10Ω	3.3V DC	500,000
31	01-002-219	26x26x4.2	15.5x13.5	4	Split type	PET	Carbon coated	16Ω±10%	3.3V DC	500,000
32	01-002-222	38.72x36x6.2	20.77x18.18	4	Split type	PET	Carbon coated	≥10Ω	4.0V DC	500,000
33	01-002-261	21x21x6.85	11.1x10.1	6	Split type	PET	Carbon coated	16Ω±10%	3.3V DC	500,000
