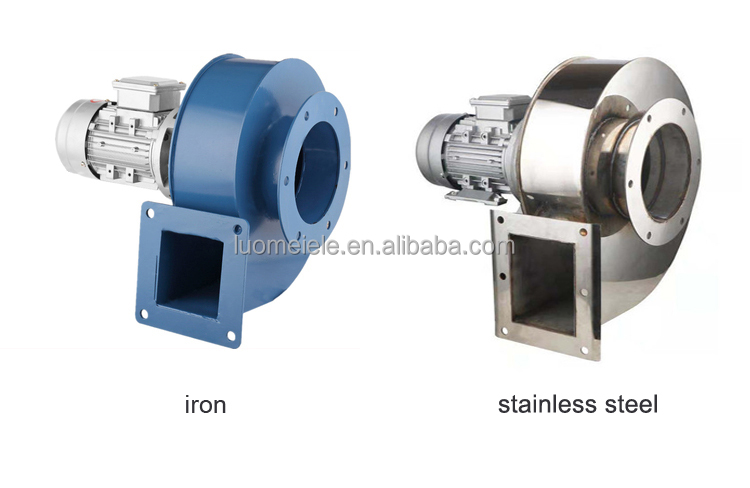

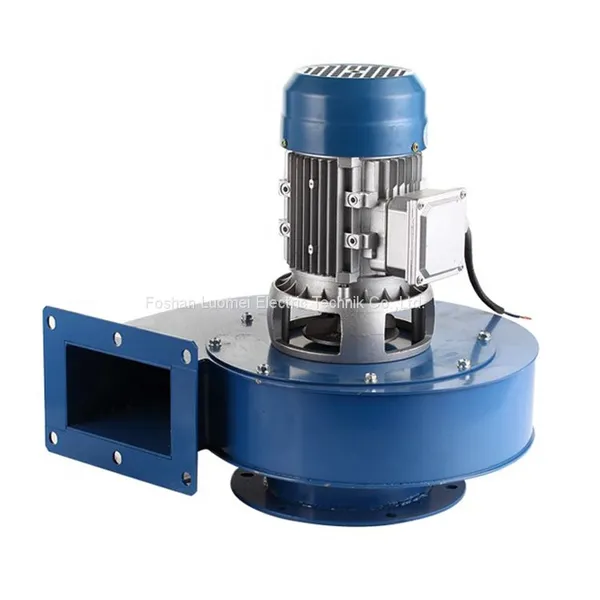

Help CenterCast Iron Centrifugal Blower Fan
Related Products
-
Plastic Dryer' Blowder Hopper Dryer Blower Motor PriceUS$ 10 - 300MOQ: 1 Piece -
Low Noise Dust Collector Impeller Radial Centrifugal Industrial Induced Draft Sawdust Fans BlowerUS$ 10 - 2000MOQ: 1 Piece
-
Belt Type Sawdust Blower Fan Without Electric MotorUS$ 10 - 2000MOQ: 1 Piece
-
Turbo Blower TaiwanUS$ 134 - 134MOQ: 1 Piece
-
Air Circulation Fan ac Industrial Blower Centrifugal Fan ManufacturersUS$ 134 - 134MOQ: 1 Piece
- High temperature resistance, high efficiency, high air volume, low vibration, low noise, laser cuttingof wind shells,
beautiful shape
-- Y2 aluminium alloy die casting material is used in the motor, which greatly reduces weight, achieveslightweight,
convenient istallation and novel shape. The main components of the motor are high temperature resistant materials (high temperaturebe arings. high temperature grease, high temperature insulation materials, etc.).

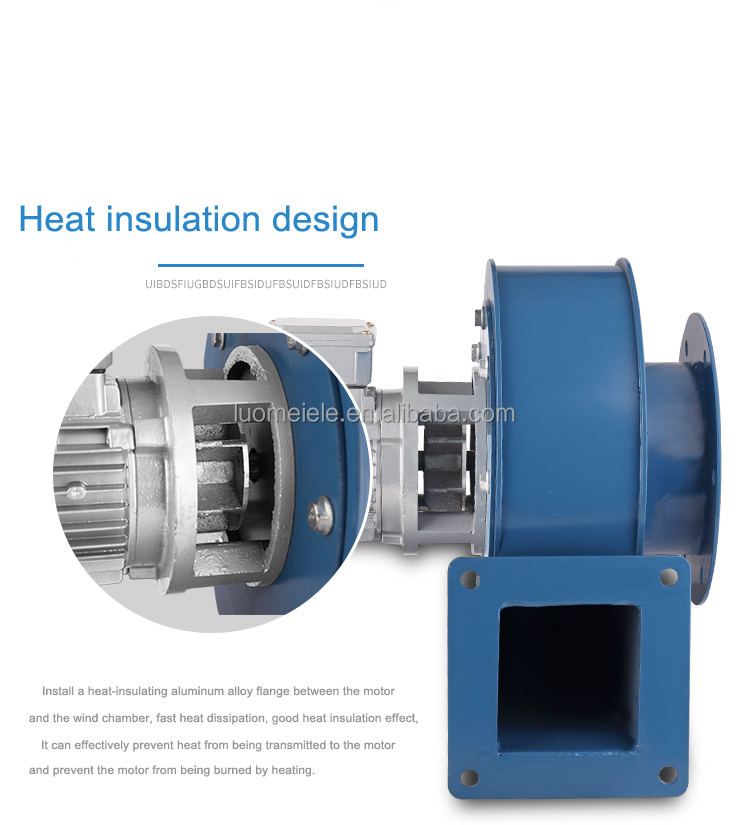

-- The motor is cooled by connecting the heat insulating connecting seat (with internal cooling vanes) with the wind
housing to ensure the normal operation of the motor at high temperature
-- widely used in heating furnace, hot air stove, numerical control boiler, steam boiler, drying,chemical industry, food,
grain machineryAnd other related industries.
-- Normal operating temperature of fan: 180C-200C
| Model | Power | Voltage | Frequency | Speed | Flow | Pressure |
| YN5-47-060 | 60W | 220V/380V | 50HZ | 2800r/min | 240m3/h | 310Pa |
| YN5-47-090 | 90W | 220V/380V | 50HZ | 2800r/min | 350m3/h | 360Pa |
| YN5-47-120 | 120W | 220V/380V | 50HZ | 2800r/min | 480m3/h | 450Pa |
| YN5-47-180 | 180W | 220V/380V | 50HZ | 2800r/min | 650m3/h | 510Pa |
| YN5-47-250 | 250W | 220V/380V | 50HZ | 2800r/min | 860m3/h | 580Pa |
| YN5-47-370 | 370W | 220V/380V | 50HZ | 2800r/min | 1100m3/h | 650Pa |
| YN5-47-550 | 550W | 220V/380V | 50HZ | 2800r/min | 1450m3/h | 680Pa |
| YN5-47-750 | 750W | 220V/380V | 50HZ | 2800r/min | 1810m3/h | 790Pa |
| YN5-47-1100 | 1100W | 220V/380V | 50HZ | 2800r/min | 2250m3/h | 940Pa |
| YN5-47-1500 | 1500W | 220V/380V | 50HZ | 2800r/min | 2800m3/h | 1140Pa |
| YN5-47-2200 | 2200W | 220V/380V | 50HZ | 2800r/min | 3100m3/h | 1280Pa |
| YN5-47-3000 | 3000W | 380V | 50HZ | 2800r/min | 3800m3/h | 1580Pa |
