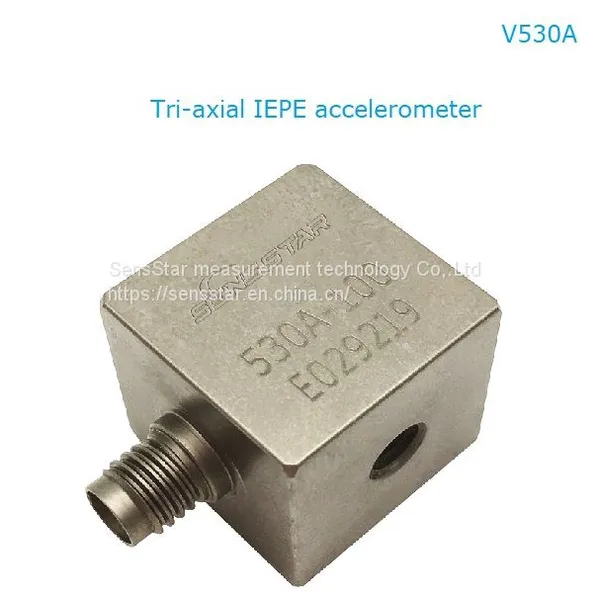

Help CenterV530A Miniature Tri-axial IEPE Accelerometer,vibration Sensor
Related Products
-
V517A Single Axial Shock Test IEPE Accelerometer,vibration SensorUS$ 200 - 400MOQ: 1 Piece -
V560A Tri-axial Low Frequency Accelerometer,IEPE Vibration SensorUS$ 200 - 400MOQ: 1 Piece
-
V374A Seismic Accelerometer ,10-20V/g High Sensitivity Vibration SensorUS$ 200 - 400MOQ: 1 Piece
-
Tri-axial CAN-Modbus Digital Output Accelerometer V835 3-axes SensorUS$ 200 - 400MOQ: 1 Piece
-
V341/V340VT Water Proof Industrial Vibration Sensor,Integrated Side Exit Cable Vibration & Temperatur SensorUS$ 200 - 400MOQ: 1 Piece
Model 530A is an IEPE triaxial accelerometer designed for industrial applications. The accelerometer uses shear piezo electronical element which provides a wide operating frequency range. The IEPE sensor combines outstanding crystals and low noise integral microelectronics to achieve
very low sensitivity variation over the operating temperature range, compared to other sensing element designs. The shear element technology also ensures high immunity to base strain errors. The accelerometer uses a welded titanium construction and a light weight 4 pins connector, or
integral cable assembly for lower mass and wider frequency operation. Excellent frequency response, both amplitude and phase, provide the user with a triaxial accelerometer ideally suited for structural and component testing, drop tests and general laboratory vibration work. The miniature
cube size of this accelerometer enables the test engineer or technician to measure the accelerations of three orthogonal axes of vibration simultaneously on lightweight structures. All variations provide reliable measurements and long-term stability.
Feature / Application
• Tri-axial measurement
• 4 pins connector output
• Adhesive or stud mounting
• Hermetic sealed
• Annular shear mode
• Wide frequency response
Product specification
| Range(g) | 10 |
| Velocity Range(in/s) | 0 |
| Sensitivity( ±10%) | 500 |
| Frequency Range(Hz) | 3 - 7000 |
| Weight(g) | 28 |
| Shock Limit | 5000 |
| Operation Temp(°C) | -55 to 125 |
| Output Type | IEPE |
| Axial | Tri-axial |
| Mounting | Adhesive/Stud |
| Temp.Signal | N/A |
| Sensor Type | IEPE |
| Sens. Unit | mV/g |
| Excitation | Constant current: 2~10mA |
| Mating cable | 13 |
