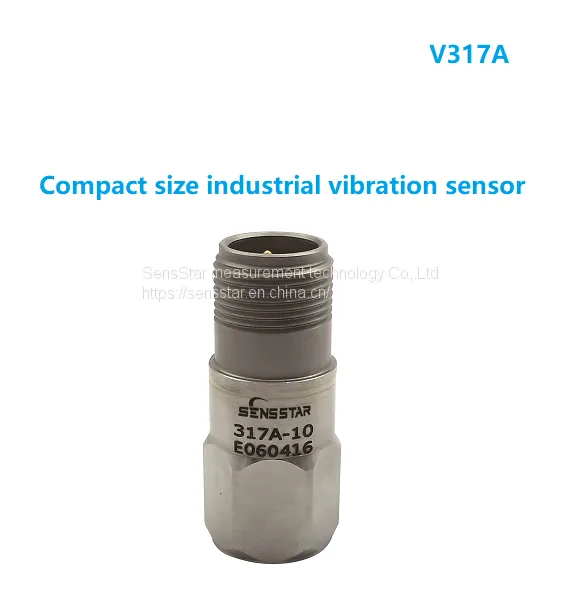

V317A Compact size industrial vibration sensor,low cost sensor:
Model 317A is a compact industrial IEPE accelerometer especially for vibration measurements in narrow space. 317A features an annular shear ceramic crystal which exhibits excellent output stability over time. The accelerometer incorporates an internal circuit with in a
two-wire IEPE system which transmits its low impedance voltage output through the same cable that supplies the constant current power. Signal ground is internal shielded and isolated from the outer case of the unit. Polarity inversion protection for the amplify circuit is inherent in the circuit design. The welded stainless-steel construction provides a hermetic housing. The standard MIL-C-5015 glass insulated connector provides long-term stability over the operating temperature range. In addition to adhesive mounting, 317A has ¼ -28 threaded holes for stud mounting on the test object. 317A provides wide frequency response and shock resistance, which is ideal for industrial vibration monitoring under incidental shock environment.
Features
• Light weight
• Compact size
• Hermetic seal
• Case isolated
• EMI / RFI shielded
• Shock resistance
Application
• Windmill machine
• Gear box monitoring
• Bearing detection
• Machine monitoring
