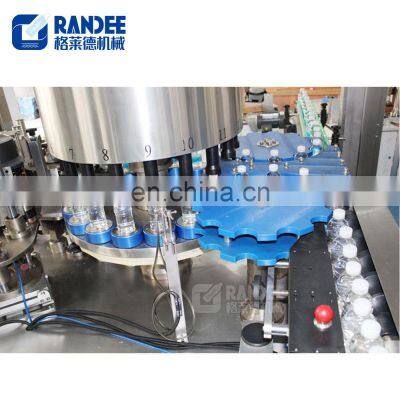

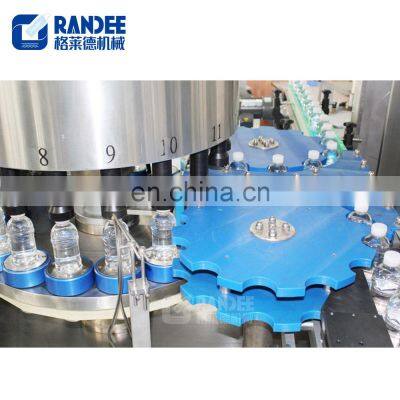

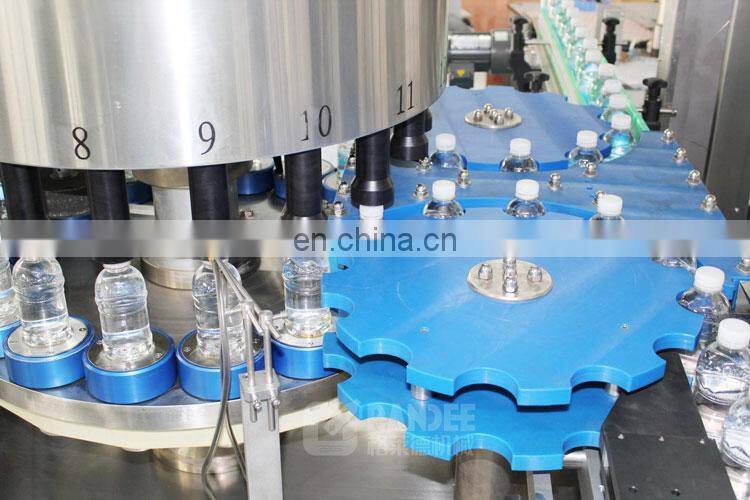

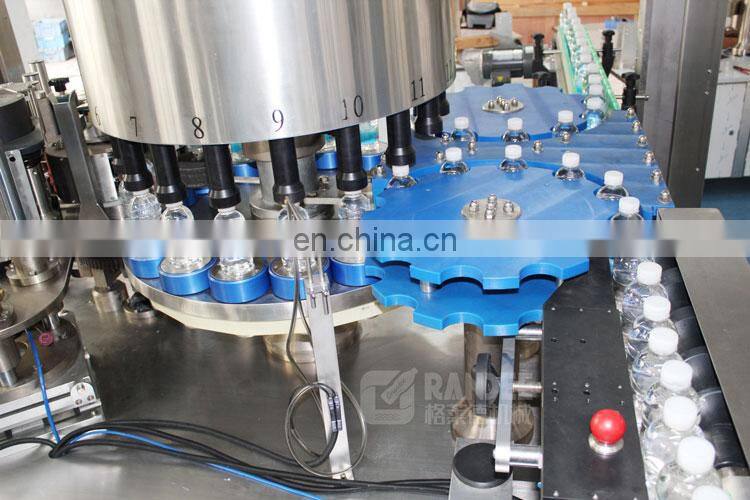

10000-24000BPH automatic rotary hot melt glue opp labeling machine
Brief introduction
Our comany is the first one to adopt German professional technology. Nearly decades of research, the ideas of excellent quality and innovation have been melted into every detail to realize perfect labeling.
Connected with production line by rotary encoder, labeling system can automatically measure the size of products and labels, making the center line of the products match with label by high-speed CPU, which can greatly improve accuracy.
Because of rotary encoder tracking using, labeling action would not be influenced caused by voltage fluctuation, damping changes and other factors.
High-precision Panasonic servo system achieves high response and high reliability, so that you don’t need worry.
All machine parts surface are processed with unique technology and will never rust.
Numbers of patented technology ensures that labeling machine is always in leadership position. Our strength is “Harder to play out our advantages to realize excellence”.
All parts manufactured professionally. Our company owns advanced processing center, which is the only one to adopt processing center in China.
Our company specialized in labeling machine, for which we have pay more than 10years effort. By now, more than 1,000 machines in operation.
Our labeling machine is the only one to adopt dual-pressure to send the subject in the world; this work can firstly effectively tighten the label then send off to avoid the label die-cutting. At the same time, can easily use such as cameras detection.
Main technical parameter
Speed:10000-24000BPH
The use of power: AC380V 50/60Hz 8000W
Labeling position: 9positions, according to the customer request production speed
Speed adjustment modes: continuously variable transmission
Bottle diameter: circular container: 30-110mm
The label height: 210mm
Label paper core size: inside diameter is152.4mm, outside diameter is 600mm maximum
Colloid type: hot melt adhesive, in the label ends sizing
Melt temperature: 120-160℃
Be affixed type: round bottles square bottles,oval bottles
Label type: OPP film
Source: 3—5Kg 30L/min
Machine size: L3000*W2600*H2100mm
Machine weight: About 3000kg

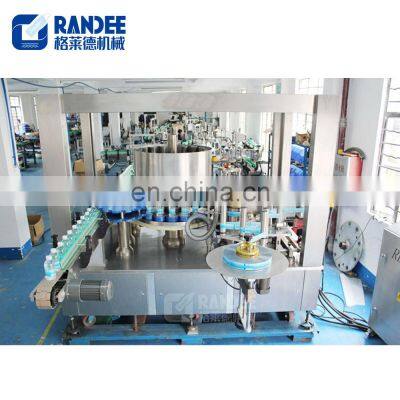

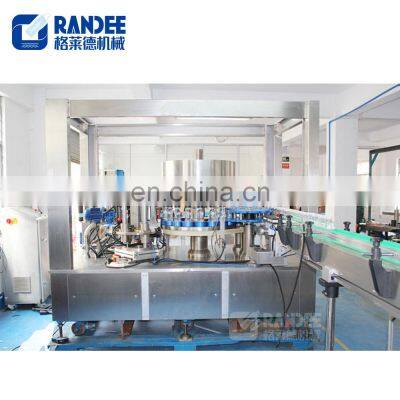

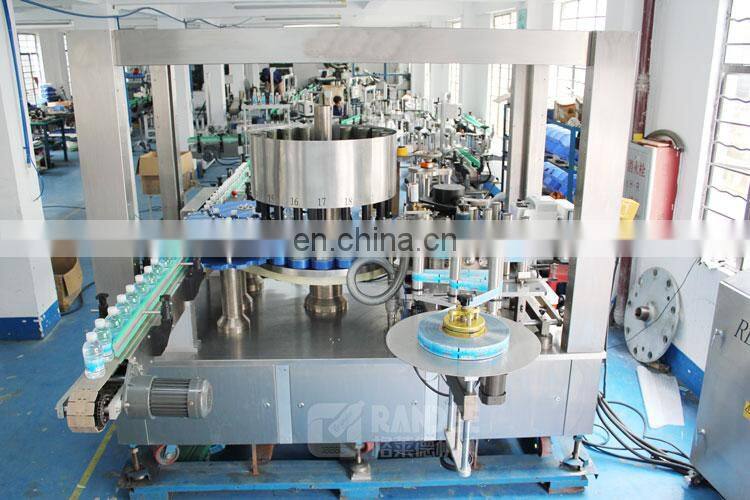

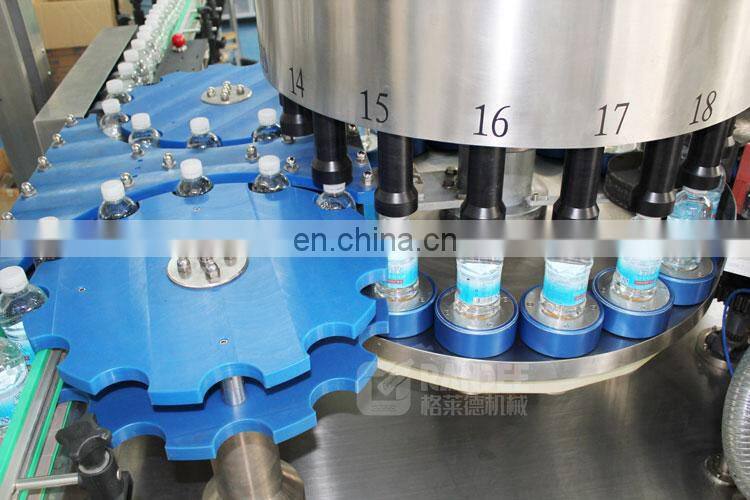

Machine show
|

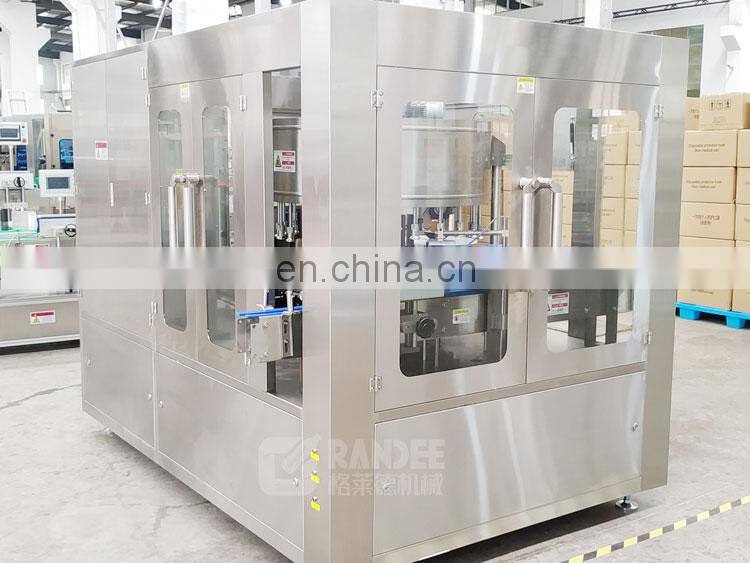

RO System filling machine from capacity from 500L/Hr to 50000L/hr. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc |
|
|
Blowing Machine with different options: 1. Semi automatic Blowing Machine for 800BPH-2000BPH from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. |
|
Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm |
|
|
Linear PE film shrink packing machine / Carton box packing machine Film material: PE / carton box Shrink membrane thickness: 70~100um Capacity: 8-35packages/ min can be chosen Conveyor belt max width: 600mm Height is: 1000~1100mm |
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
