High quality automatic juice can filling machine wine canning machine
Machine description:
1.Introduction of Juice Wine Drink is one of the fastest growing beverage segments worldwide, with healthier lifestyles, urbanisation and improved retail infrastructure all driving this development.
2. Introduction of Wine drink cans filling machine The machine is composed by the filling and capping parts which produced by abroad introduced advanced technique. The performance and structure both are up to international level. The whole machine joins the mechanical, electric, and pneumatic ways to control.
The auto control liquid level equipment fixed in the filler machine keeps the stable of the liquid level.
The row-rolling completes the capping by the rotary type equipment: a can-a cap, no cans-no caps.
They will automatically stop when no cans and the cans crushed. The higher standard of roboticized is fit for all kinds of pull-tab cans.

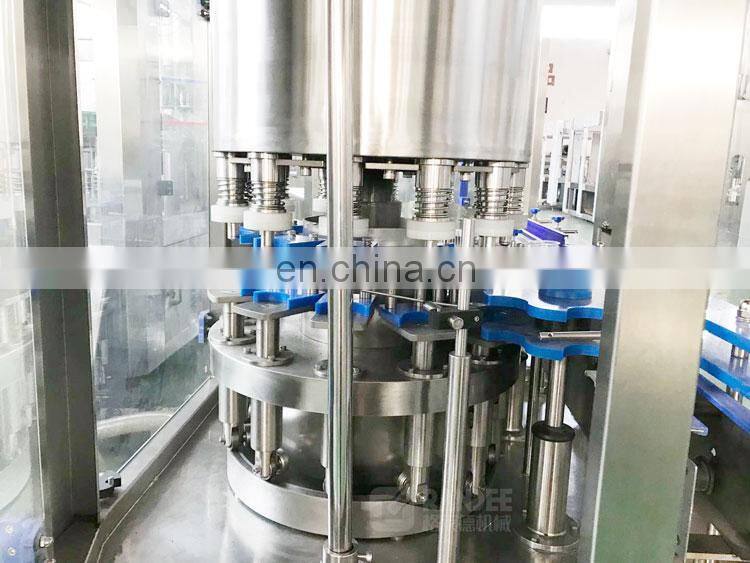

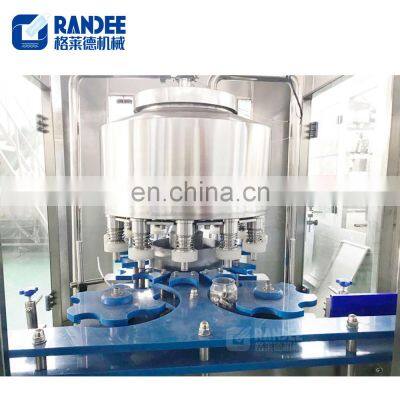

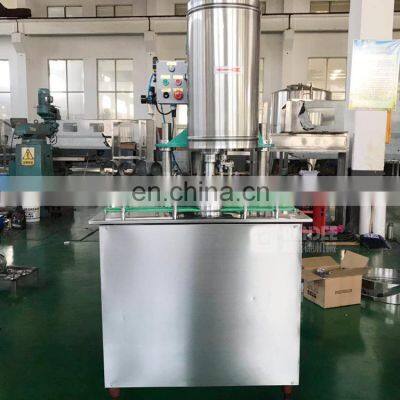

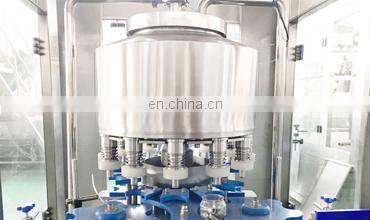

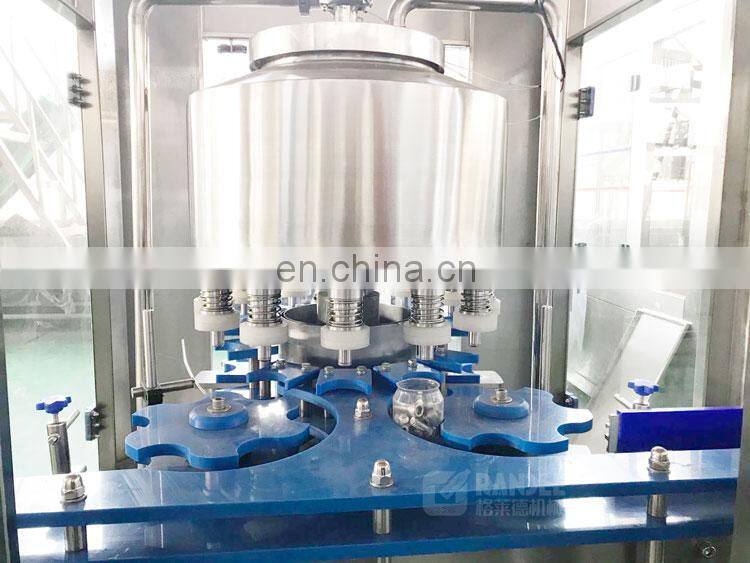

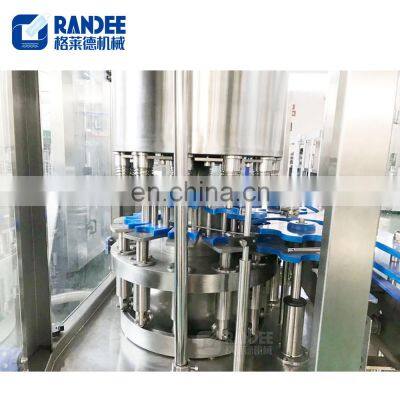

Machine show:
Main technical parameter:
| Type | Capacity(BPH) | Can size(ml) | Motor power(kw) | Dimension(mm) | Weight(kg) |
| XGJ | 1000-2000 | 250-750 | 0.37 | 1200X1200X1680 | 200 |
| GD-12 | 1000-2000 | 250-750 | 1.5 | 1200X1280X1980 | 300 |
| FX-1 | 1000-2000 | 250-750 | 0.75 | 930X700X2130 | 200 |
|
Washing part
Pass the turn cage, the bottle mouth is sprayed down into the cleaning liquid,after pass the turn cage again. |
|
Filling part
A pressure filling, air pressure control. Filling heads can adjust the height and control the level of liquid level. No leakage.
|
|
|
Sealing part
Air brake control drop cap, photoelectric control with no bottle without drop cap,with no bottle without seaming. Cans sealing heads: 2 screw head, diagonal as a capping head, an upper edge, a lower edge, in order to tight seal cans. |
|
Conveyor system
Conveying path support on the ground by tripod, driving motor adopt frequency control, it connects with washing filling and capping 3 in 1 machine and keeps pace with it. The filled bottles are conveyed by the conveyor system. Driving system is running by a main motor that adopts gear drive mode. |
|
Our engineer will make layout for you
|

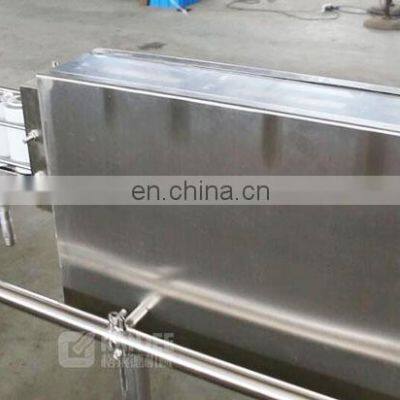

Bottle drying machine There is a blower in the equipment, which is dried on both sides through four outlet. It's like a drier. |
|
Carbonation drink mixer Process: Water, syrup, CO2 mixing system Carbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8 Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree |
|
|
|
Soda water mixing system Process: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank
Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. |
|
Automatic sticky / wet glue labeling machine Labeling speed: 60~100B/Min Outer diameter of scroll:Φ300(Max) |
|
|
|
L type PE film shrink packing machine Pang Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling Speed: 8-12packages/min Power (rated/real): 26kw / 16kw Max. packing size: 420*300*350mm(LxWxH) Max. sealing size: 650mm |
Customer's service:
1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
