Carbonated Soft Drink Bottle Filling Machine, Soda Water Production Line Bottling Plant

Carbonated soft drink filling machine soda water production plant

Machine description:

This soft drink filling machine production plant is used for production of PET bottle carbonated drink.This machine intergrated washing,filling,capping in one machine with complete automation,and suitable for all kinds of bottle shapes.It adopts clip bottle neck technology,and is more faster for adjusting the height of conveyor chain.The filling method adopts new model constant pressure filling technology,which makes filling speed is more faster and stable.The main machine adopts advanced PLC control.The key electrical elements are from famous international brand.The whole machine has scientific and reasonable design,high production capacity,low failure.

What Grandee Machinery Can Do For You ?

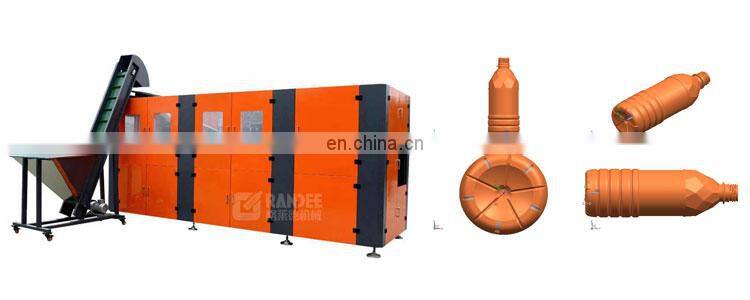

2 Automatic Blow Molding Machine

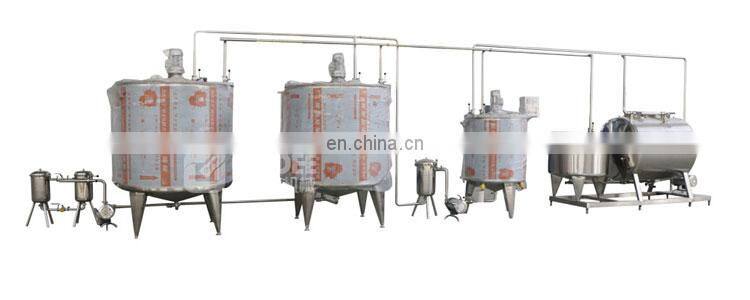

2 Soda Water Mixing System

Process: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank

The output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.

Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.

Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc,  double layer with warming jacket, motor with blending system

Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc.  double layer with warming jacket

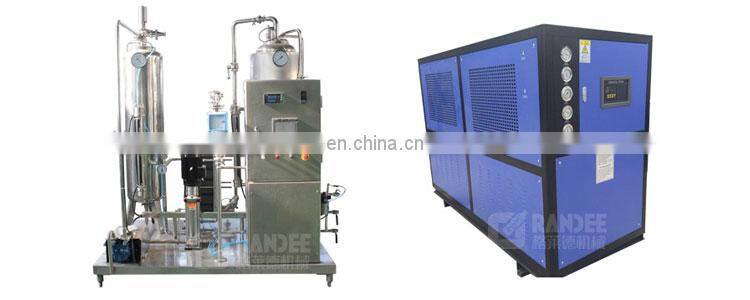

3 Carbonation mixer and Water chiller

Process: Water, syrup, CO2 mixing system

Carbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8

Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature)

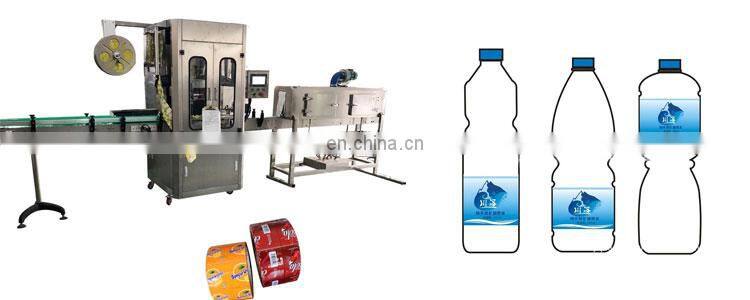

4 Automatic sleeve labeling machine

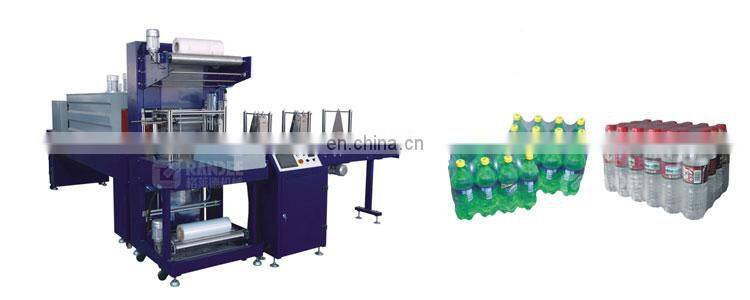

5 Automatic shrink packing machine

 Technical data

Q1: How to find suitable soda water or carbonated drink filling machine or complete production line?

A1: Looking for carbonated beverage filling machine in www.grandeemachine.en.china.cn 

Q2: How to start a soda water factory business ? What's my budget?

A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr,etc.

Q3: How to confirm the bottle shapes that is very attractive for your customer ?

A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml,1500ml or 2000ml, then our engineer can design the bottle shapes for you.

Q4: Which kinds of machines included in one complete soda water production line?

A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, RO water treatment plant, beverage processing machine, carbonation mixer, water chiller carbonated filling machine, bottle warming machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine.

Q5: Are you a trading company or a manufacturer?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .

Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

If you are interested in our machines, please send your inquiry
