Automatic 5 Gallon Barrel Mineral Water Production Line And Water Filling Machine
- T/T Credit Card
You May Like
-
600BPH Capacity Automatic 5 Gallon Big Bottle Water Bottling Machine Plant
-
600BPH 5 Gallon Water Bottling Machine 19liter Bottle Filling Machine
-
5 Gallon 20L Bottle Water Bottling Filling Equipment Machine Plant Line
-
Automatic 5 Gallon Liquid Filling Machine Water Refilling Machine
-
Automatic 5 Gallon Jar Refilling Machine Water Washing Filling Capping Machine
-
QGF-600 Automatic 5 Gallon Refilling Machine Bottling Packing Production Line
Product Description
Automatic 5 Gallon Barrel Mineral Water Production Line And Water Filling Machine
Brief introduction :
5 gallon bottling line including the following equipment:
Feeding bottle conveyor (noramlly plastic chain plate), Automatic decapper, leakage checker, automatic bottle washing machine, automatic loading machine, rinser-filler-capper monoblock, light checker, heating shrink machine , bottle our conveyor system (SUS material) ,Nanfang water pump, AIRTAC air cylinder, electrical control system,etc.

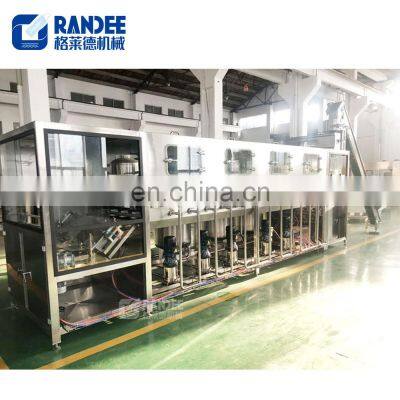

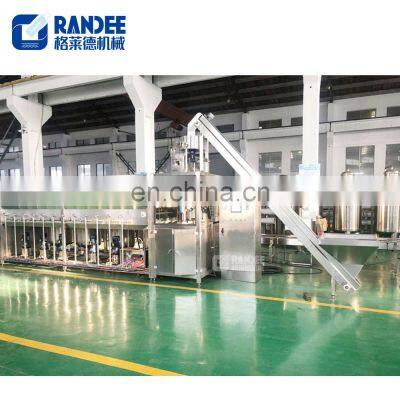

QGF-600 5 gallon drinking water filling machine is mainframe for produce 5 gallon barreled water. It consists of frame, water tank, pipeline, water pump, air tank, transmission machine, electric machine, can finish empty barrel washing , filling , capping through several washing , fit quantify filling and auto capping. The whole working process was control by PLC, realize stability washing effect, accurate filling capacity and perfect capping effect.
QGF-600 5 GALLON FILLING LINE
|
QGF-600 5 Gallon / 20liter water filling line with washing system |
|||
|
No. |
Machine name |
Model |
Size(mm) |
|
1 |
Automatic decapper |
BG-1 |
850x650x1800 |
|
2 |
Automatic interior brushing machine |
STN-4 |
1300*800*2140 |
|
3 |
Automatic exterior brushing machine |
STW-4 |
1550*1100*2140 |
|
4 |
QGF-600 main washing filling capping machine |
QGF-600 |
6000×1580×2000 |
|
5 |
Light checker |
DJ-1 |
300×700×1000 |
|
6 |
Shrinking machine |
|
900x700x1200 |
|
7 |
Feeding conveyor belt |
Plastic chain |
|
|
8 |
Products outlet conveyor |
SUS304 |
|
|
9 |
Roller conveyor |
SUS304 |
2m |
|
10 |
Laser / ink jet printer |
20W |
340*220*100 |
![]() |
De-capping machine: This decapping machine is designed for 3 & 5 gallon bottle in water production line. It's used to pull out the cap of recycling bottle before rinsing. |
|
Automatic interior exterior brushing machine: The machine is used for cleaning barrel inside outside before filling process. It's used for allround cleaning the bottle, significantly improves cleaning efficiency. |
![]()
|
|
|
Automatic up-loader: Automatically push the prepared empty bottle into the filling machine, put the bottle into the holder inside the washer station. |
|
5 Gallon Water Bottle Filling Machine: |
![]() |
|
|
Light Checker With two light pipes, inspect bottle water after filling function. |
| Cap Heat Shrink Machine This cap heat shrink machine is used to shrink the plastic label on the 3& 5 gallon caps. It adopted good quality imported stainless steel, simply operation and working smoothly. |
![]() |
![]() |
Automatic barrel bagging machine: Automatic film feeding, feed, bag, sealing once completed, save manpower, improve efficiency, and realize unmanned operation docking production line. Teflon anti-stick coating alloy thermostatic sealing knife, sealing temperature is extremely sensitive and accurate, it can be arbitrarily set, sealing wire is not easy to crack, no edges, sealing more beautiful. |
|
Bottle conveyor system: Including empty feeding system, plastic chain full barrel conveyor system, SUS34 material |
![]() |





Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
