Fiberglass Push Rod Electric Reel Wire Cable Running Rod Duct Rodder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
13mm 300m Fiberglass Cable Push Puller Duct Rodder /frp Conduit RoddingNegotiableMOQ: 1 -
Telecom Cable Laying Tools Cable Duct Reel Fiberglass Cable Rodder PusherNegotiableMOQ: 1
-
8mm 9mm 10mm 11mm 250m 300m Fishtape Fiberglass FRP Traceable Wire Duct Rodder Cable Snake Running Rod And Conduit Cable DuctNegotiableMOQ: 1
-
6mm 1000m Fiberglass FRP Electrical Connectable Wire Cable Pulling Fish Tape Pull Kit /cable Rod SetNegotiableMOQ: 1
-
4mm 6mm Fiberglass Electrical Connectable Cable Rod Set Fish Tape Pull Kit /Running RodsNegotiableMOQ: 1
Product Description
fiberglass push rod electric reel wire cable running rod duct rodder
fiberglass push rod electric reel wire cable running rod duct rodder description:
fiberglass push rod electric reel wire cable running rod duct rodder sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables, wires inside the duct. What's more, it can be used to located the duct block or damage positions. It has high safety aspects to be applied to underground applications because of its non conductivity of electricity, thus sets a major safety to site workers. It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
fiberglass push rod electric reel wire cable running rod duct rodder sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables, wires inside the duct. What's more, it can be used to located the duct block or damage positions. It has high safety aspects to be applied to underground applications because of its non conductivity of electricity, thus sets a major safety to site workers. It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
Product Name |
fiberglass push rod electric reel wire cable running rod duct rodder |
|
Material |
fiber glass +ABS |
|
Color |
yellow,white,red,blue,black or customized |
|
Rod inside core |
E-glassfiber(Content 75%-80%) |
|
Rod outside finishing |
ABS coating with electrostatic spray painting |
|
Application temperature |
-40℃ to +80℃ |
|
Density |
>1.9g/cm3 |
|
Minimum pulling strength |
4000N±5% |
|
Tensile moujulus |
>46.50Mpa |
|
Consistency of rod |
137g/m |
|
Flexural modulus |
>46.50Mpa |
|
Elongation at break |
2.5-3% |
|
Minmum bending radius |
380mm |
|
Size |
||
Rod diameter |
4/4.5/5/6/7/8/9/10/11/12/13/14/15/16/17/18mm |
|
Rod length |
50/60/80/100/150/200/250/300/350/400/450/500m (10-500m) |
|
Frame size |
||
48*44*16cm |
4.5mm*100m;6mm*60m |
|
64*50*17cm |
6mm*120m; 4.5mm*150m |
|
98*90*40cm |
4.5mm*300m;6mm*250m;8*120m |
|
100*111*45cm |
8mm*150m;10mm*100m |
|
122*118*45cm |
8mm*400m;10mm*300m;11mm*300m;12mm*300m;3mm*200m;14mm*200m |
|
160*154*45cm |
12mm*450m;13*400m;14*400m;15mm*300m; 16*300m |
|

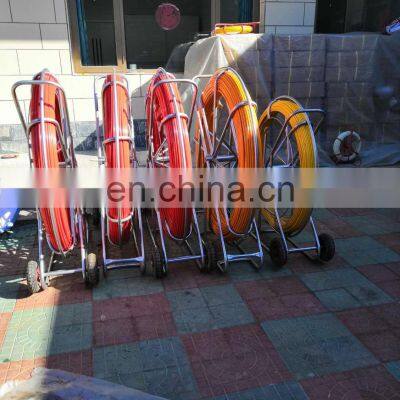

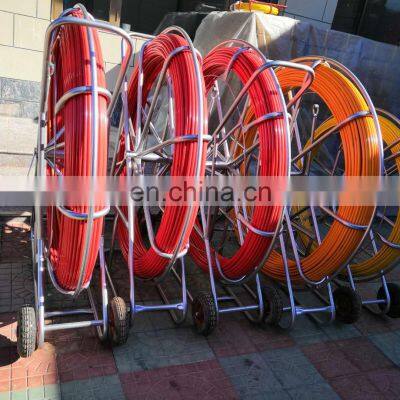

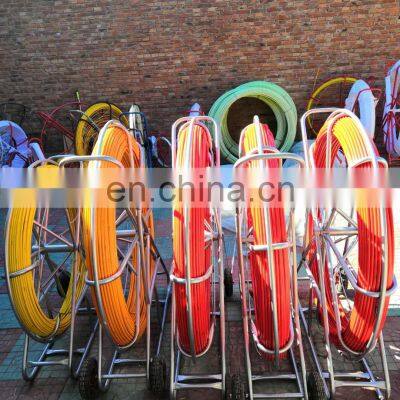

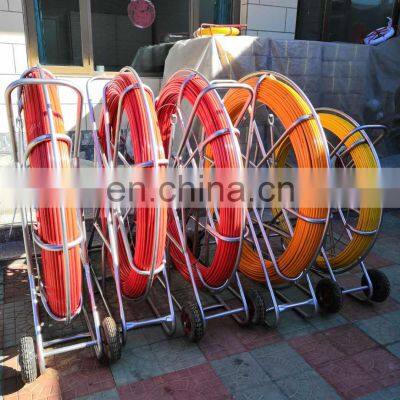

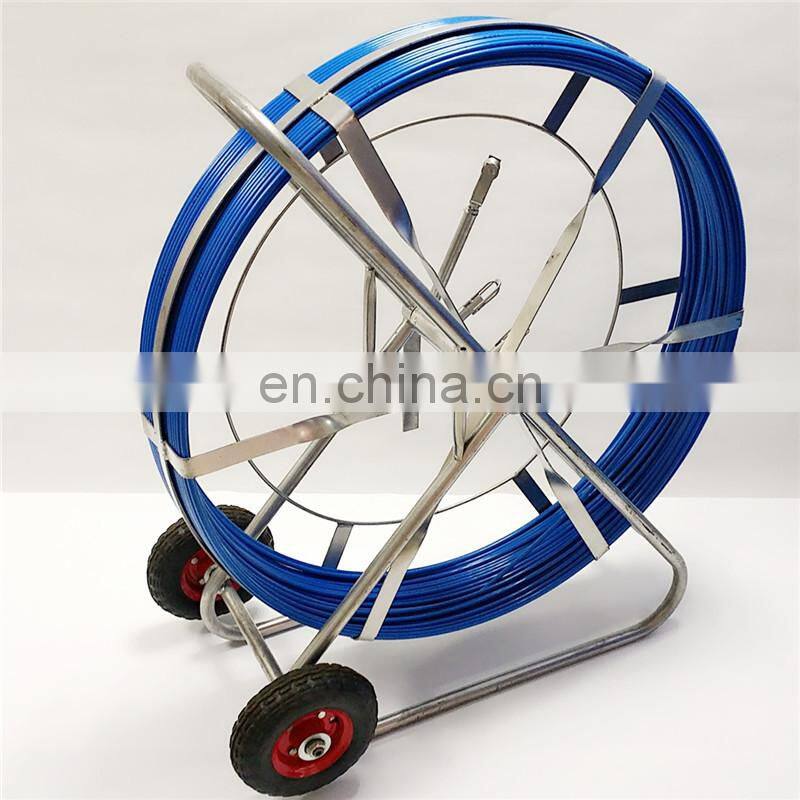

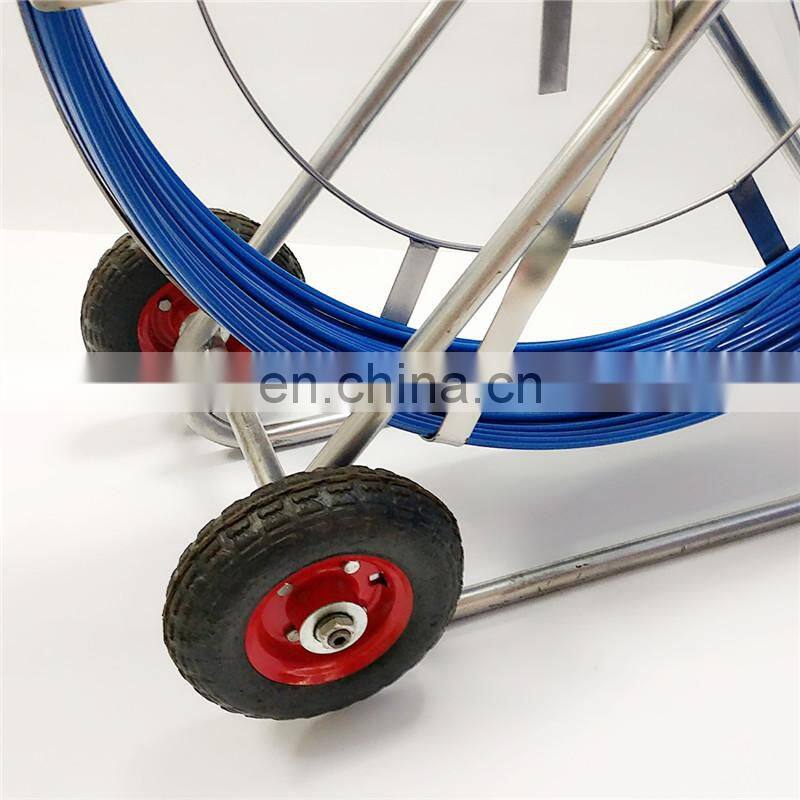

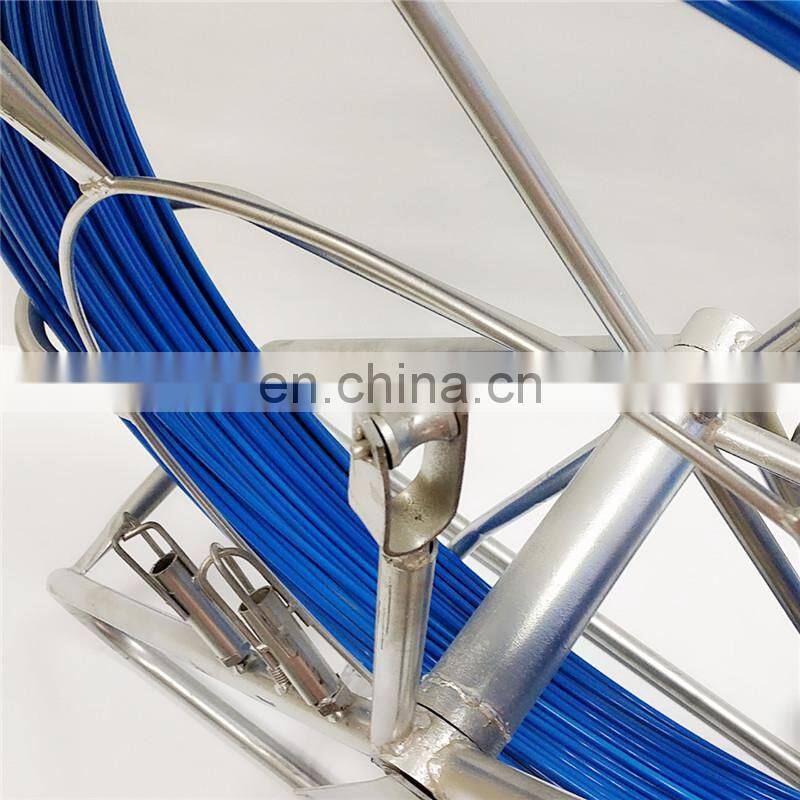

Products Show

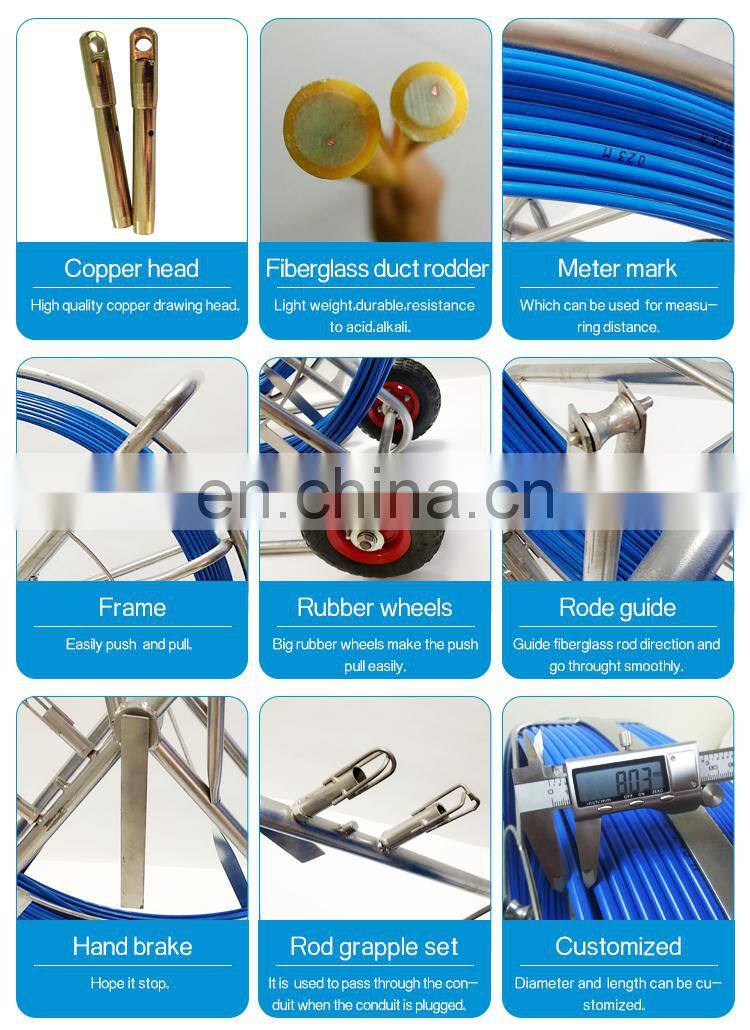

Assembly & Function
Production Process
fiberglass push rod electric reel wire cable running rod duct rodder production
Application
fiberglass push rod electric reel wire cable running rod duct rodder application
Packing & Delivery
fiberglass push rod electric reel wire cable running rod duct rodder packing
The inner packing: Plastic woven strip wind around the cable duct rodder frame
The outer packing: Put into a carton
If the quntity of the cable duct rodder is LCL,we will use the wodden pallet
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
