Cable Drawing Pulley Durable Angle Cable Laying Tool Cable Guide Straight Cable Roller Aluminium/nylon/iron Triple Cable Roller

Cable Drawing Pulley Durable Angle Cable Laying Tool Cable Guide Straight Cable Roller Aluminium/nylon/iron Triple Cable Roller photo-1
Cable Drawing Pulley Durable Angle Cable Laying Tool Cable Guide Straight Cable Roller Aluminium/nylon/iron Triple Cable Roller photo-2
Cable Drawing Pulley Durable Angle Cable Laying Tool Cable Guide Straight Cable Roller Aluminium/nylon/iron Triple Cable Roller photo-3
Cable Drawing Pulley Durable Angle Cable Laying Tool Cable Guide Straight Cable Roller Aluminium/nylon/iron Triple Cable Roller photo-4
Cable Drawing Pulley Durable Angle Cable Laying Tool Cable Guide Straight Cable Roller Aluminium/nylon/iron Triple Cable Roller photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Cable drawing pulley, angle cable laying tool, cable guide, straight cable roller, aluminium/nylon/iron triple cable roller
Cable Rollers is used to release the power cable. It is mainly used to bury the cable and it is used on the ground. The shaft is equipped with high speed bearing and steel tile and will not damage the cable.

There are many types for the cable rollers, such as straight cable roller, coner cable rollers, manhole cable rollers, cable
feeding sheaves, right angle rollers, hook type sheaves, single sheave pulley block, double/twin sheave block and so on.

The rollers are made of Aluminium and Nylon. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.
Types: Straight cable roller, corner cable rollers, manhole cable rollers, cable feeding sheaves, right angle rollers, hook type sheaves, single sheave pulley block, double/twin sheave block and so on.
Product Specification
Model: LYCR06
Wheel Diameter
140mm
Applied cable diameter
=<150mm
Wheel length
160mm
Loading Ability
300kg
Wheel material
Iron, aluminium, nylon, high quality nylon
Weight
10 kg ~ 12kg
Size (L*W*H)
600mm*190mm*220mm
Finish
Cold zinc galvanized, or powder coated
Color
Silver, golde, red, yellow, green, orange, blue, etc
Product Feature

1. Able to carry high loads 2. With chromel stell ball bearing 3. With a high load-bearing capacity 4. Self-lubrication, precision machined and low friction 5. Low noise, stable performance and durable 6. Able to work in sub-zero temperatures and have low rolling resistance 7. Suitable for countless applications: sliding pipe, machine equipment and other sliding systems.
1. Usage: For delivery of underground cables, used in extended release cable for high- speed single round of linear wheel bearings are not to hurt the cable wheel  material steel aluminum cattle dragon can be based on your need to select. 2. The cable pulley can be installed on a different cable. 3. Pulley material classification: a steel pulley with spherical bearings, the second nylon wheel with plain bearings, aluminum  alloy wheel with sliding bearings.
Product Application

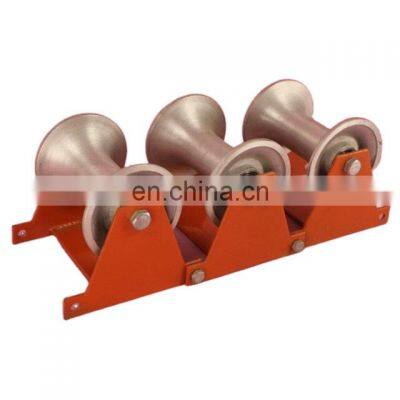

Cable rollers are widely used in engineering machinery, electric power, petroleum, mining, coal, metallurgy, paper making, construction, port, cable and other industries, cable tunnels show exhibition place or on the ground put the extension cable and wire release, the product is divided into single-round and three, non-fragile cables.

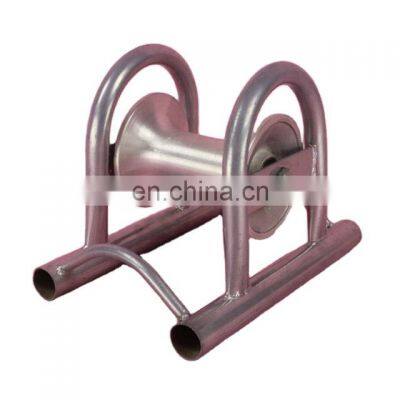

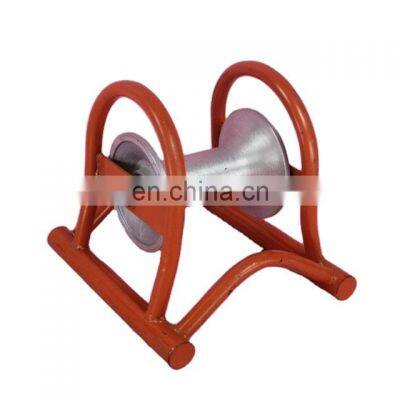

Straight line electrical cable roller with Aluminum Wheel Used for guiding cable to turn and set free, and used for setting power cable and communication cable in trenchers or on ground.
Corner Cable rollers, the cable rollers are used in protecting the cable during cable-laying at the tunnel construction. So the cable can laying well enough to laying.
Single nylon sheave pulley Nylon pulley hook cable roller Widely used in overhead power line construction. Used to release conductors. It can be passed by connectors, swivel joints. It can be also used in lifting and hoisting works of dock, shipyard, warehouse and so on.
Package and Transportation
The methods employed to pack composite insulators are the result of experience gained from shipping millions of insulators to user warehouses and construction sites in a large number of countries worldwide.The packing method illustrated below have been developed to minimize possible damage during shipment and storage as well as to reduce space and freight cost.
Why Choose Us?
1.Highest quality We are the manufacturer who adopts imported raw materials to guarantee the high quality.
2. Most competitive price We can adjust the price according to your market demand changes, and also can launch a series of promotional activities in a bad economic environment.
3. Professional We have a complete team, including development, procurement, production, inspection, sales and after-sale service.
4. Best service We would give feedback within 24 hours. For any question or problem, we would try our best to help.
FAQ
Q: How do you guarantee your product quality?
A: 100% of our products would be tested before delivery. To control quality, we are using high quality materials from high quality supplier.
  Q: Are you a trading company or a manufacturing factory?
A:We are a manufacturing factory with export qualifications. Our factory is one of the best FRP products manufacturer in China. We have FRP products of high quality and various designs.
  Q: I am interested in your products, could I get a sample for free? A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is to kindly offer your shipping account.   Q: Can you do the design for us?
A: Yes. With experienced teams in fiberglass product design and manufacturing, we could provide customized shape, dimension, colors service, etc.
Welcome to contact us for more detailed information, we will give feedback within 24 hours.
