Product Description
Product Description
FRP Moulded Fibreglass Reinforced Plastic mesh grating
This type of Fibreglass Reinforced Plastic grating is cast in a mould (moulded). It is a composite material consisting of layered fiberglass overcast with a polyester or vinylester resin (65%). The specific production process ensures that this type of Fiberglass Reinforced Plastic grating has optimal strength in two directions. Furthermore, this FRP grating has excellent corrosion resistance. The performance of moulded Fibreglass Reinforced Plastic (FRP) grating is excellent and reliable, even in the most demanding and corrosive conditions. The unique properties ensure it has excellent corrosion resistance in a wide pH range of both acid and corrosive substances.
FRP Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal,and thurougly wettled out with resin,layer by layer.
Any process such as post applied grit could be bonded after as a secondary opreration.This continuous process produces an intergral,one piece panel,which offers excellent corrosion resistance as well as bi-directional strength.
FRP grating (moulded) is available in the grating thicknesses: 13, 25, 30, 38 and 50 mm. The FRP (GRP) grating panels are available in various lengths and sizes.
Please check our specification as below , we also accept customized Specifications(mm) | a*b(mm) | weight(kg) |
38*38*25 | 1220*3660 | 54 |
38*38*30 | 1220*3660 | 70 |
38*38*38 | 1220*3660 1000*4007 | 88 81 |
50*50*50 | 1220*3660 | 98 |
19*19*38*38*30 | 1075*3626 | 72 |
38*38*65 | 1030*4040 | 141 |
40*40*40 | 1010*4040 | 81 |
19*19*38*38*38 | 1220*3660 | 92 |
25*25*50*50*50 | 1220*3660 | 62 |
Production process
FRP Moulded Fibreglass Reinforced Plastic mesh grating production process
product displays

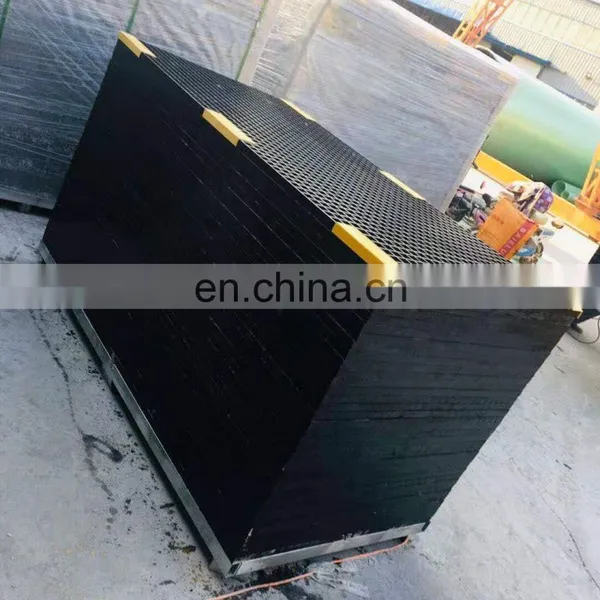

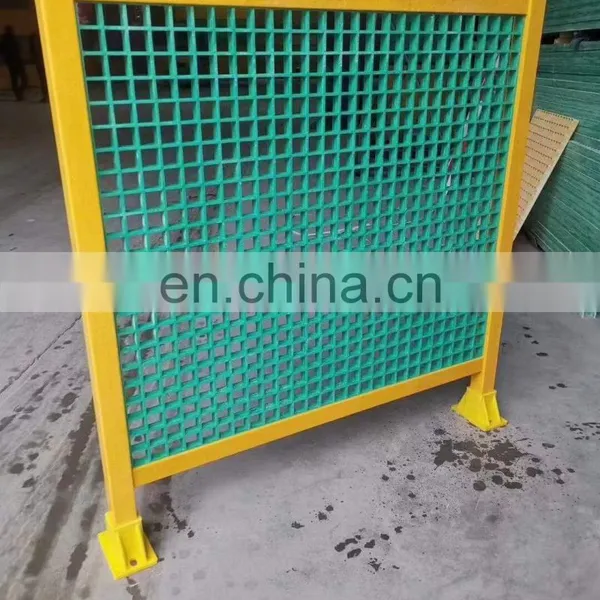

FRP Moulded Fibreglass Reinforced Plastic mesh grating details
Product application
The (moulded) FRP grating is high-strength, safe (non-slip), low-maintenance and very versatile in use. This type of FRP (GRP) grating is often used for landings, floors, walkways, stair cases and platforms. FRP grating is highly corrosion-resistant and therefore extremely suitable for use in the most chemically hazardous environments. For example:
* sewage treatment plants
* the petrochemical industry
* civil engineering / rail infrastructure
* power stations
* the chemical industry
* process-water and drinking-water companies
* the food, drink and tobacco industry
* waste processing companies
* incineration plants
* shipping and offshore industry
* agricultural sector
* marinas
* the petrochemical industry
* civil engineering / rail infrastructure
* power stations
* the chemical industry
* process-water and drinking-water companies
* the food, drink and tobacco industry
* waste processing companies
* incineration plants
* shipping and offshore industry
* agricultural sector
* marinas

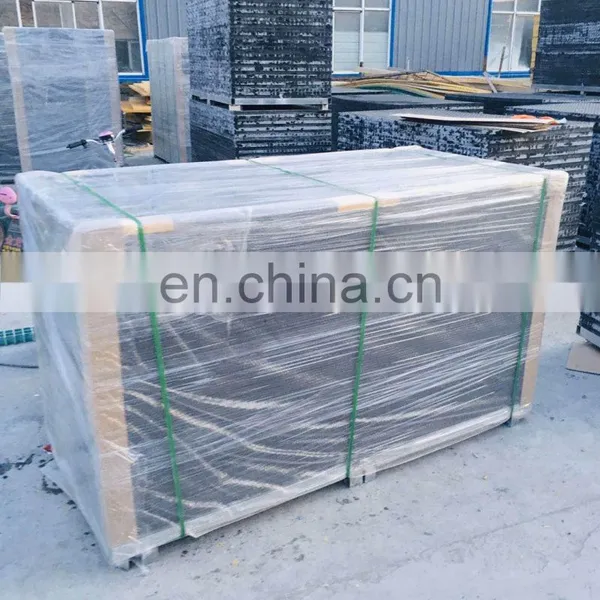

Process &Packing
