Product Description
Product Description

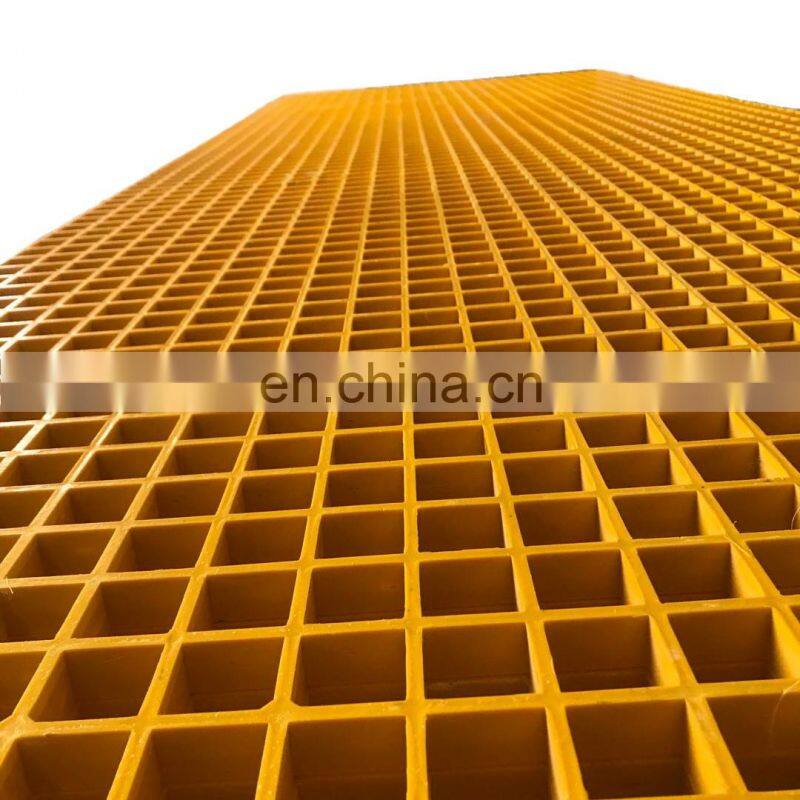

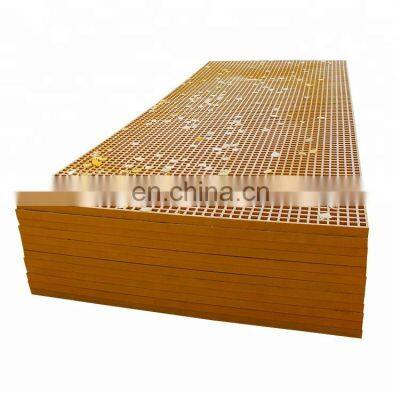

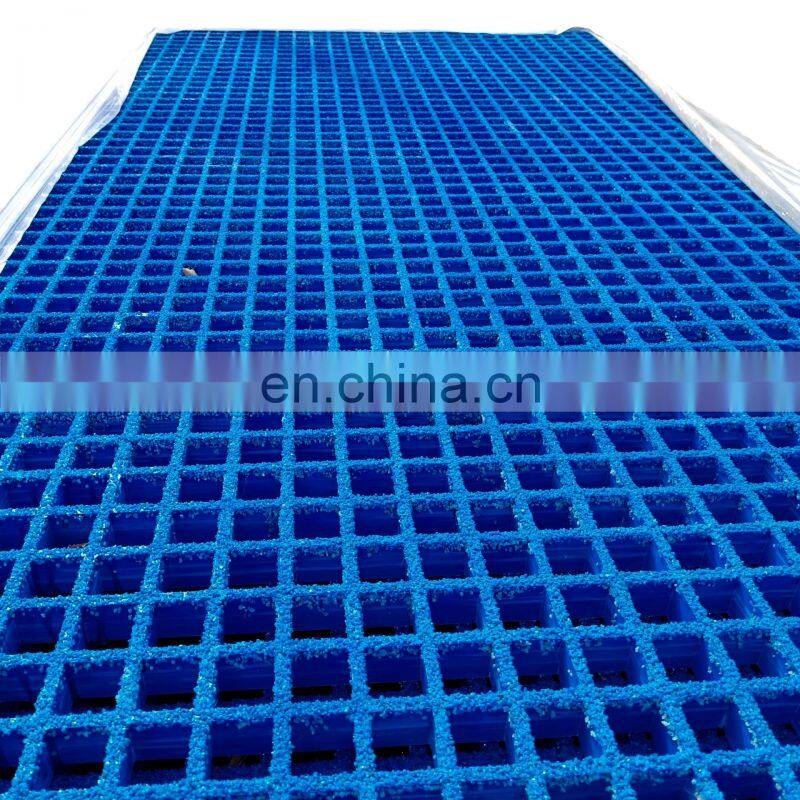

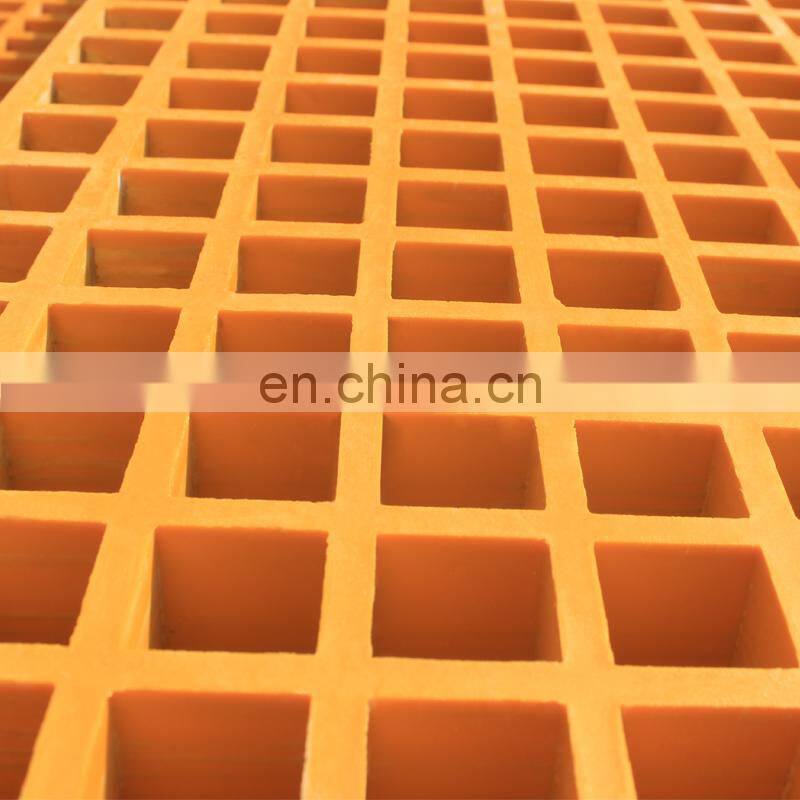

Heavy duty FRP /GRP mesh grating plastic grid floor FRP panel sheets

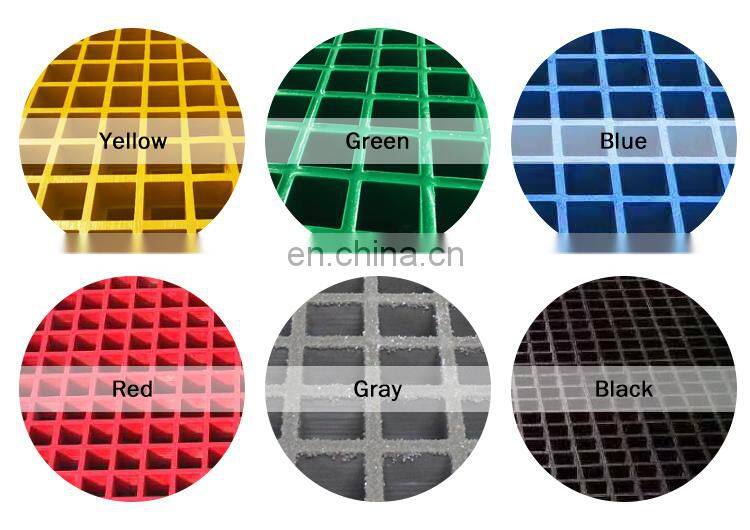

Heavy duty FRP /GRP mesh grating plastic grid floor FRP panel sheets and glass fiber reinforced plastic plate, is a kind of glass fiber reinforced material, unsaturated polyester resin as matrix, through special processing and become a kind of plate material, with lots of blank space FRP gratings can be used as a structural material, used for the floor of the corrosion environment, trench cover, platform, ship deck, stair, catwalks, etc.With corrosion resistance and flame retardant, no magnetic insulation, bright color sample, a variety of styles and forms of alternative features.
we have 40-50 sets of mould machine, can produce frp grating mesh size 38x38x25mm,38x38x30mm, 38x38x38mm, 40x40x40mm, 50x50x50mm, 19x19x38x38x30mm, 40x40x25mm it can meet the different customer's request, and we can customized if you can send me the sample or drawing ,
Specifications(mm) | a*b(mm) | weight(kg) |
38*38*25 | 1220*3660 | 54 |
38*38*30 | 1220*3660 | 70 |
38*38*38 | 1220*3660 1000*4007 | 88 81 |
50*50*50 | 1220*3660 | 98 |
19*19*38*38*30 | 1075*3626 | 72 |
38*38*65 | 1030*4040 | 141 |
40*40*40 | 1010*4040 | 81 |
19*19*38*38*38 | 1220*3660 | 92 |
25*25*50*50*50 | 1220*3660 | 62 |
Heavy duty FRP /GRP mesh grating plastic grid floor FRP panel sheets Feature
* Integral, one-piece construction increases load-bearing capabilities.
* Load applied to a Webforge FRP bar is transferred to adjoining bearing bars, assisting in load distribution on the grating as well as on the support structure.
* Smooth resin-rich vertical surfaces and tapered bars allow all debris to fall through.
* Continuous glass fibre strand in alternating layers throughly wetted with the appropriate resin for excellent corrosion resistance.
* Load applied to a Webforge FRP bar is transferred to adjoining bearing bars, assisting in load distribution on the grating as well as on the support structure.
* Smooth resin-rich vertical surfaces and tapered bars allow all debris to fall through.
* Continuous glass fibre strand in alternating layers throughly wetted with the appropriate resin for excellent corrosion resistance.
* Open area 70%.

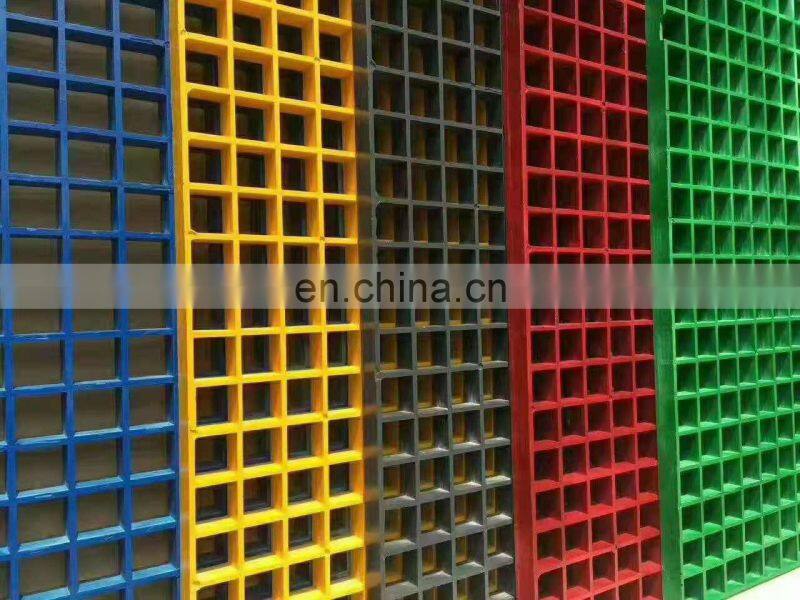

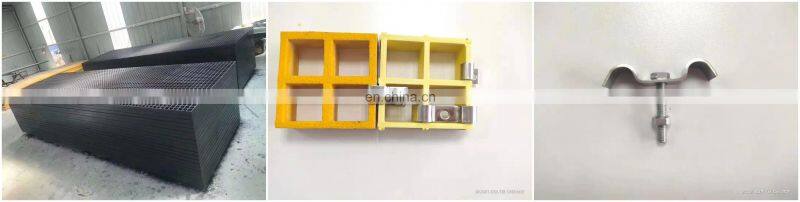

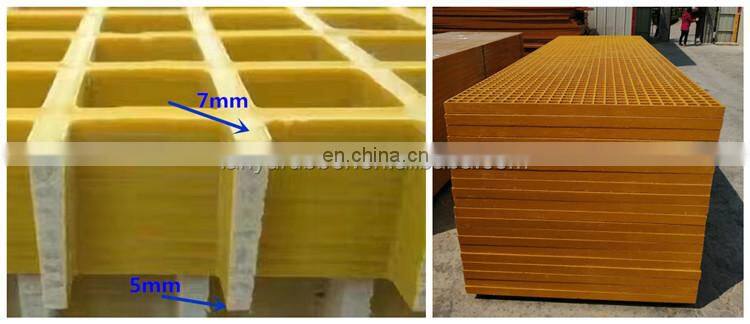

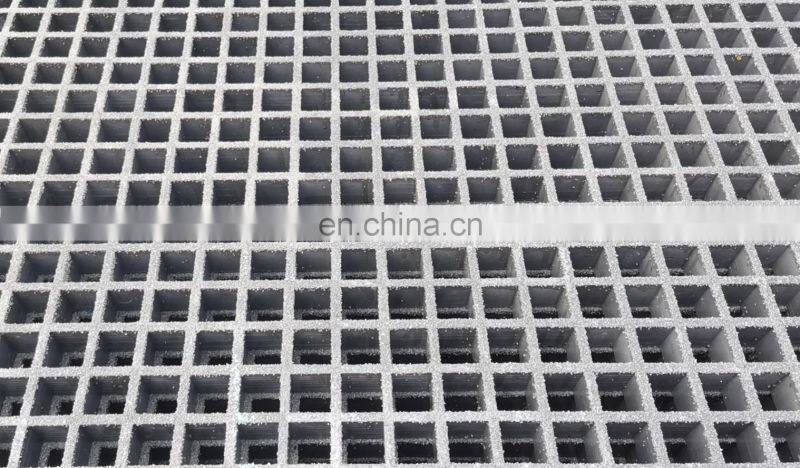

product displays
