Features:

* Integrating two functions of dehumidification and drying;
* Using a full molecular sieve honeycomb rotor, which can provide stable dry air with a low dew point;
* The feeding system is equipped with a cut-off material distribution station to ensure that there is no residual material in the material pipe;

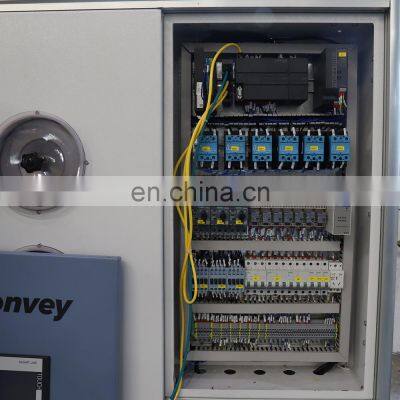

* PLC control, and touch screen display for precise control of drying temperature.

Working principle:

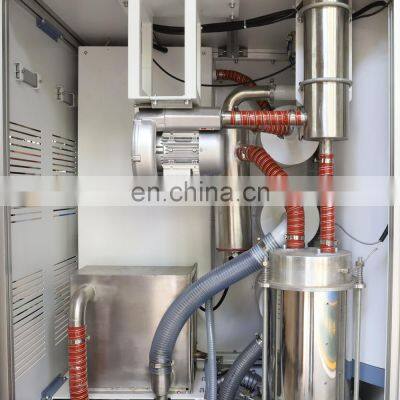

The hot and humid air returned from the drying bucket is cooled and blown into the honeycomb rotor. The moisture in the air is absorbed by the rotor and then desorbed by the regenerated heated air. The two air flows act on the rotor at the same time. As the rotor rotates, the moisture in the air is continuously absorbed and desorbed for discharge, and finally air with a stable low dew point is formed, which is heated to the drying temperature required by the plastic material and then blown into the drying bucket to form a closed circulation loop.

Specification table:

Model
Dry air flow rate (m3/hr)
Drying bucket capacity (L)
Drying fan (kw)
Regenerative fan (kw)
Regenerative electric heater (kw)
Electric drying heater (kw)
Conveying tube
(inch )
LSDD-400H/600L
400
600
4
0.7
8
18
3"
LSDD-700H/900L
700
900
5.5
1.6
12
18
4"
LSDD-700H/1200
700
1200
5.5
1.6
12
24
4"
LSDD-1000H/2000L
1000
2000
7.5
3
15
36
5"
LSDD-2000H/3000L
2000
3000
11
4
24
48
6"
LSDD-2000H/4000L
2000
4000
11
4
24
60
6"
LSDD-3000H/6000L
300
6000
7.5*2
3*2
24*2
96
8"
LSDD-4000H/6000L
4000
6000
11*2
3*2
24*2
96
8"
LSDD-4000H/8000L
4000
8000
11*2
3*2
24*2
120
8"
