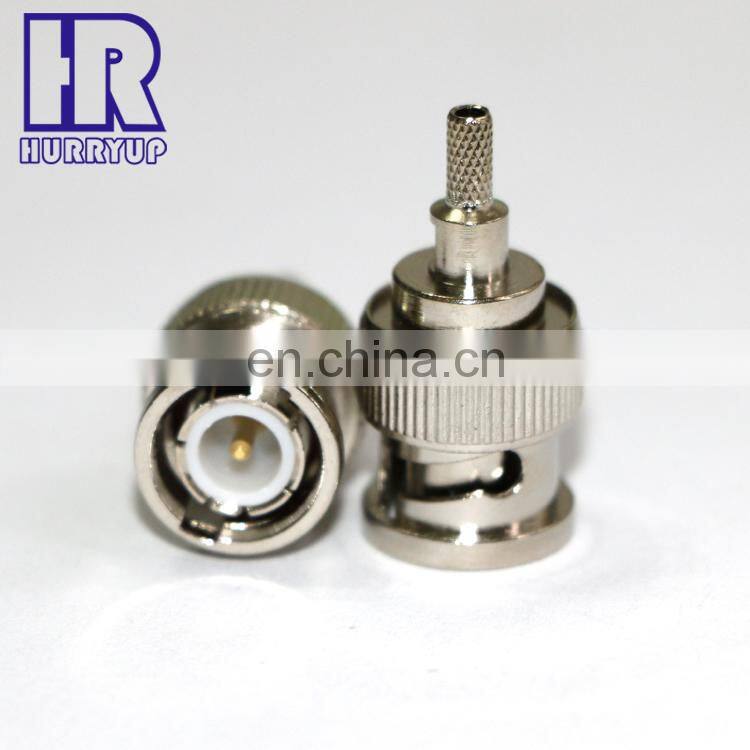

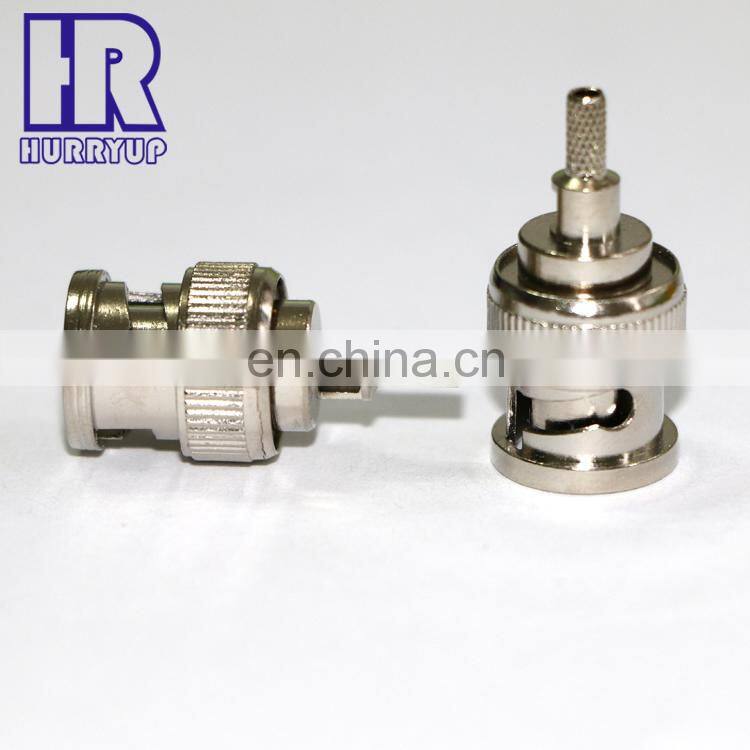

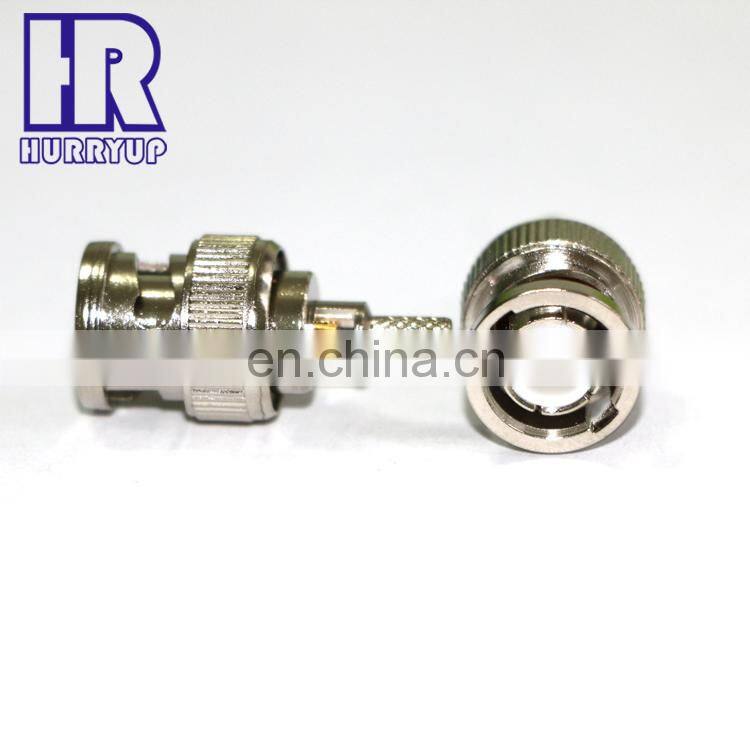

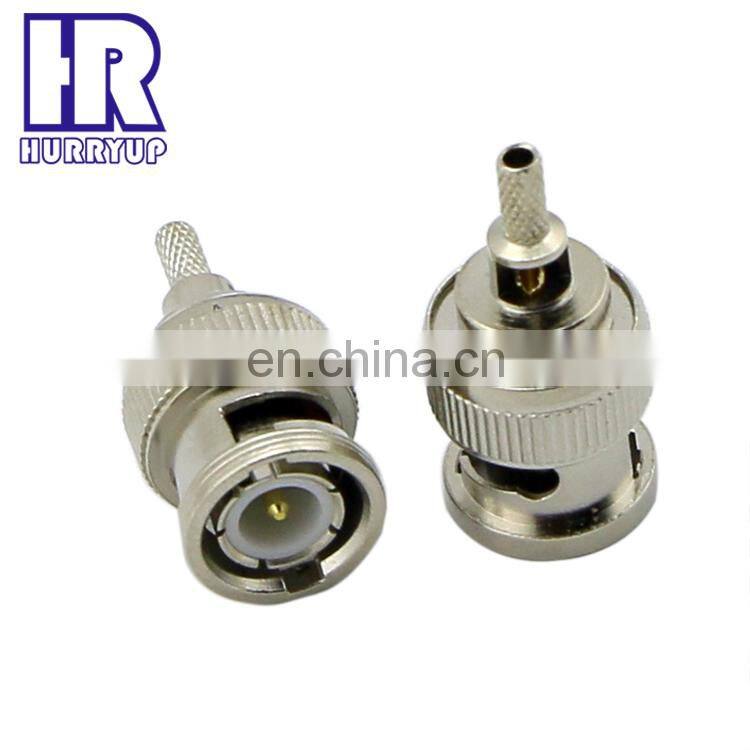

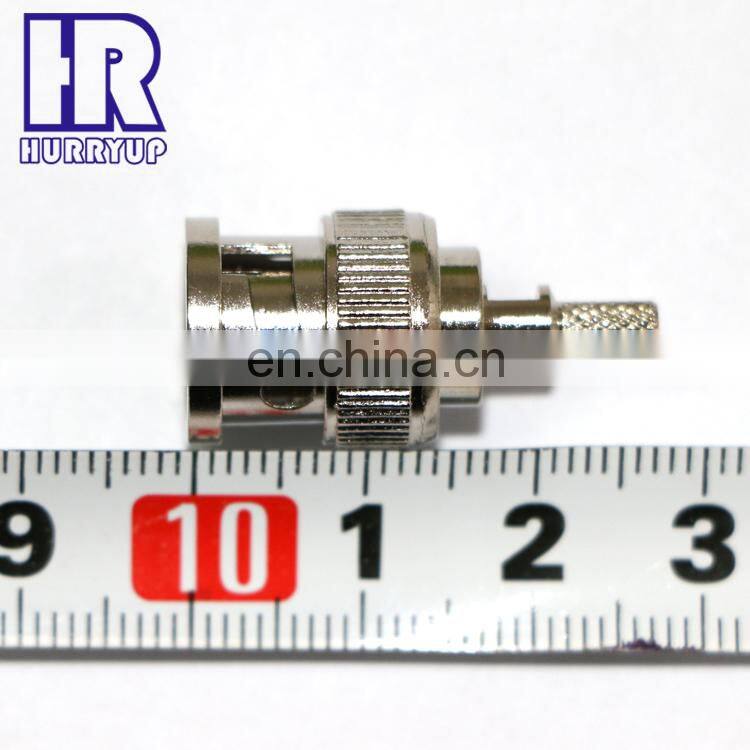

RF Coaxial BNC to C Male Straight Waterproof BNC Connector

OEM,Factory price,Fast delivery,Stable quality

RF coaxial connector

Product Code:BNC-C Male Connector

Product Name:BNC Connector

Part Number:CW12

Environment protect information:

satisfy RoHS demand

Electrical performance

Characteristic impedance:

50Ω

Rated current:

0~18GHz

Contact resistance:

inner conductor≤3mΩ

outside conductor≤2mΩ

Dielectrically withstanding voltage:

1000VRMS

Voltage rating:

335 VRMS

Insulation Resistance:

≥ 5000MΩ

Mechanical performance

Inner conductor separating force:

≥0.28N

Durability:

500 times

Material and surface treatment:

metal material, workmanship and surface treatment

Contact

Material of male:

copper alloy

Surface treatment:

full copper and silver-plated

Workmanship:

machining operation

Material:

copper alloy

Surface Treatment:

full copper and silver-plated

Workmanship:

machining operation Plastic, workmanship and forming

Insulator

Material:

polytetrafluoroethylene

Workmanship:

machining operation

Operation environment

Temperature Range:

-55℃~+155℃

Shock:

500 m/s2

Vibration:

10~2000Hz,10m/s2

Structure and Dimension

Maximum dimension of plug:

Customized

Brief Introduction

Package and Store:

100PCS/package

We are a large company manufacture RF coaxial connectors.

BNC connector(CW12)is one kind of microminiature RF coaxial connectors with snap-on coupling self-lock mechanism,Characteristic impedance is 50Ω.They are widely used in connection with RF coaxial cable or the transmission of RF signal in the mobile communication system, GSM,GPRS,CDMA,LTE,GPS,GNSS,GLONASS,BEIDOU corresponding to the network,IT field and LANS etc. The characteristic of connector is in small volume, light weight and convenient connection.
