North America Region/Operator 1.2Gbps/150Mbps LTE Cat.18 Module 4G LTE-A EG18-NA EG18NA EG18
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10Mbps/5Mbps EMEA/Korea/Thailand Region/Operator LTE Cat1 Module LTE EC21-EC EC21ECNegotiableMOQ: 1 -
North America Region/Operator GNSS Optional 10Mbps/5Mbps LTE Cat 1 Module EC21-V EC21VNegotiableMOQ: 1
-
Australia/New Zealand/Taiwan/Brazil 10Mbps/5Mbps GNSS Optional LTE Cat1 Module EC21-AUT EC21AUTNegotiableMOQ: 1
-
Australia/New Zealand/Taiwan/Brazil 10Mbps/5Mbps IoT Wireless Communication Module 4G LTE EC21-AUV EC21AUVNegotiableMOQ: 1
-
Japan Region/Operator 10Mbps/5Mbps GNSS Optional LTE Cat1 RF Cellular Communication Module EC21-J EC21JNegotiableMOQ: 1
Description
Overview

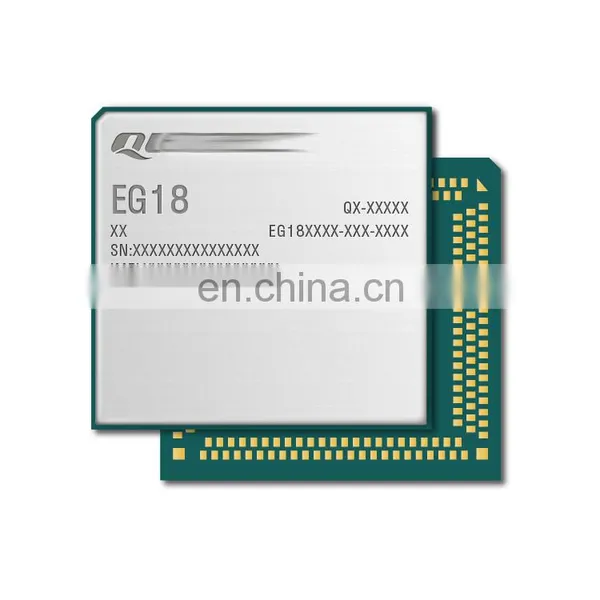

The EG18 is a series of LTE Cat 18 IoT modules in an LGA form factor measuring 39.5mm x 37mm x 2.8mm, which meets the 3GPP Release 12 standard. The EG18 is compatible with Quctel’s Cat 6 and 12 modules EG06 and EG12, to enable ease of migration between different categories. The series consists of two variants to meet various geographical demands, which can be compared via the table above.
Delivering maximum downlink rates of 1.2Gbps and uplink rates of 150Mbps under LTE, the EG18 supports a range of applications that require fast and reliable transmission of large amounts of data, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, and Linux) allow the module to serve a wide range of IoT applications with demanding data transmission requirements.
Key Features
Compatible with Quctel’s Cat 6 and 12 modules EG06 and EG12
Supports DL 5x carrier aggregation
Supports 256QAM
Supports 4x4 MIMO
Supports DFOTA
Supports DTMF
EG18-EA |
EG18-NA |
|
REGION / OPERATOR |
EMEA/APAC①/Brazil |
North America |
FREQUENCY BANDS |
||
LTE-FDD |
B1/ B3/ B5/ B7/ B8/ B20/ B28 |
2/ B4/ B5/ B7/ B12/ B13/ B14/ B17②/ B25/ B26/ B29③/ B30/ B66/ B71 |
LTE-TDD |
B38/B40/B41 |
B41 |
WCDMA |
B1/ B3/ B5/ B8 |
B2/ B4/ B5 |
GNSS |
GPS/ GLONASS/ BeiDou (Compass)/ Galileo/ QZSS |
GPS/ GLONASS/ BeiDou (Compass)/ Galileo/ QZSS |
DATA TRANSMISSION |
||
LTE-FDD |
1.2Gbps (DL)/ 150Mbps (UL) |
1.2Gbps (DL)/ 150Mbps (UL) |
LTE-TDD |
545Mbps (DL)/ 90.6Mbps (UL) |
545Mbps (DL)/ 90.6Mbps (UL) |
DC-HSPA+ |
42Mbps (DL)/ 11.5Mbps (UL) |
42Mbps (DL)/ 11.5Mbps (UL) |
WCDMA |
384Kbps (DL)/ 384Kbps (UL) |
384Kbps (DL)/ 384Kbps (UL) |
CERTIFICATIONS |
||
CARRIER |
Australia: Telstra |
America: Verizon*/ AT&T*/T-Mobile*/ U.S. Cellular* |
REGULATORY |
Global: GCF Europe: CE Australia & New Zealand: RCM |
Global: GCF North America: PTCRB America: FCC Canada: IC |
OTHERS |
RoHS/ WHQL |
RoHS/ WHQL |
EG18-EA |
EG18-NA |
Why Choose Us
FAQ
Q1. What is the minimum order quantity for your products?
A1. Minimum order quantity starts from ONE piece.
Q2. What's the quality of your products?
A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.
Q3. Is this product free of shipping or free samples?
A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.
