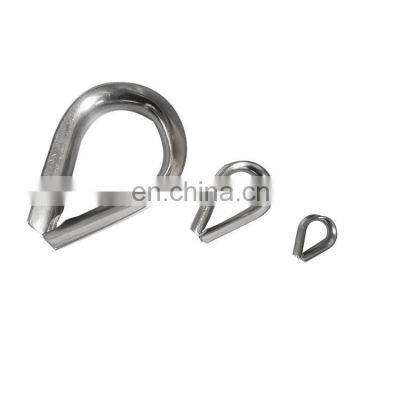

High Strength Professional Rigging Hardware Wire Rope Cable Thimble For Sales

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

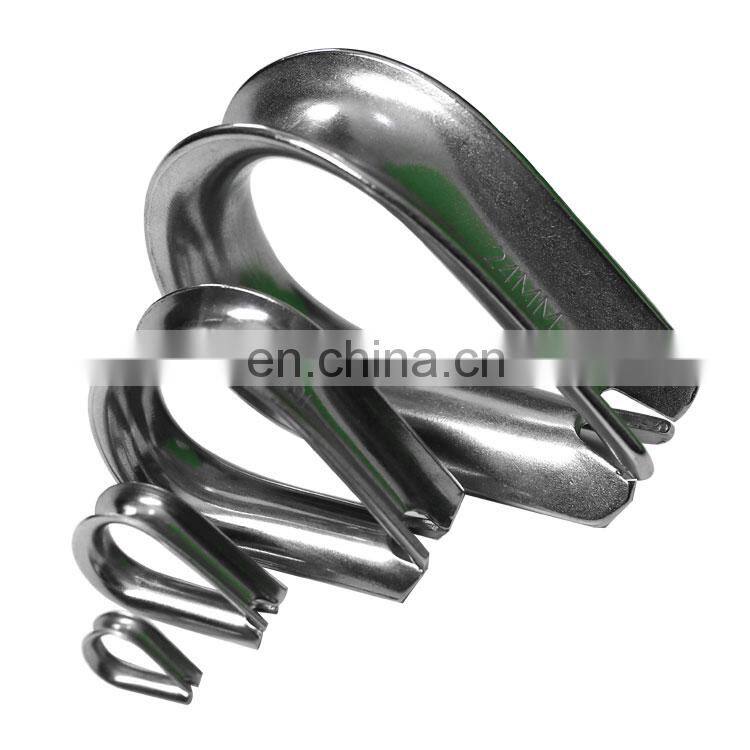

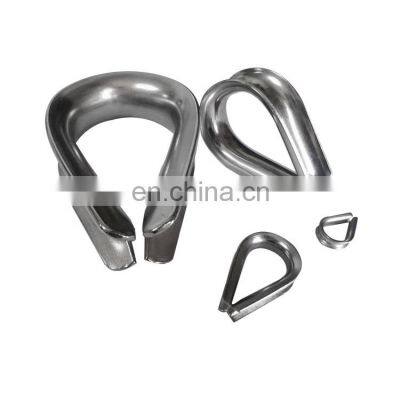

Wire rope thimbles are made from grade 304 stainless steel and grade 316 stainless steel, ss316 is better than ss304 in corrosion resistance and durability, if their application areas are very bad like marine and biogas..., we recommend you choose grade 316 stainless steel, If not, SS304 is good enough.

Wire rope thimbles are available in size from 1/4" to 1 1/4", when you don't know how to choose the size of wire rope clip, it depends on the diameter of wire rope, their detailed pictures and dimensions are below for your reference. if you have any question about size, material or something else, please feel free to contact us, you could find our contact information on contacts pages and the right of this page, we will be very happy to receive your message!

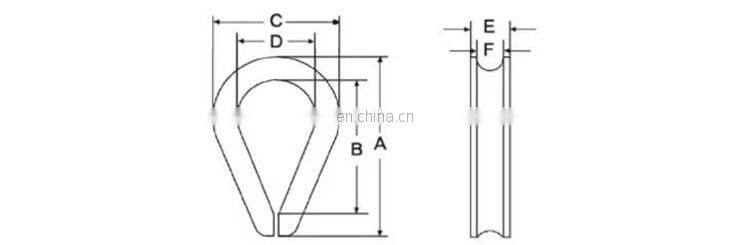

sizes	weight（g）	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
1/8''	0.012	49.53	33.53	28.92	17.78	6.35	4
3/16''	0.012	49.53	33.53	28.92	17.78	6.35	4
1/4''	0.012	55.62	41.4	38.1	22.35	10.41	7.11
5/16''	0.05	63.5	74.75	45.97	26.92	12.7	8.64
3/8''	0.1	73.5	54.1	54.1	28.7	16	10.41
7/16''	0.136	82.55	60.45	60.45	31.75	18.29	11.94
1/2''	0.22	92.2	69.85	69.85	38.1	20.57	13.46
9/16''	0.22	92.2	69.85	68.33	38.1	22.35	15
5/8''	0.32	107.95	82.55	79.5	44.45	24.64	16.76
3/4''	0.6	127	92.25	99.77	50.8	31	19.81
7/8''	0.86	139.7	107.95	107.95	57.15	35.05	23.88
1''	1.06	155.7	114.3	125.48	63.5	39.62	26.92
1-1/8''-1-1/4''	1.54	177.8	130.3	149.35	73.15	45.97	33.27
1-3/8''	3.71	230.12	165.1	172.97	88.9	55.63	36.58
1-1/2''	4.2	228.6	158.75	181.1	88.9	65.02	39.62
1-5/8''	6.25	285.76	203.2	206.5	101.6	69.09	43.67
1-3/4''	7.1	309.63	228.6	215.9	114.3	72.14	46.74
2''	10.44	384.3	304.8	263.65	152.4	78.49	53.9
2-1/4''	18.44	435.1	355.6	301.75	177.8	92.2	60.45
2-1/2''	26.3	522	399.1	316.2	187.8	102.6	66.6

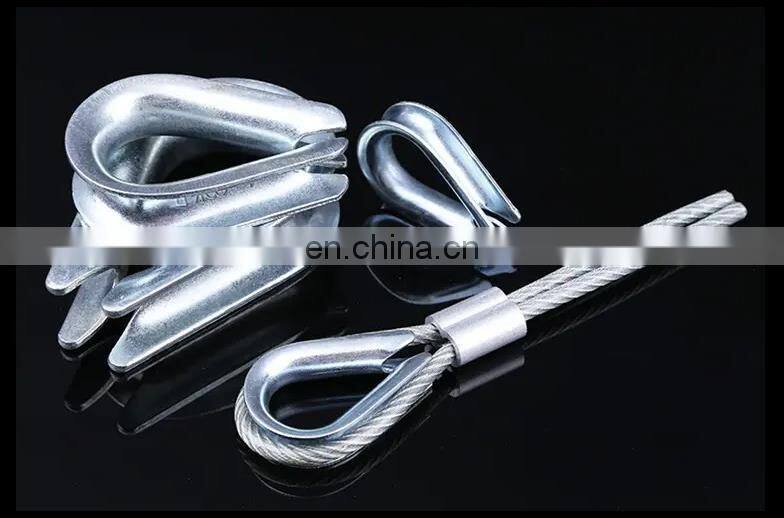

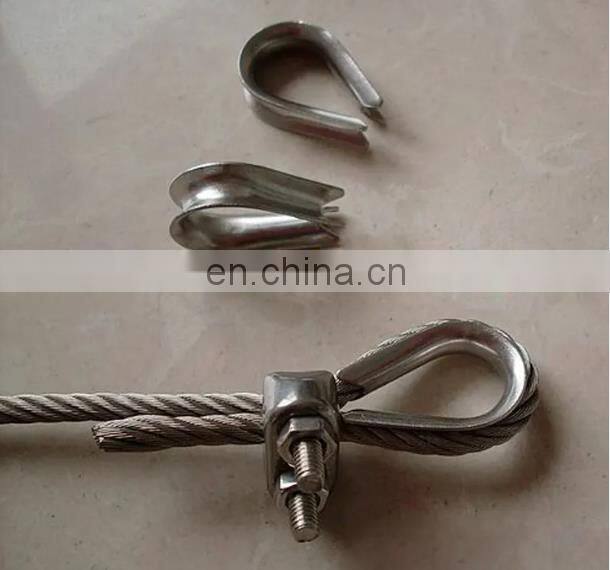

Wire rope set ring

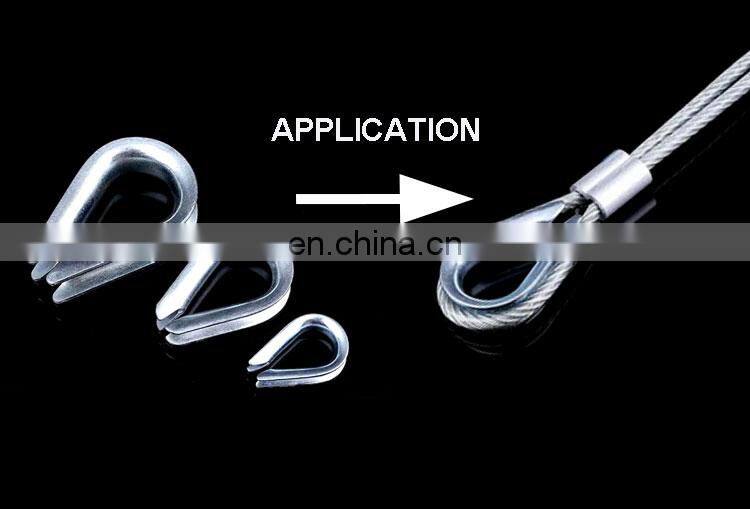

for the end of the rope around tying, to prevent excessive bending and wear, and can be connected to other components of the heart metal ring.

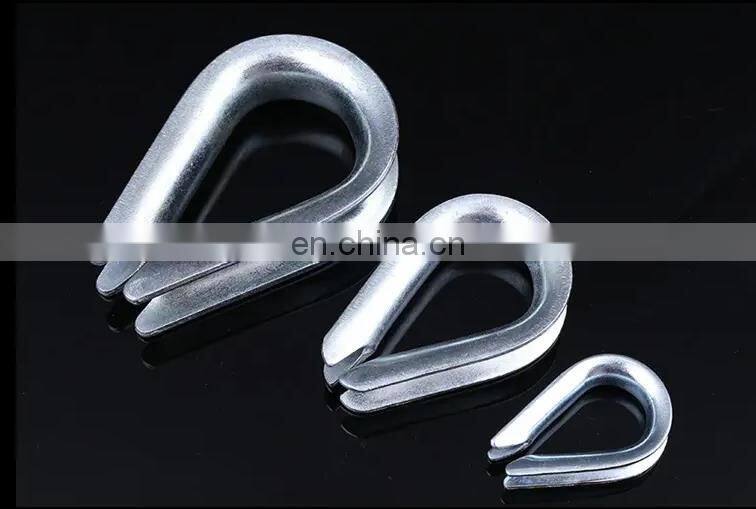

Stainless steel material

bright surface, beautiful grade,rust proof, corrosion resistant, high strength, durable；

More durable

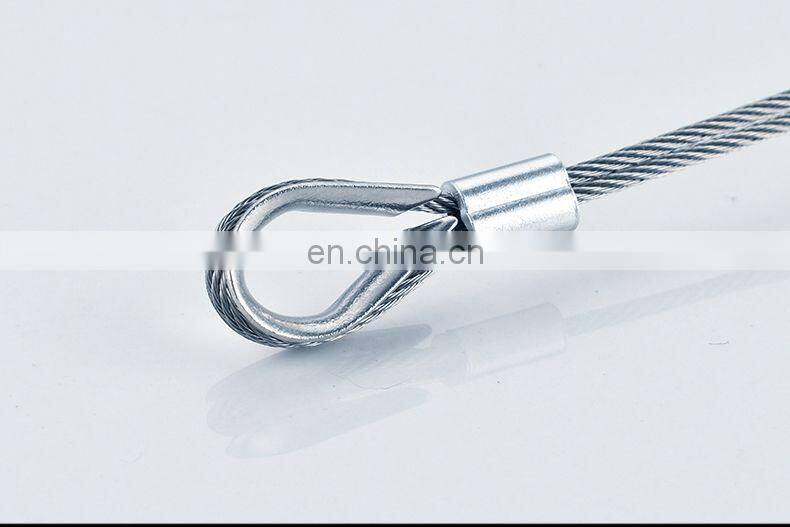

Can effectively protect the wire rope, easy to use;Good shock resistance, prolong the service life of wire rope

Cangzhou Ruichi Hardware Manufacturing Co., Ltd
We are professional in the One-Stop Solution for OEM &ODM metal stamping. We are also a professional manufacturer and supplier of spare parts specializing in stamping, sheet metal, CNC machining, chasis and cabinets.
