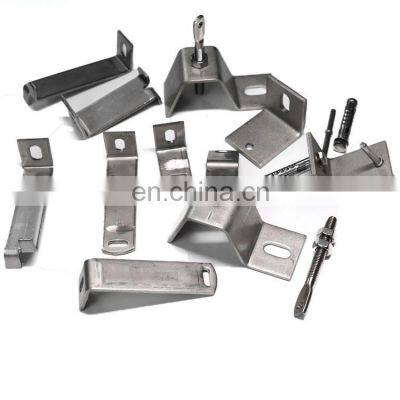

Help CenterStainless Steel Stone Cladding Clamps Stone Fixing Brackets
Related Products
-
Open Type Alloy Steel Galvanized Rigging Hardware Steel Wire ThimbleNegotiableMOQ: 1 -
European Stainless Steel Hot Dip Galvanized Carbon Steel ThimbleNegotiableMOQ: 1
-
Easy Installation Black Color Steel Garden Bed Corner BracketNegotiableMOQ: 1
-
Manufacturer Stainless Steel SS304 Stone Wall Support System Wall Cladding Aluminum BracketNegotiableMOQ: 1
-
Factory Price Heavy Duty Stainless Steel Galvanized Wire Rope Thimble In StockNegotiableMOQ: 1

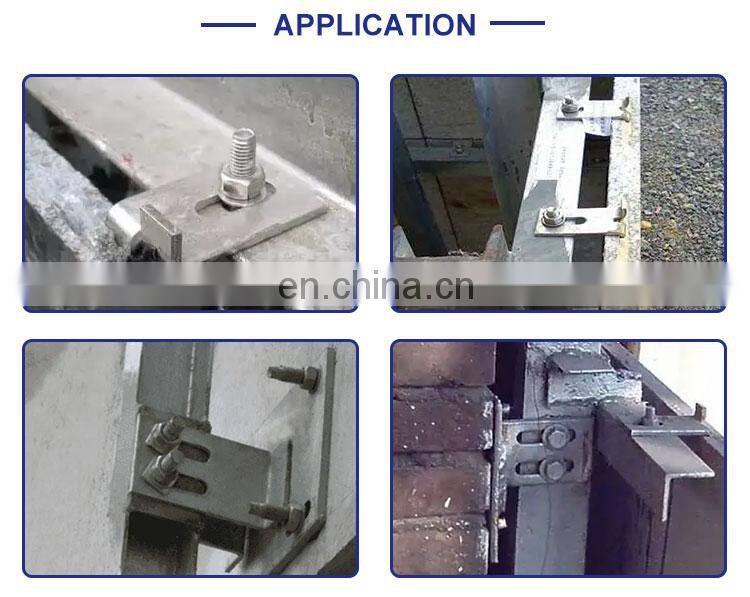

2. In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load bearing carrying half
3. The weight of the slabs above. Anchors also act as restraint holding the slabs below and
restraining against wind suction and pressure
4. In vertical joints installation slabs are pinned at the left and right sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab. Half the weight of the slab on the left and half the weight of the slab on the right. Anchors on the top are restraint anchors holding the slabs and restraining against wind suction and pressure
5. Three - dimensional adjustability allows quick and easy installation
|

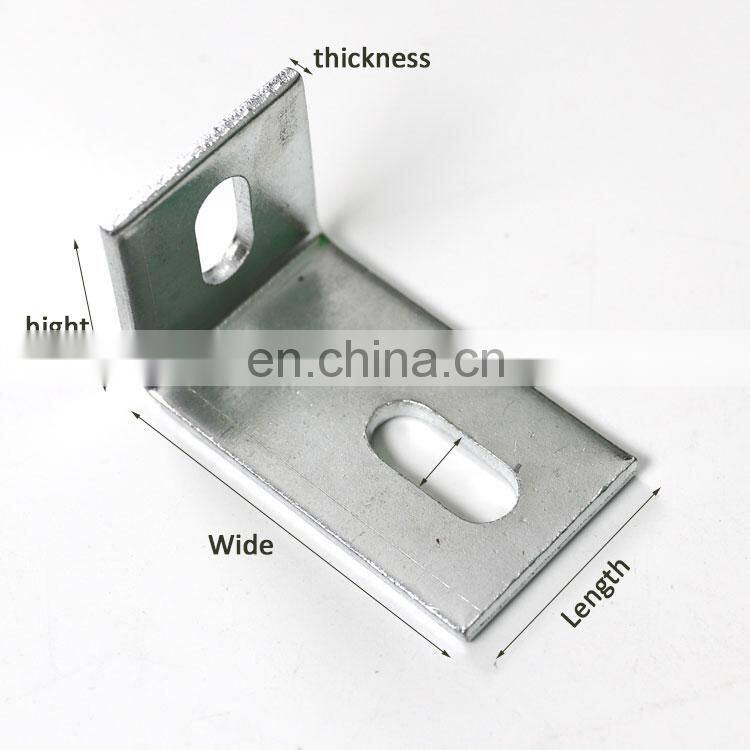

Length |
width |
Hight |
thickness |
hole diamter |
Nut |
|
40 |
40 |
40 |
3.5 |
10 |
M8 |
|
40 |
50 |
40 |
3.5 |
10 |
M8 |
|
40 |
60 |
40 |
3.5 |
10 |
M8 |
|
40 |
70 |
40 |
3.5 |
10 |
M8 |
|
40 |
80 |
40 |
3.5 |
10 |
M8 |
|
40 |
90 |
40 |
3.5 |
10 |
M8 |
|
50 |
50 |
50 |
4.5 |
13 |
M10 |
|
50 |
60 |
50 |
4.5 |
13 |
M10 |
|
50 |
70 |
50 |
4.5 |
13 |
M10 |
|
50 |
80 |
50 |
4.5 |
13 |
M10 |
|
50 |
90 |
50 |
4.5 |
13 |
M10 |
|
50 |
100 |
50 |
4.5 |
13 |
M10 |
|
40 |
40 |
40 |
3 |
10*20 |
|
|
40 |
40 |
40 |
4 |
10*20 |
|
|
40 |
60 |
40 |
4 |
10*20 |
