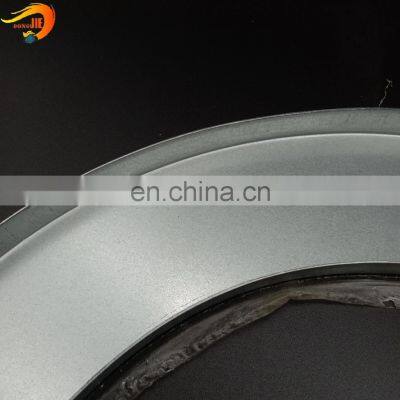

600 Series HEPA Pre Filter Cylindrical Filter Metal End Cap for Cartridge Filter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Eg Anti Finger Printed GI Hot-DIP Galvanized Metal Dust Air Filter End Caps
-
OEM Galvanized Metal Filter End Caps for Air Cartridge Filter 25 Years Manufacturer
-
Round Dome Shape Brass Smoking Pipe Screens Wire Mesh Filter Wire Mesh
-
Tobacco Smoking Pipe Bowl Net Screen Filter for Smoking Pipe
-
Wholesale Cheap Tobacco Pipes Weed Filters Screen for Pipes Smoking
-
Stainless Steel Tobacco Smoke Screen Pipe Metal Filters
Product Description
You May Like
OEM Cartridge Filter End Caps
Product Description
Filter end cap is mainly used to seal both ends of the filter material and support the filter material to effectively improve the bearing capacity of the filter material. Dongjie has been specialized in the metal filter end caps for decades with a wide range of end caps for the cartridge filter. We are able to advice customers on the best material proper thickness opt for.
Product Name | OEM Filter End Caps |
Material | Galvanized steel, stainless steel, anti fingerprint, copper/brass, etc customized |
Thickness | 0.30 mm to 3.00 mm |
Outer Diameter | 20.00 mm to 1000 mm |
Types | Open/closed, with/without holes, customized |
Delivery Time | According to customer's requirement |
Packing | Poly bag/Piece or customized |
Applications | Dust filters, air filter, fuel filter, oil filter, air compressor, water filter, activated carbon filters cartridges, etc. |
OEM | Available |
Quality Control | ISO Certicificate |
After-sale Service | Product test report, online follow up. |

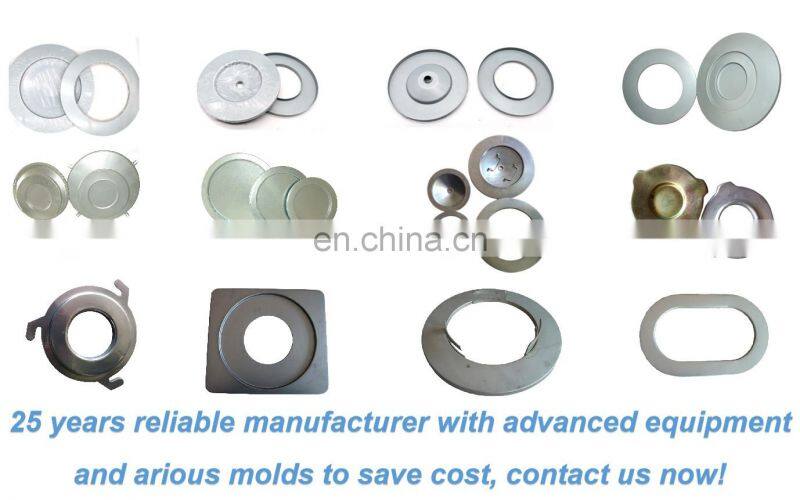

There are some specifications of filter caps as below for your reference.
If you need other shapes, we could make customization.

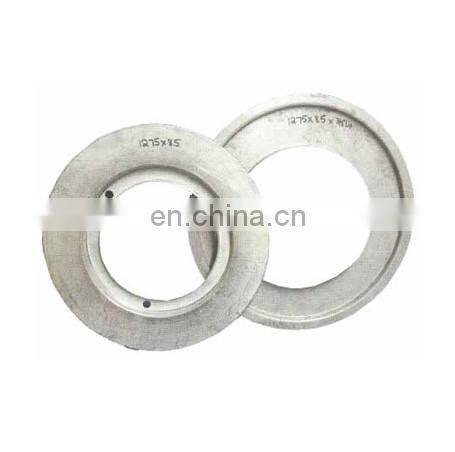

Open Round End Cap with Tri-Bolt Holes | ||||
Inches | Millimeters | |||
Outer diameter | 12.75 | 323.85 | ||
Inner diameter | 8.5 | 215.9 | ||
Inner height | 0.54 | 13.716 | ||
Outer height | 0.5 | 12.7 | ||
Inner rim diameter | 6.75 | 171.45 | ||
Open Round End Cap with Outer Lip | ||||
Inches | Millimeters | |||
Outer diameter | 12.75 | 323.85 | ||
Inner diameter | 8.5 | 215.9 | ||
Inner diameter | 0.625 | 15.875 | ||
Outer height | 0.368 | 9.3472 | ||
Lip | 0.375 | 9.525 | ||
Inquiry now!

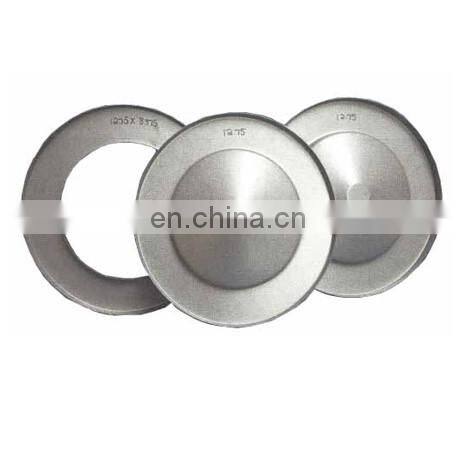

Open Round End Cap | ||||
Inches | Millimeters | |||
Outer diameter | 12.75 | 323.85 | ||
Inner diameter | 8.5 | 215.9 | ||
Inner height | 0.5 | 12.7 | ||
Outer Height | 0.5 | 12.7 | ||

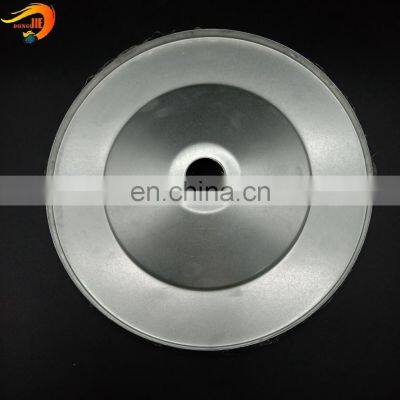

Closed Round End Cap | ||||
Inches | Millimeters | |||
Outer diameter | 12.75 | 323.85 | ||
Inner diameter | 8.375 | 212.725 | ||
Inner height | 0.5 | 12.7 | ||
outer height | 0.5 | 12.7 | ||
Closed Round End Cap with Bolt Hole | ||||
Inches | Millimeters | |||
Outer diameter | 12.75 | 323.85 | ||
Inner diameter | 8.375 | 212.725 | ||
Inner height | 0.5 | 12.7 | ||
Outer height | 0.5 | 12.7 | ||
Bolt Hole | 0.625 | 15.875 | ||
Inquiry now!

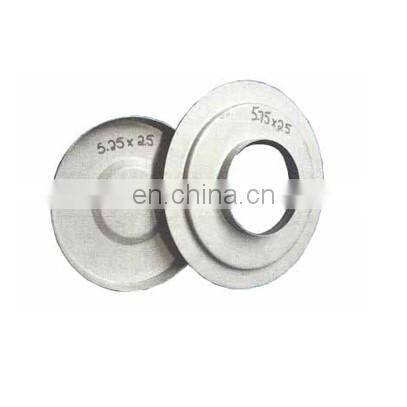

Open Round End Cap with Flange | ||||
Inches | Millimeters | |||
Outer diameter | 5.75 | 146.05 | ||
Inner diameter | 2.5 | 63.5 | ||
Inner height | 0.5 | 12.7 | ||
Outer height | 0.278 | 7.0612 | ||
Closed Round End Cap | ||||
Inches | Millimeters | |||
Outer diameter | 5.25 | 133.35 | ||
Inner diameter | 2.5 | 63.5 | ||
Inner height | 0.875 | 22.225 | ||
Outer height | 0.172 | 4.3688 | ||
Why Choose Our Products
1. 25 years' experience in producing filter end caps.
2. Accurate size according to customer requirements
3. Ensure the filters have a longer life with excellent heat and chemical resistance.
4. Effectively improve the capacity of the filter material.
5. Various exist mold to save your cost.
6. Qualified raw materials with certifications to make the filter caps.
Applications
Dongjie supplied filter end caps/filter covers are widely used for dust filter, air filter, oil filter, fuel filter, activated carbon filter cartridges.
Inquiry now!
About Company
ANPING DONGJIE WIRE MESH PRODUCTS CO., LTD
We are a specialized manufacturer for the development, design and production of filter end caps, metal stamping parts, expanded metal mesh, perforated metal mesh, decorative wire mesh for decades. Dongjie has adopted ISO9001:2008 Quality System Certificate, SGS Quality System Certificate and modern management system.
Inquiry now!

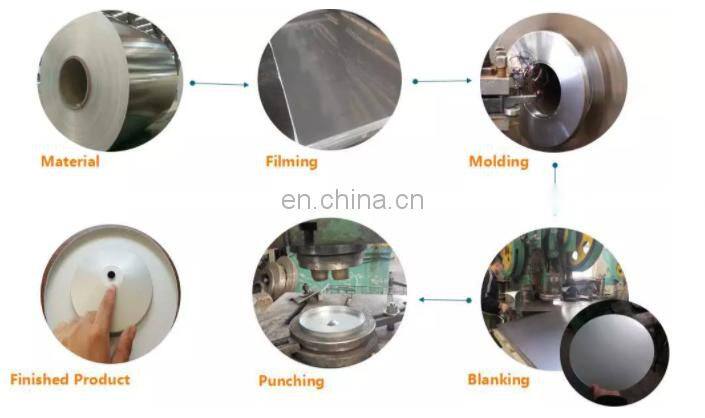

Production Line
Anping Dongjie Wire Mesh Products Factory is founded in 1996 with over 10,000 sqms areas. We have more than 100 professional workers and 4 professional workshops: expanded metal mesh workshop, perforated workshop, stamping wire mesh products workshop, molds made and deep-processing workshop.
Inquiry now!

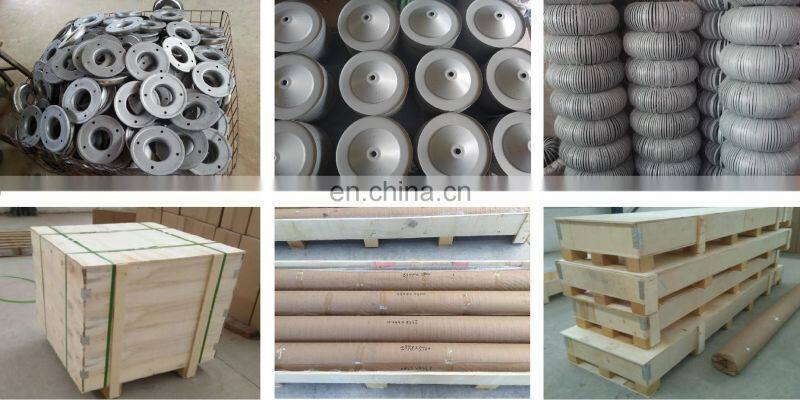

Packing&Delivery
Quantity(sqm) | Delivery Time | Shipping Way | Shipping Time |
1-300 | 3-5 days after received your payment | Door to door by express | 5-10 days |
300-500 | 5-10 days after received your payment | Door to door by express | 5-10 days |
500-1000 | 10-15 days after received your payment | Shipping by air Shipping by sea | 20-30 days |
Feedback
As always stuck into “Quality Proves Strength, Details Reach to Success”, Dongjie has achieved highly acclaim in the old and new customers.
FAQ
Q1: Are you a manufacturer or a trader?
A1: We are a professional manufacturer of filter end caps products. We have been specialized in metal stamping parts for decades and accumulated rich experiences in this field.
Q2: How to make an inquiry of Filter End Caps?
A2: You need to provide material, thickness, types of filter caps/drawings, and the total quantity to ask an offer. You can also indicate if you have any special requirement.
Q3: Could you provide free sample?
A3: Yes, we can provide free sample with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.
Q4: How is your Payment Term?
A4: Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment terms we can also discuss.
Q5: How is your delivery time?
A5: ①We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material.
② According to quantity and technology you required for the non-stock items to offer you the exact delivery time and producing schedule.
