Industrial Dust Filter Cartridge Dust Collector

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

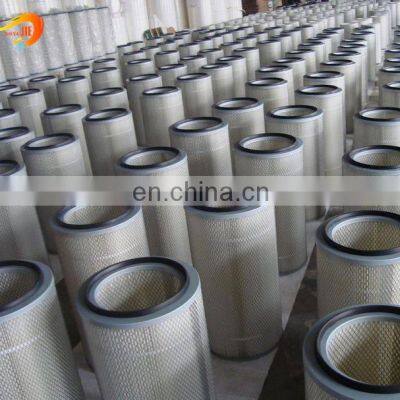

Industrial Dust Filter Cartridge Dust Collector

OEM Filter Cartridge

Available with us is a wide array of Dust Collection Filter. These products are manufactured at par with the industrial as well as international standards of quality. Our products are available at the most affordable prices and can also be customized in terms of various designs as per the specific requirements of the valuable patrons.

Features:
·Durable and rigid material, washable
·Excellent resistance against electric conductance, oil and water
·Fine finish

Product Description

Brand	DONGJIE
Efficiency	99.99%
Filter Cartridge Height	16-52 inch
Flow Rate	600-1000 m³/h
Porosity	0.5μm
Pleat Width	25-55mm

Types of Dust Collector Filter Cartridge

·“DONGJIE” offers pleated dust collection filter Cartridges for gas handling – dust collection for effective solid-gas separation. Pleated dust collection cartridges are available with flanged(Collar) type, double snap band type or Aluminum 3 – lock flange type. Pleated three lock flanged type cartridges can be installed using tie rods in the cellar outside of the filter cartridge.
“DONGJIE” recommends proper pleat height nos of pleats based on pleat to pleat distance to avoid any dead zone for optimum utilization of filter cartridge. For better efficiency of filtration and solid removal, “DONGJIE” recommends Aluminum coated
filter media. For reduced recurring expenses, "DONGJIE" offers filtered cartridges with removable core

Pleated Cylinder

Application: Air Pollution Control filter cartridge to collect dust, fumes and/or oil mist in many different industrial applications and processes.

Gasket: Rubber

Separator: Hot Melt Separator Technology

Sealant: Polyurethane

Temperature max: 80℃

Mounting/Frames: Perforated inner Core GV (optional Stainless steel)

Filter Class: M

Options: PA6 flange, 4-lug design

Model Name	Length(mm)	Media Area(m2)
DJ-ADF-300-01	300	1.1
DJ-ADF-300-02	300	1.1
DJ-ADF-300-03	300	1.5
DJ-ADF-600-01	600	2.1
DJ-ADF-600-02	600	2.2
DJ-ADF-600-03	600	3.1
DJ-ADF-1000-01	1000	3.5
DJ-ADF-1000-02	1000	3.6
DJ-ADF-1000-03	1000	5.1
DJ-ADF-1200-01	1200	4.2
DJ-ADF-1200-02	1200	4.32
DJ-ADF-1200-03	1200	6.12

Pleated Cylinder

Application: Air Pollution Control filter cartridge to collect dust, fumes and/or oil mist in many different industrial applications and processes

Type: Pleated Cylinder

Gasket: Rubber

Separator: Hot Melt Separator Technology Sealant: Polyurethane
Temperature max: 80℃

Mounting/Frames: Perforated inner

Filter Class: MOptions: PA6 flange, 4-lug
design

Modle Name	Length(mm)	Media Area(m2)
DJ-ADF-300-04	300	5
DJ-ADF-300-05	300	10
DJ-ADF-600-04	600	5
DJ-ADF-600-05	600	10
DJ-ADF-1000-04	1000	17
DJ-ADF-1200-04	1200	20

Pleated Cylinder

Application: Air Pollution Control filter cartridge to collect dust, fumes and/or oil mist in many different industrial applications and processes

Type: Pleated Cylinder

Gasket: Rubber

Separator: Hot Melt Separator Technology Sealant: Polyurethane

Temperature max: 80℃

Mounting/Frames: Perforated inner Core GV (optional Stainless steel)

Filter Class: M

Options: PA6 flange, 4-lug design

Modle Name	Length(mm)	Media Area(m2)
DJ-ADF-600-06	600	10
DJ-ADF-600-07	600	11
DJ-ADF-660-06	660	10
DJ-ADF-660-07	660	11
DJ-ADF-660-08	660	17
DJ-ADF-750-01	750	12.5
DJ-ADF-1000-06	1000	11
DJ-ADF-1000-07	1000	17
DJ-ADF-1200-06	1200	17
DJ-ADF-1200-07	1200	20

ANPING DONGJIE WIRE MESH PRODUCTS CO., LTD

We are a specialized manufacturer for the development, design and production of filter mesh, filter end caps, filter cartridges and stamping parts for decades. Dongjie has adopted ISO9001:2008 Quality System Certificate, SGS Quality System Certificate and modern management system.

Production Line

Anping Dongjie Wire Mesh Products Factory is founded in 1996 with over 10,000 sqm areas. We have more than 100 professional workers and 4 professional workshops: expanded metal mesh workshop, perforated workshop, stamping wire mesh products workshop ,molds made and deep-processing workshop.

Packing&Delivery

Quantity(sqm)	Delivery Time	Shipping Way	Shipping Time
1-300	3-5 days after received your payment	Door to door by express	5-10 days
300-500	5-10 days after received your payment	Door to door by express	5-10 days
500-1000	10-15 days after received your payment	Shipping by air Shipping by sea	20-30 days

Feedback

As always stuck into “Quality Proves Strength, Details Reach to Success”, Dongjie has achieved highly acclaim in the old and new customers.

FAQ

Q1: Are you a manufacturer or a trader?

A1: We are a professional manufacturer of perforated metal wire mesh products. We have been specialized in wire mesh for decades and accumulated rich experiences in this field.

Q2: Could you provide free sample?

A3: Yes, we can provide free sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.

Q3: How is your Payment Term?

A4: Generally, our payment term is T/T 30% in advance and the balance 70% against the copy of B/L. Other payment terms we can also discuss.

Q4: How is your delivery time?

A5: ①We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. ② According to quantity and technology you required for the non-stock items to offer you the exact delivery time and producing schedule.
