Home > Products > Filter element > High Quality Custom Stainless Steel Filter End Cover Manufacturers

High Quality Custom Stainless Steel Filter End Cover Manufacturers

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

High quality custom stainless steel filter end cover manufacturers

Product Description

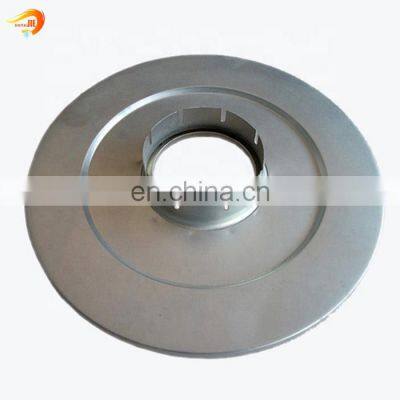

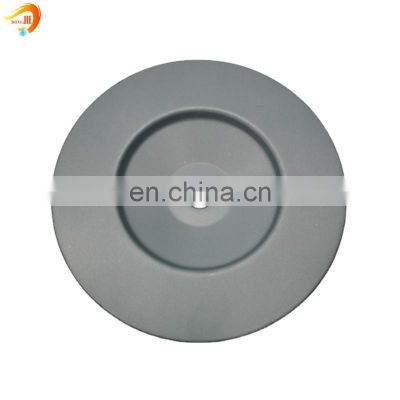

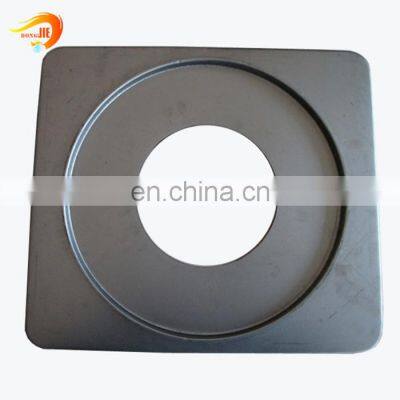

Filter end cap

The filter end cap mainly serves to seal both ends of the filter material and support the filter material. The filter end caps are stamped into various shapes as needed from the steel sheet.At the same time our company can be customized according to your needs

Product Name	High quality custom stainless steel filter end cover manufacturers
Material	Galvanized/Anti-fingerprint/Plastic, as your required
Applications	Air Filters/Dust remove fiters/oil filters/fuel filters
OEM	Acceptable
Sample	free sample service available
Certifications	ISO 9001:2008 Certificate
Standard	meet International standard

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525

Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt hole	0.625	15.875
Open Round End Cap
	Outer height	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer height	0.5	12.7

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

Note: The above are the parameters of part of the filter end cover of our company, we can also customize according to your needs.

You May Like

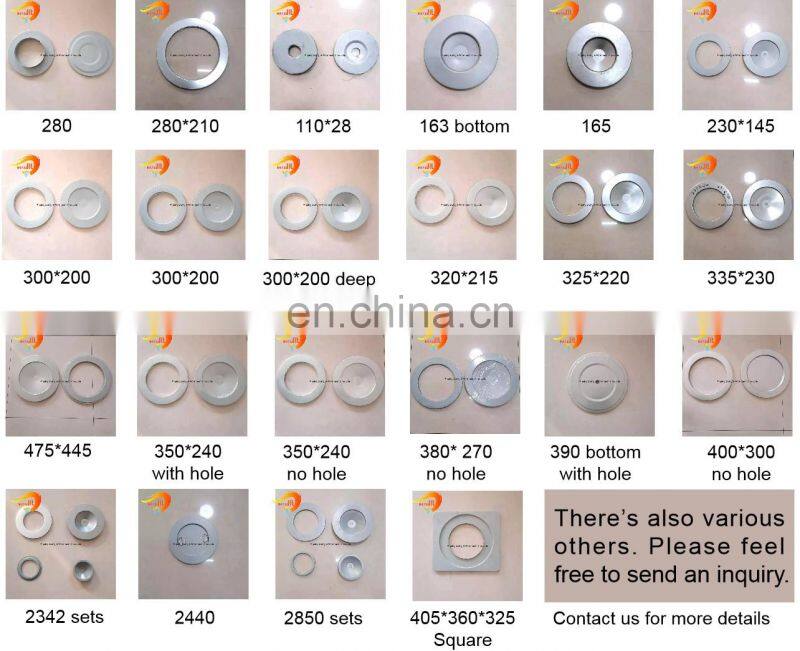

Products Pictures Show

Our company has advanced mold manufacturing equipment and their own mold opening technical personnel. We can make moulds according to drawings or samples sent by customers.

Why Choose Us

About us

We are a specialized manufacturer for the development, design and production of filter end caps for 25 years. Dongjie has the most complete production system and professional technical team and engineers. ODM&OEM is our biggest advantage.

As always stuck into “Quality Proves Strength, Details Reach to Success”, Dongjie has achieved highly acclaim in the old and new customers.

High quality products

High quality products are fundamental to the development of enterprises, Dongjie in strict quality control at the same time, every link of the products are strict quality inspection, to ensure high standards of factory.

Developing the molds

Our factory has a professional mold workshop, with 2 mold developing machines and 3 mold developing technicians. The molds will be inspected and maintained regularly to ensure that the products can meet the clients' requirements.

High quality raw material

We use high-quality materials, and the products we produce are high-quality, which are highly praised by new and old customers.
Good materials’ edge is more smooth and durable with good anti-corrosion&strong blast advantages.

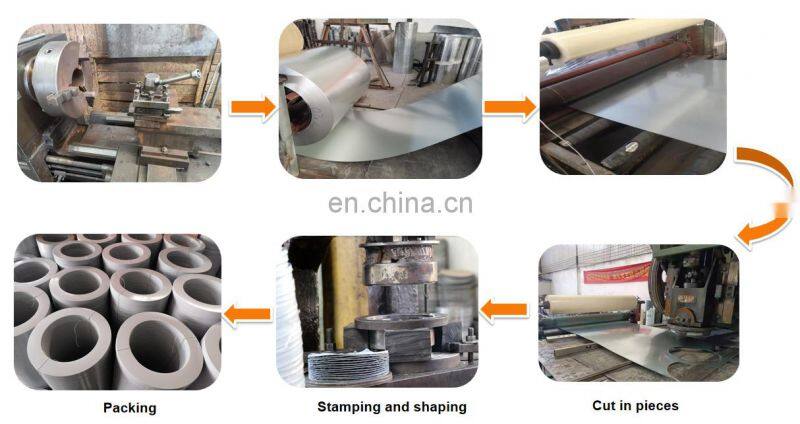

Production Process

Custom service

Our facotory has more than 25 years of production experience, and there are more than 1500 sets of molds, and molds of the same specifications can be selected from the mold library according to customer requirements. If there is no corresponding mold, we also have the ability to make OEM & ODM filter end caps. Dongjie has advanced mold creating machines and our own mold opening technicians. We can make the mold according to the customer's drawings or samples sent to us.

Certificates

Packing & Delivery

Bubble film

Reduce the friction between the products and the wooden cases during the transportation process, and prevent the possible damage
and color loss caused by friction.

Wooden case

A special wooden case for export products to prevent products from being damaged by extrusion, falling and losing during
transportation.

Anti-fouling film

Prevent dust from entering the wooden case and ensure the cleanliness of the wooden case; Waterproof, to ensure that the wooden case will not water, prevent the damage of the goods.

The finished product is usually packed with tie wire and then packed into woven bag or wooden box.

FAQ

Q1：How to make an inquiry of Filter End Cap? A1： You need to provide material, thickness of the material, drawing of the end cap including inner diameter, outer diameter and the quantity to ask an offer. You can also indicate if you have any special requirement. We can recommend according to your application also if you need our help. Q2：Could you provide free sample? A2：Yes, we can provide free sample together with our catalogue if we have stocks. But the courier charge will on your side. We'll send back the courier charge if you make an order. Q3：How is your Payment Term? A3：Generally, our payment term is T/T 30% in advance and the balance 70% before shipping. Other payment term we can also discuss. Q4：How is your delivery time? A4：Generally, we will calculate the production time according to the process and quantity of the product. If you are very anxious, we will coordinate with the production department.
