Stainless steel filter long end cap manufacturers Filter end cap

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

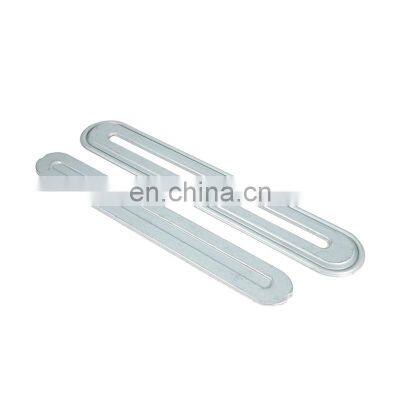

Stainless steel filter long end cap manufacturers Filter end cap

Product Description

Filter end caps

The filter end cap mainly serves to seal both ends of the filter material and support the filter material. The filter end caps are
stamped into various shapes as needed from the steel sheet.At the same time our company can be customized according to your needs.

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.54	13.716
Outer height	0.5	12.7
Inner rim diameter	6.75	171.45
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner diameter	0.625	15.875
Outer height	0.368	9.3472
Lip	0.375	9.525

Closed Round End Cap
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Closed Round End Cap with Bolt Hole
	Inches	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.375	212.725
Inner height	0.5	12.7
Outer height	0.5	12.7
Bolt hole	0.625	15.875
Open Round End Cap
	Outer height	Millimeters
Outer diameter	12.75	323.85
Inner diameter	8.5	215.9
Inner height	0.5	12.7
Outer height	0.5	12.7

Open Round End Cap with Tri-Bolt Holes
	Inches	Millimeters
Outer diameter	5.75	146.05
Inner diameter	2.5	63.5
Inner height	0.5	12.7
Outer height	0.278	7.0612
Open Round End Cap with Outer Lip
	Inches	Millimeters
Outer diameter	5.25	133.35
Inner diameter	2.5	63.5
Inner height	0.875	22.225
Outer height	0.172	4.3688

You May Like

Applications

Our company has advanced mold manufacturing equipment and their own mold opening technical personnel. We can make moulds according to drawings or samples sent by customers.

Why Choose Us

Enterprise introduction

Anping Dongjie Wire Mesh Products Co.,Ltd., located in Anping, China is a specialized manufacturer for the development, design and production of expanded metal mesh, perforated metal mesh, decorative wire mesh and stamping parts for decades. Dongjie has adopted ISO9001:2008 Quality System Certificate, SGS Quality System Certificate and modern management system. As always stuck into "Quality Proves Strength, Details Reach to Success", Dongjie achieves highly acclaim in the old and new customers.

High quality products

1. 25 years' experience in producing filter end caps. 2. Accurate size according to customer requirements 3. Ensure the filters have a longer life with excellent heat and chemical resistance. 4. Effectively improve the capacity of the filter material. 5. Various exist mold to save your cost. 6. Qualified raw materials with certifications to make the filter caps.

Exhibition

Our products are sold to more than 200 countries and regions all over the world, covering five continents. At the same time, our company has participated in many exhibitions and reached cooperation with domestic and foreign customers.

Customer feedback

With the tenet of "win customers by quality, develop market by reputation", the company has been well received by the industry and customers at home and abroad.

Production Process

Main Raw Materials

Stainless steel

Stainless steel is material that anti corrosion to the air, steam, water and acid, alkali, salt and other chemical corrosion medium.

The stainless steel used for filter end caps mainly includes 316 / 316L / 304 / 201, etc.

Electro-Galvanized steel

Electro-Galvanized steel (SECC) is a kind of composite coating sheet.After proceeding the electro-galvanizing treatment on the surface of galvanized steel,the steel will be more smooth with small tolerance. The filter end caps in SECC can avoid sweat stains on the surface and help bond the gaskets more firmly even clients use in the cold weather.

Galvanized steel

Galvanized steel is a steel sheet coated with a layer of zinc on the surface. The function of galvanizing is to prevent corrosion on the surface of the steel sheet and extend the lifetime. Compared with normal steel, galvanized steel makes the steel stronger and less scratches. The galvanized steel used to produce the filter end caps, must be oil-free and no spangles on the surface to help bond the gaskets well.

Certificates

Packing & Delivery

Bubble film

Reduce the friction between the products and the wooden cases during the transportation process, and prevent the possible damage
and color loss caused by friction.

Wooden case

A special wooden case for export products to prevent products from being damaged by extrusion, falling and losing during
transportation.

Anti-fouling film

Prevent dust from entering the wooden case and ensure the cleanliness of the wooden case; Waterproof, to ensure that the wooden case will not water, prevent the damage of the goods.

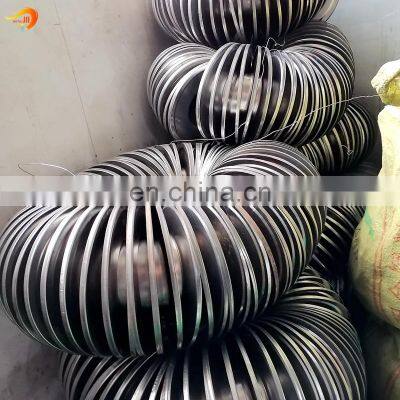

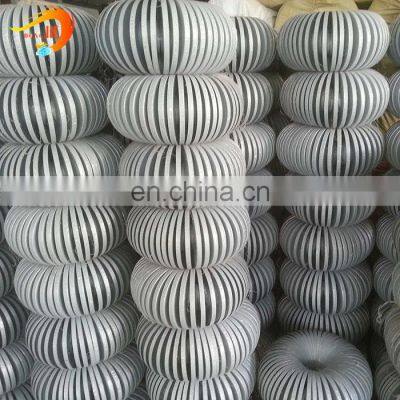

The finished product is usually packed with tie wire and then packed into woven bag or wooden box.

FAQ

Q1：How to make an inquiry of Filter End Cap? A1： You need to provide material, thickness of the material, drawing of the end cap including inner diameter, outer diameter and the quantity to ask an offer. You can also indicate if you have any special requirement. We can recommend according to your application also if you need our help. Q2：Could you provide free sample? A2：Yes, we can provide free sample together with our catalogue if we have stocks. But the courier charge will on your side. We'll send back the courier charge if you make an order. Q3：How is your Payment Term? A3：Generally, our payment term is T/T 30% in advance and the balance 70% before shipping. Other payment term we can also discuss. Q4：How is your delivery time? A4：Generally, we will calculate the production time according to the process and quantity of the product. If you are very anxious, we will coordinate with the production department.
