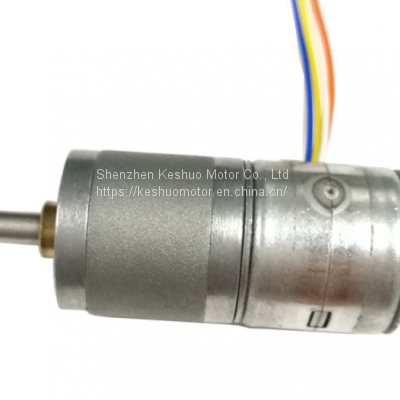

Miniature Stepper Motor, Diameter 20mm Two-phase Four-wire Urine Analyzer Reduction Motor
US$ 17.6 - 17.9
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Keshuo
Place of Origin:
China
Type:
Permanent Magnet
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
25mm Double Stacked Micro Reduction Motor 12V24V Planery Gearbox Stepper Motor With Large TorqueUS$ 23.3 - 23.6MOQ: 5 Pieces -
Miniature Stepper Motor Screw Slide Motor Biochemical Analyzer Stepper MotorUS$ 11.85 - 12.3MOQ: 5 Pieces
-
25MM Reduction Stepper Motor Quiet Transmission Stepper Motor High Precision Stepper MotorUS$ 12.97 - 14.97MOQ: 5 Pieces
-
8mm Motor Lens Micro Motor Gearbox Motor NoselessUS$ 13.9 - 14.2MOQ: 5 Pieces
-
1.8 Degree 42mm Hybrid Stepper Motor 1.7ohm 1.8A Nema17 MotorUS$ 4 - 4.8MOQ: 10 Pieces
Brand Name
Keshuo
Place of Origin
China
Type
Permanent Magnet
Phase
2
Certification
ROHS
Current / Phase
0.2A
Holding Torque
0.2NM
Step Angle(degrees)
18

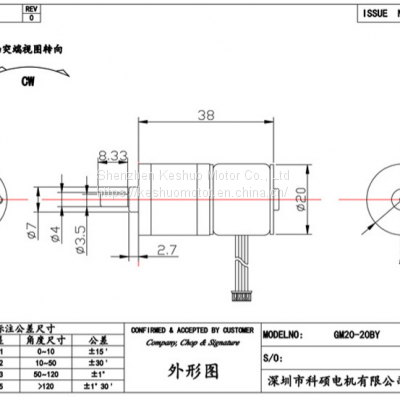

Product model: GM20-20BY
Product type: Brush DC stepper motor
Rated power: 2.4W
Rated current: 0.2A
Rated speed: 21rpm
Rated voltage: 12V
Rated torgue: 0.2NM
Application: Medical equipment automatic camera intelligent monitor security equipment etc....
Mixed batch and OEM can be accepted!
