Home > Packaging & Printing > Packing Machinery > Laminating Machine > YFMB-540D Photo Laminating Machine
YFMB-540D Photo Laminating Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2016
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fully Automatic Laminator Hydraulic Heat Press Paper Laminating Machine YFMA-540NegotiableMOQ: 1 -
YFMA-920 Automatic Paperboard LaminatorNegotiableMOQ: 1
-
YFMA-920 Automatic Dry Method Thermal Film Lamination Machine PriceNegotiableMOQ: 1
-
YFMB-540 Semi-auto Aluminum Foil Double Side Specification Laminating MachineNegotiableMOQ: 1
-
YFMC-720A/920A/1100A Manual Hydraulic Paper Film Laminating MachineNegotiableMOQ: 1
Product Overview
YFMB-540 Semi-automatic Photo Laminating Machine
Applications
·pre-glued film / thermal film
Roller Diameter: 268mm or 320mm use on 950 model
·pre-glued film / thermal film
Roller Diameter: 268mm or 320mm use on 950 model
Semi-Automatic laminating Machine is suitable for producing business card, greeting card, this machine also can add foil stamping funtions or embossing.This machine is very functional. Price is competitive, low investment for the begining of enterpreneurs.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No |
Item |
Data |
1 |
Model |
YFMB-540 |
2 |
Max paper size |
540mm |
3 |
Min paper size |
210*270mm |
4 |
Paper weight |
105-500g/m2 |
5 |
Laminating speed |
0-25m/min |
6 |
Voltage |
380V |
7 |
Temperature |
Room-130oC |
8 |
Power |
9kw |
9 |
Total weight |
1000kg |
10 |
Overall dimension |
3000*1450*1650mm |
PRODUCT CONFIGURATION
·Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine' s speed easily and guarantee the machine' s running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
·The combination of air expansion shaft and braking device can adjust film release tension and speed.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge for the automatic cut of laminated paper.
·Anti-curvature device: when going through anti-curvature device, the laminated paper shall be leveled at once and wont curve again after cut.
·Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.
·The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.
·One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
·The combination of air expansion shaft and braking device can adjust film release tension and speed.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge for the automatic cut of laminated paper.
·Anti-curvature device: when going through anti-curvature device, the laminated paper shall be leveled at once and wont curve again after cut.
·Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.
·The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.
Pre-regulator System
Paper manual feedingAutomatic Overlap Paper

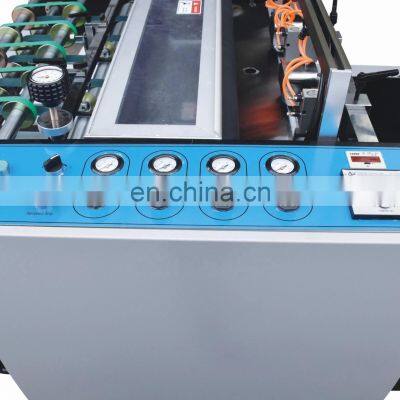

Operation Panel
According to paper thinkness or width, you can adjust through those switch to help machine work more stable.
Corrugated Delivery
Corrugated delivery system collects paper easily, Also before this we set a function avoid paper be curled.
Company Profile
Why Choose Us?
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Exhibition
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
