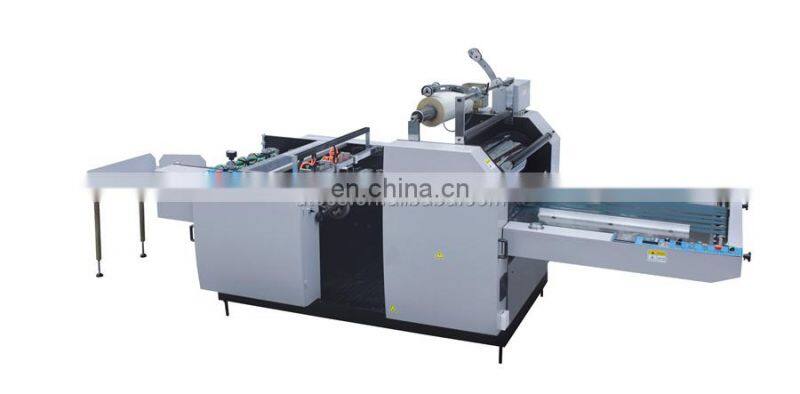

YFML920B Pre-glued Double Side Split Semi-Auto Thermal Laminating Machine, art paper Glueless Bopp pet opp pvc hot Laminator

YFML920B Pre-glued Double Side Split Semi-Auto Thermal Laminating Machine, art paper Glueless Bopp pet opp pvc hot Laminator

Features

1, Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine' s speed easily and guarantee the machine' s running stable.

2, One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.

3, Manual paper feeding.

4, Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.

5, High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.

6, Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.

7, Air expansion shaft releases film, and precisionizes film release,  and also makes the loading and unloading of film roll more convenient.

8, The combination of air expansion shaft and braking device can adjust film release tension and speed.

9, Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.

10, Film perforating wheel perforates film edge for the automatic cut of laminated paper.

11, Anti-curvature device: when going through anti-curvature device,  the laminated paper shall be leveled at once and wont curve again after cut.

12, Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.

13, The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.

Parameters:

 Automatic Overlap System

320mm Diameter Sized Heating Cylinder

 Perforating and Cutting Knife

Post-Perforating Knife

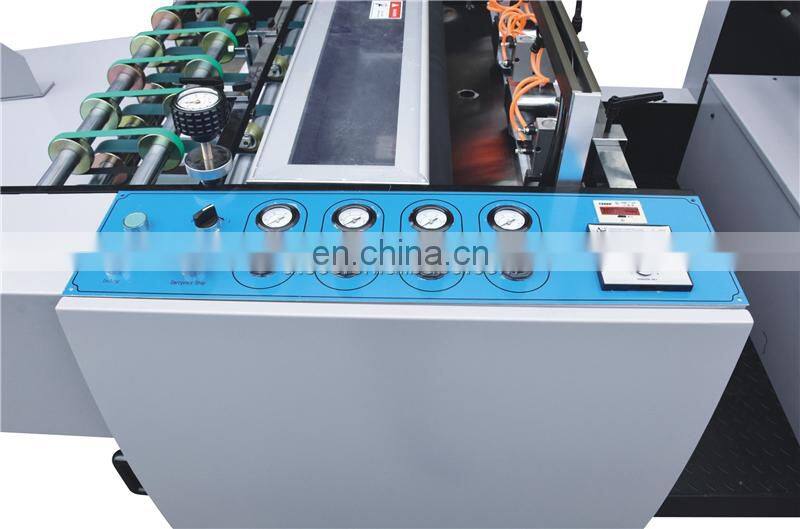

Post Control Panel for Easy Operation

Corrugated Delivery System for Easy Paper Collection
